• Model NO.：R12-D
• Automatic Grade：Automatic
• Installation：Vertical
• Name：Dual Track Hot Air Lead-Free Reflow Oven
• No. of Heating Zone：up 12 Bottom 12
• Length of Heating Zone：4640mm
• No. Cooling Zone：up 3 Bottom 3
• Max PCB Width：250mm*2(Single Lane 500mm)
• Conveyor Direction：Left to Right or Right to Left
• Conveyor Height：900+-20mm
• PCB Transmission Mode：Mesh + Chain
• PCB Clearance：Top 30mm Bottom 25mm
• Conveyor Speed Range：300-2000mm,Min
• Power Supply：380V or 220V
• Dimension：6200*1650*1550mm
• Transport Package：Vacuum and Plywood Case
• Specification：7400*1850*1750mm
• Trademark：Jaguar
• Origin：Shenzhen, China
• Production Capacity：30 Sets,Month
• Package size per unit product：640.00cm * 185.00cm * 175.00cm
• Gross weight per unit product：3000.000kg

UP3 BOTTOM3(Cool air conversion)Exhaust volume10m³/min x 2 exhaustsMax. Width of PCB250mmx2(Single lane 500mm)Conveyor directionL-R(R-L optional)Fiexed rail sideFront rail fixed (Option:rear rail fixed)Conveyor height900±20mmPCB transmission modeChain+mesh(Stainless strand chain)Components clearanceTop 30mm bottom 25mmConveyor speed range300~2000mm/minElectric supply3 phase, 380V 50/60Hz(Option:3 phase, 220V 50/60Hz)Startup power36kw42kw48kwNormal power consumptionApprox.:8-11KWApprox.:10-14KWApprox.:12-16KWWarming timeApprox. 35minTemp. Setting rangeRoom Temp.-300°cTemp. Control methodPID close loop control + SSR drivingTemp. Control precision±1°cTemp. Deviation on PCB±1.5°c(by JAGUAR board test standard)Data storageProcess data and status storage(80GB)Abnormal alarmAbnormal temperature(Extra-high/Extra-low temp.)Colow towerTower light:Yellow-warming, Green-Normal, Red-Abnormal
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

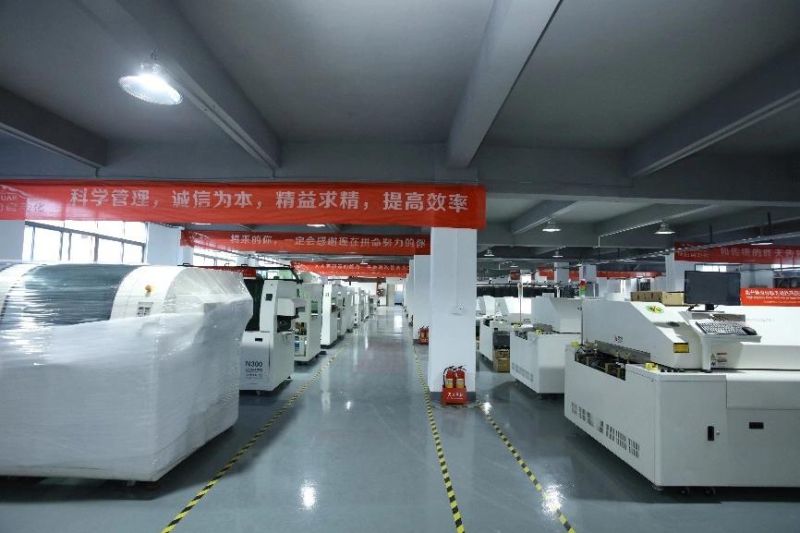

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC

Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

Customer and Feedback:

Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey

Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications

Packing and shipping:

What we can do for you?
1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT

Please contact me if you need any machine!
