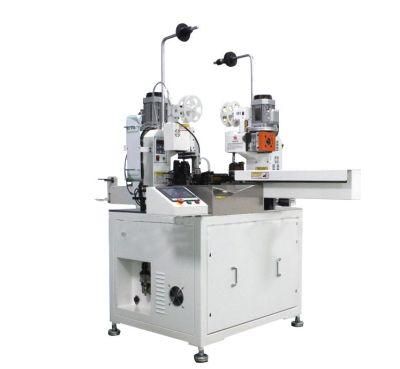

Double-End Terminal Crimping and Housing Connector Inserting Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Wl-Stcjk02

Base Info

  • Model NO.：WL-STCJK02
  • Power Supply：AC 220V
  • Maximum Power：Maximum Power
  • Air Pressure：0.4~0.6 MPa
  • Weight：1000kg
  • Dimensions：2400L*1500W*1850h (Excluding Wire Feeder and Vibra
  • Processing Range：AWG18-AWG28
  • Processing Length：950≥l≥90mm
  • Cutting Precision：0.5mm+ Cutting Length*0.2%
  • Crimping Capacity：1.5kn
  • Maximum Number of Pins：20 Holes in a Single Row, up to 3 Rows
  • Maximum Pin Color Number：8 Colors (More Colors Must Be Customized)
  • Housing Shell Size：Max:40*25*25 Min:5*6*3
  • Transport Package：Carton
  • Specification：cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：L=100mm, 2, 000-3, 000PCS,H

Description

MAX:40*25*25 MIN:5*6*3
This is a fully automatic cable double-end housing shell inserting machine. It is able to process of double-end cutting, stripping, terminal crimping and housing connector inserting.

  • Function: cable double-end cutting, stripping, terminal crimping and housing connector inserting.

  • 16 stations on both sides, independent synchronous cycle operation, can close any station independently, effectively improving production efficiency.

  • Independent double knife holder, convenient and quick to adjust the peeling depth.

  • The crimping machine adopts the HIWIN guide rail and digital crimping height adjustment.

  • Reversible defective product isolation method, 100% isolation of defective production.

  • Ultra-high efficiency, up to 6000 pcs/hour.





Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Double-End Terminal Crimping and Housing Connector Inserting Machine

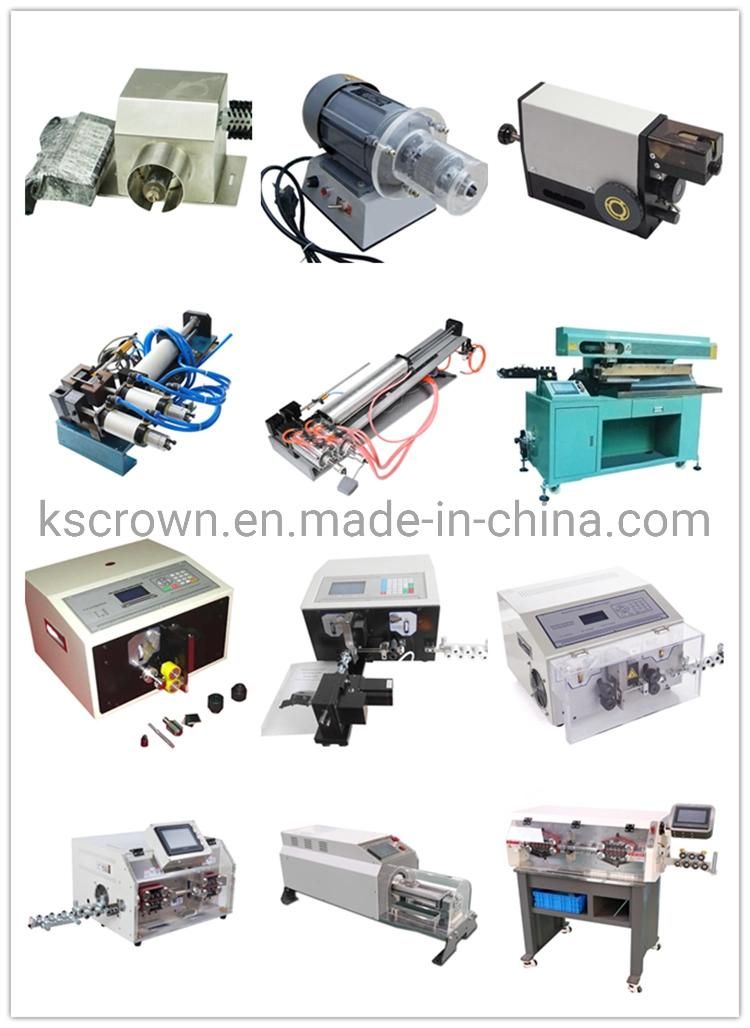

Related products:

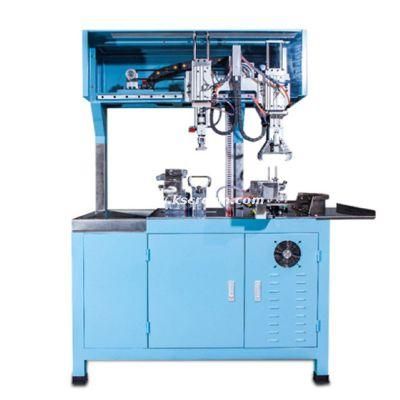

Double-End Terminal Crimping and Housing Connector Inserting Machine

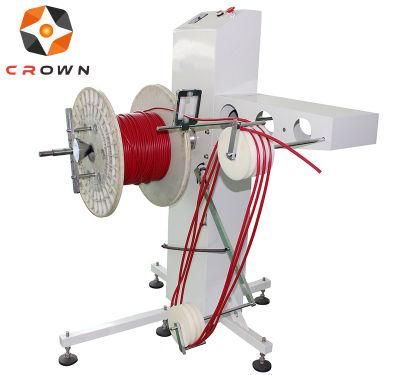

Double-End Terminal Crimping and Housing Connector Inserting Machine

FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.

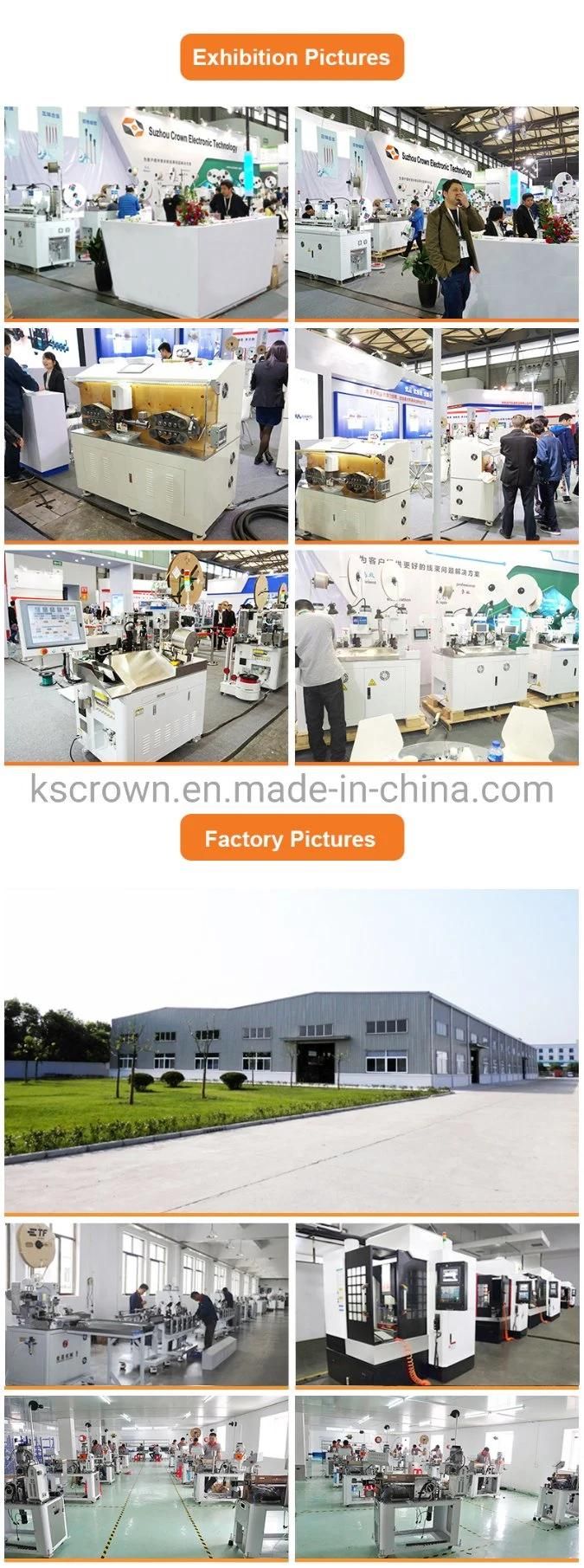

Company information:
