• Model NO.：Jaguar N450 wave solder machine
• Number of Heating Zones：4
• Length of Heating Zones：2000mm
• Air Supply：0.5MPa
• Preheating Style：Preheating Stylethot Air
• Preheating Consumption：220V 8kw
• Control Method：PC +PLC
• Range of Temp. Setpoint：Room Temperature---300ºC
• Preheating Time：About 10-15mins for Setting 150ºC
• Solder Application：Lead-Free , Sn-Pb
• Solder Pot Capacity：400kg
• Solder Pot Temperature：300ºC
• Heater Consumption：380V 8kw
• Transport Package：Wooden Box
• Specification：CE
• Trademark：Jaguar
• Origin：China
• HS Code：85151900
• Production Capacity：50sets,Month

Basic Info.

Model NO. Jaguar N450 wave solder machine Number of Heating Zones 4 Length of Heating Zones 2000mm Air Supply 0.5MPa Preheating Style Preheating Stylethot Air Preheating Consumption 220V 8kw Control Method PC +PLC Range of Temp. Setpoint Room Temperature---300ºC Preheating Time About 10-15mins for Setting 150ºC Solder Application Lead-Free / Sn-Pb Solder Pot Capacity 400kg Solder Pot Temperature 300ºC Heater Consumption 380V 8kw Transport Package Wooden Box Specification CE Trademark Jaguar Origin China HS Code 85151900 Production Capacity 50sets/Month

Product Description

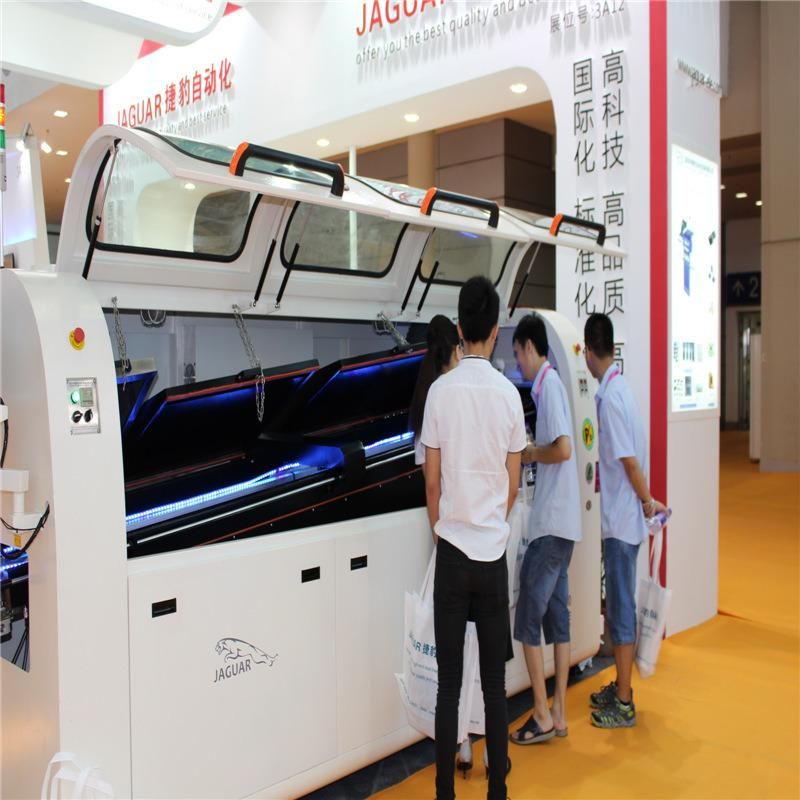

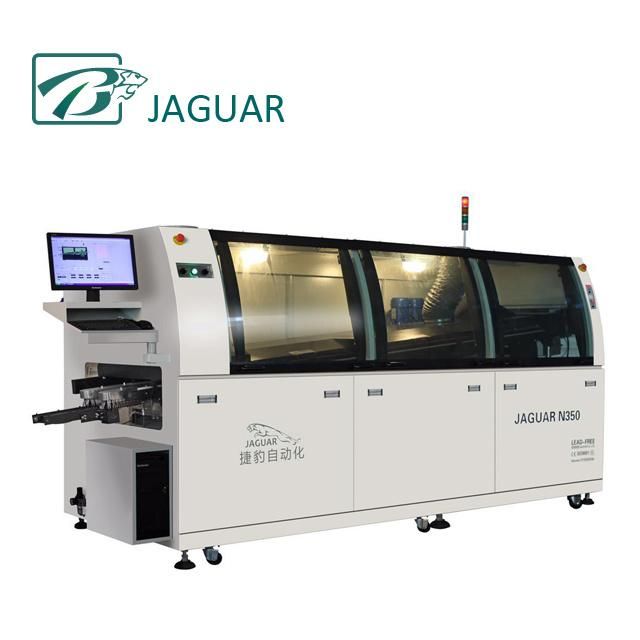

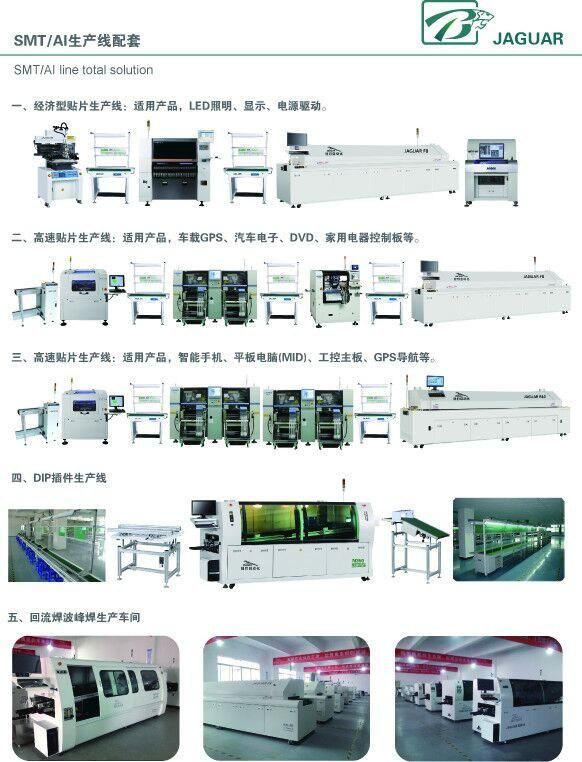

               Computerized lead-free dual wave soldering machine






INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.
4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.
8. PID close loop controlled hot air pre-heaters
9. Timer startup feature for solder pot, solder melted in within 90 minutes.
10. With black box memory function, the machine can always store the SPC data, improve work efficiency.
11. Automatic finger cleaner equipped.
12. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
13. Nitrogen Structure (optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 1000ppm.

Specification:


Model No.	JAGUAR N450
Number of heating zones	4
Length of heating zones	2000mm
Total/steady consumption	30KW/8-11KW
Air supply	0.5MPa
Preheating style	Hot air
Preheating consumption	220V 8KW
Control method	PC +PLC
Range of temp. setpoint	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder Application	Lead-free / Sn-Pb
Solder pot capacity	400KG
Solder pot temperature	300ºC
Solder pot material	Cast Iron Ceramic Coating/TA1 Titanium/316 Stainless Steel
Heater consumption	380V 8KW
Solder temp. control method	PID+SSR
Wave motor consumption	1KW 220V
Wave height Control	Inverter
Solder melting time	About 180mins for setting 250ºC
PCB width	60-450mm
Product clearance	Top 120mm(option 160mm) Bottom 15mm
Conveyor  speed	0-2000mm/min
Process height	750+/-20mm
Conveyor  direction	L→R (R→L optional)
Conveyor Inclination	4-7 º
Process width adjustment	Manual
UPS	Option
Nitrogen structure	Option
Flux pressure/capacity	3-5 bar/6.5L
Weight	1100KG
Power Requirement	3P5W,380/220V 50Hz 63A
Dimensions	4300(L)*1400(W)*1560(H)
