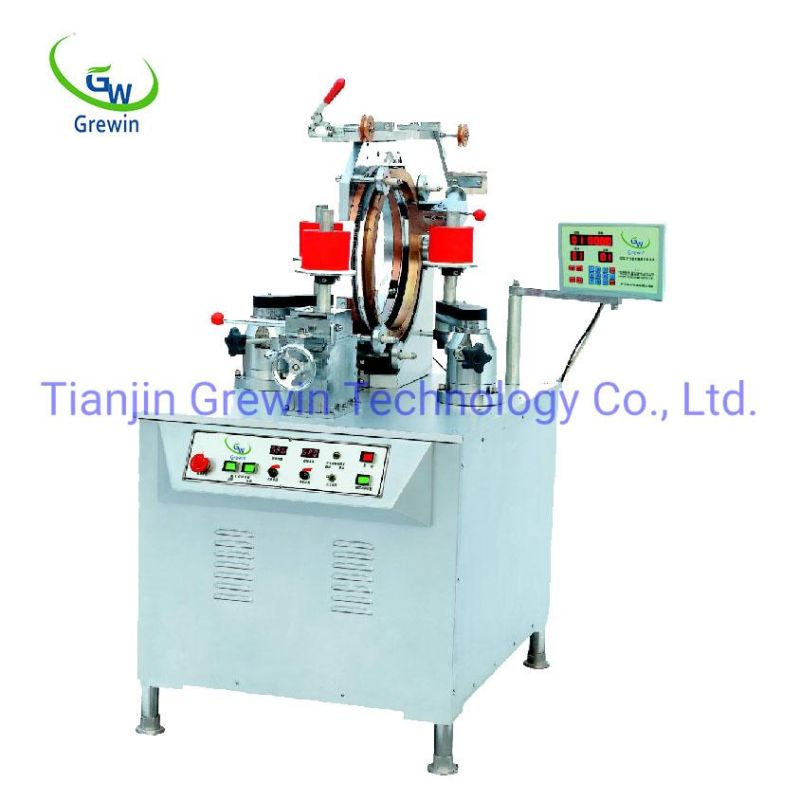

High Speed Automatic Coil Winder Winding Machine for Transformer
Tianjin Grewin Technology Co., Ltd.- Max.Final Coil.O.D：65-430, 55
- Min.Final Coil.I.D：45-385, 35
Base Info
- Model NO.：GWJ-0519
- Max.Finalcoil Height：60
- Controller Storage Capacity Programs：29 Sets
- Max.Winding Speed：200rpm
- Wire Spacing：Proportional Linkage
- Supply Voltage：AC 220V(50Hz)
- Mechanical Dimensions：1000*950*750
- Weight：100kg
- Certification：RoHS, CE, ISO
- Transport Package：Export Standard Carton or Customize Strong Pallet
- Specification：GWJ-0519
- Trademark：Grewin
- Origin：China
- HS Code：85043190
- Production Capacity：100PCS
Description
capacity Programs
(unit): mm
1.Environmental protection, low noise and high efficiency;
2.The storage capacity can be super large.
3.You can choose different row direction, winding angle and sectional angle.
4.Photoelectric induction switch technology has high accuracy and accurate number of rings.
5.Stepper motor wiring, spacing can be accurately controlled;
6.Products that can be tetragonal.

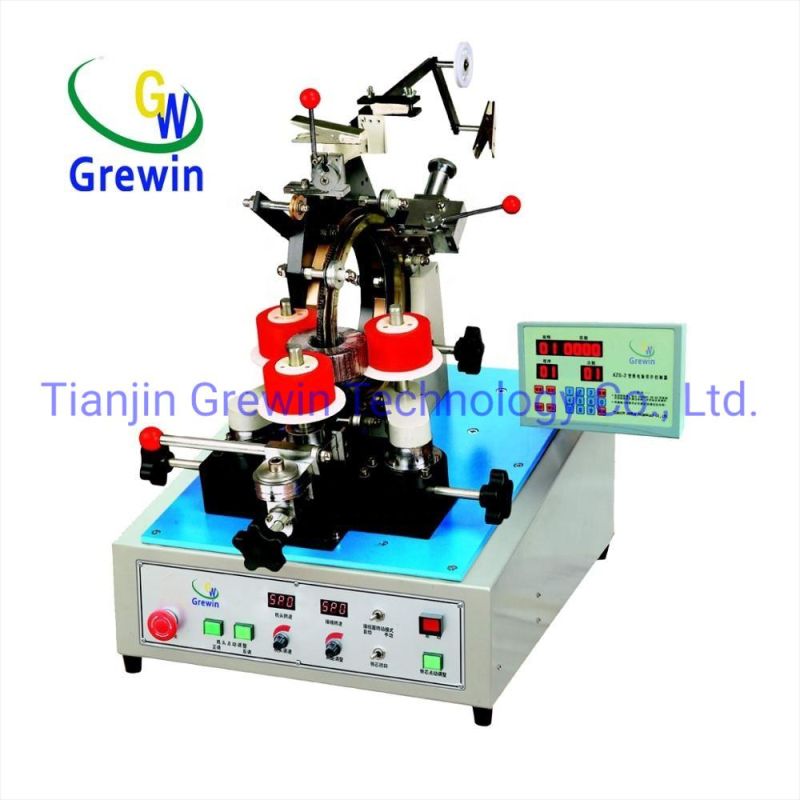

Application: Suitable for all kinds of rectangular type inductors, transformers, inductors, relay coils and so on.GWJ-0519 Series gear type Digital Automatic Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil, power inductors, power magnetics, UPS inductor with thick wire, converter inductors with thick wire, heavy toroidal core with heavy wire coils,etc.
Features
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. gear type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
Related Products
1.GWM-0319B Gear type toroidal coil winding machine
capacity Programs
(unit): mm
2.GWM-0719 Floor type toroidal coil winding machine
capacity Programs
(unit): mm
3.GW0950 Mobile rectangular coil winding machine
capacity Programs
(unit): mm
4.GWTM-0218 Gear type automatic wrapping insulating tape machine
capacity Programs
(unit): mm
Of course we have other models, please contact us if you need.
How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
Packaging & Shipping

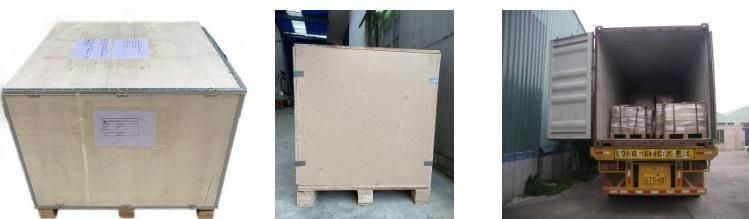

General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
