• Model NO.：HH-200,300MM

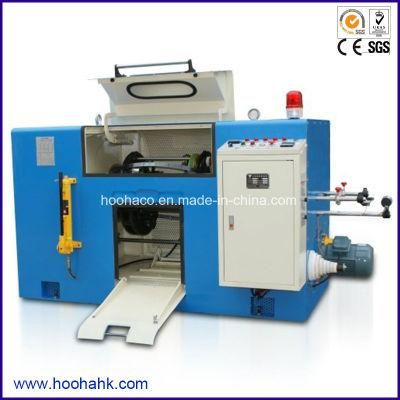

• Type：High-speed Stranding Machine
• Usage：Twisting
• Color：Customized
• Model Number：Hh-200
• Finished Wire Range：19-32AWG
• Twisting Section：0.0014-0.0035mm^2
• Diameter of Single Wire：0.016-0.08mm
• Twisting Distance：0.8-4.0mm
• Gross Weight：Max20kg
• Highest Axis Rotation Speed：5000rpm(10000t,Min)
• Twisting Direction：to Left or Right
• Machine Bearing：Main Bearing Made in Sweden, Others in Japan
• Power：3HP Controlled Inverter
• Noise Level：Approx 75dB
• Machine Dimension(mm)：(L)1800X(W)750X(H)850
• Net Weight：Approx 700kg
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：10 Sets,Month

Apply to twising of over 7 threads silver plated wire, tin plated wire, enamelled wire, naked copper wire, CCS, CCA etc or cored wire twistingFinished wire range19-32AWGTwisting section0.0014-0.0035mm^20.0137-0.45mm^2Diameter of single wire0.016-0.08mm0.05-0.16mmTwisting distance0.8-4.0mm1.6mm-17.1mmGross weightMax 20kgMax30kgHighest axis rotation speed5000rpm(10000t/min)3000rpm(6000t/min)Twisting directionto left or rightTraversingPolish rod traverse unit, pitch & throw adjustableTaking-up tensionTension adjustable, pulled wire no deformationAuto-stop machine1, automatic brake in case of broken wire interon or extenior
2, automatic meter counting, and automatic brake when it reaches the meter.Machine using bearingMain bearing made in Sweden, others in JapanPower3HP controlled inverter5HP controlled inverterNoise levelApprox 75dBMachine Dimension(mm)(L)1800X(W)750X(H)850(L)1900X(W)750X(H)950Net WeightApprox700kgApprox850kg




3, Professional Engineers and Experienced Sales Team
 Team of HOOHA serviceNameEducationPositionMainly responsible for projectSpecializing in projectIndustry working history    ( year )Zanyang XiecollegeGeneral EngineerThe total project design and planningpower cable machine15Xiaohua HucollegeVis general engineerThe total project design and planningnet cable,data cable machine10Changhong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25Xiuwu ChencollegeGeneral EngineerThe total project design and planningcopper drawing machine15Lixin YuancollegeEngineerThe project design and planningcoppwer wire making technical16Zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15Jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7Xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10Changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10Haipin LiUniversityEngineering directorMarketing and salesproject consulting8Sen YangUniversityEngineering translatorMarketing and salesproject consulting5

4.After-sales Service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: plastic packing ensure the goods' safety during the transportation.
4).Electrical engineers(10), mechanical engineers(8), software engineers(5). They all have over 10-year experience


5.Contact information:


Web: http//:hoohaco.en.made-in-china.com
         http://hoohaco.en.made-in-china.com/
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


6.Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes


7. Advantages:
