Cable Machine - Planetary Type Stranding Machine

Hejian Bao Hong Electrical Machinery Co., Ltd.
  • After-sales Service：One Year Warranty
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Mould Life：>1,000,000 Shots
  • Type：To Back Stranding Machine
  • Material：Metal
  • Colour：as Required
  • Wire Diameter Specification：1.5-4.0mm
  • Cage Speed：80-106 Rpm
  • Stranding Pitch：79-1075 mm
  • Traction Wheel Diameter：2000 mm
  • Pay-off Bobbin in Cage：Pnd 500
  • Central Pay-off Bobbin：Pnd 50
  • Take-up Bobbin：Pn1250-Pn2500
  • Central Height：1000 mm
  • Transport Package：Seaworthy Packing
  • Specification：500 , 1+6+12+18
  • Trademark：BH
  • Origin：Hejian, Hebei, China
  • HS Code：8479400000
  • Production Capacity：15 Sets,Month

Description

Specification400/12+18+24500/6+12+18500/12+18+24630/12+18+24Dia. of single wire (mm)copper1.5-5.0aluminium1.8-5.0steel1.2-3.0Production dia. (mm)453545Stranding cage speed (rpm)35-8824-60Stranding pitch (mm)53.4-105778-1541Diameter of wheel haul-off (mm)18002000Production speed (m/min)4.7-37Size of take-up reel (mm)PN2000PN2500
5.Photos

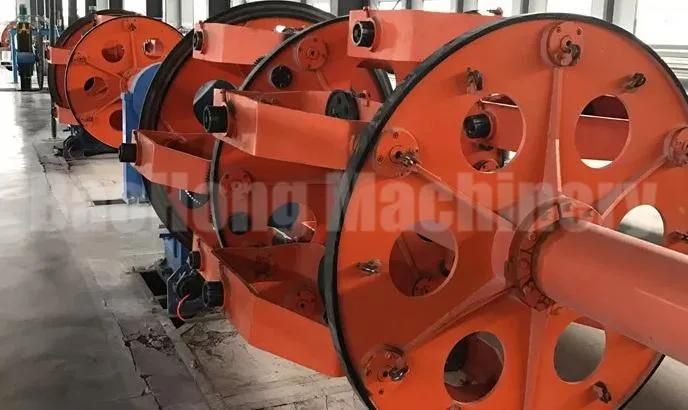

Cable Machine - Planetary Type Stranding Machine

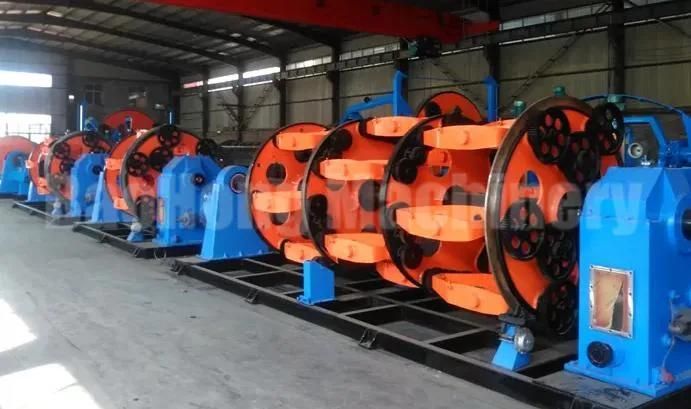

Cable Machine - Planetary Type Stranding Machine

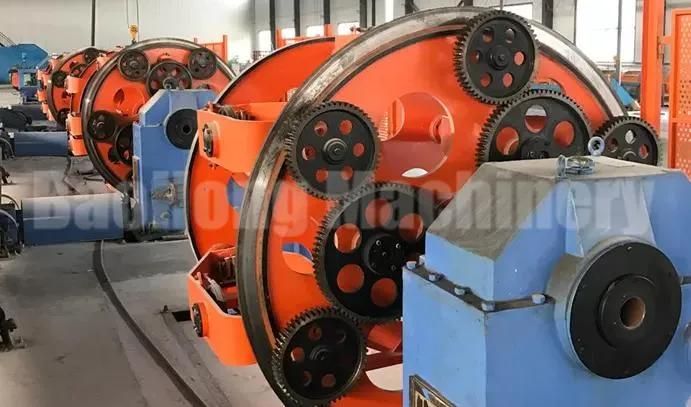

Cable Machine - Planetary Type Stranding Machine

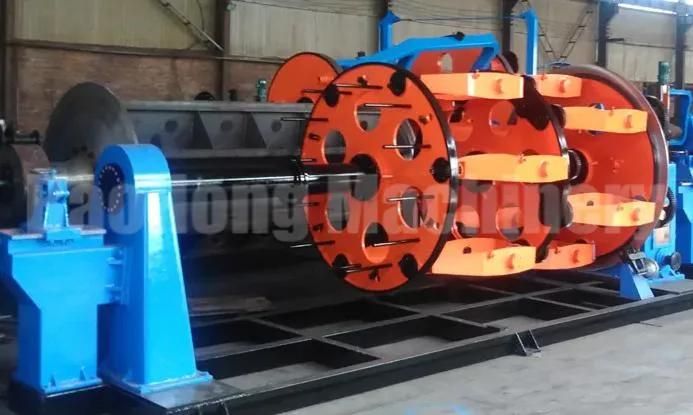

Cable Machine - Planetary Type Stranding Machine
