• Model NO.：SR-P100
• Origin：China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. SR-P100 Origin China Production Capacity 100 Sets/Month

Product Description

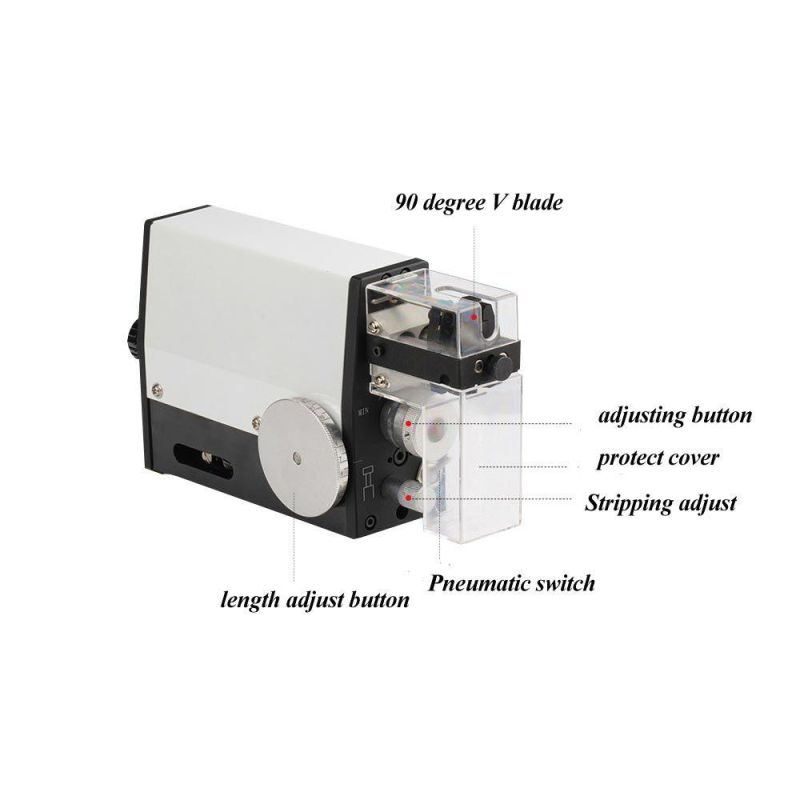

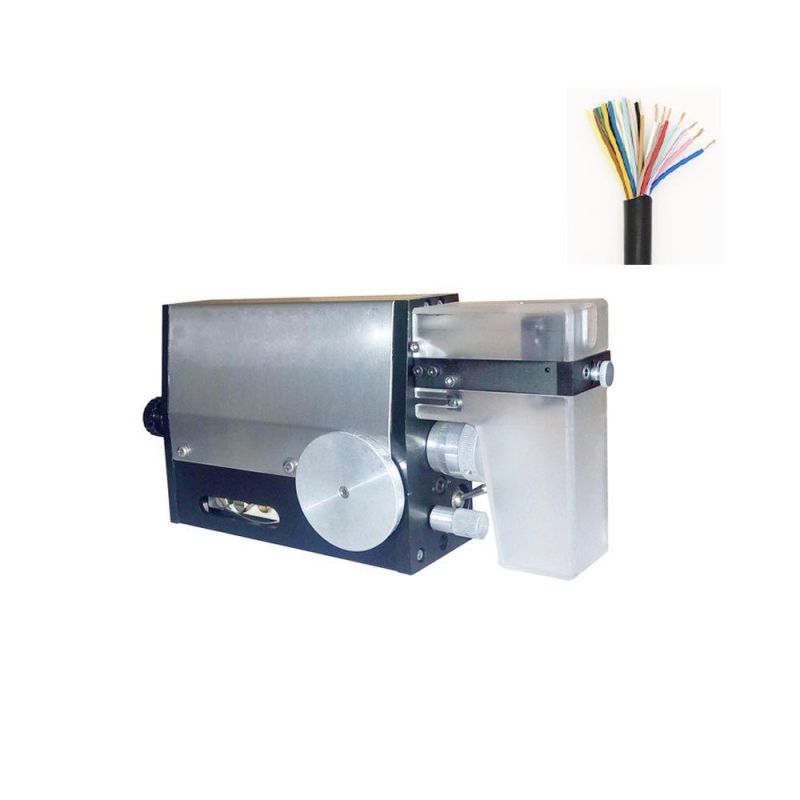

precision Pneumatic Power Wire Stripping peeling stripper peeler Machine

1. Use conditions and scope

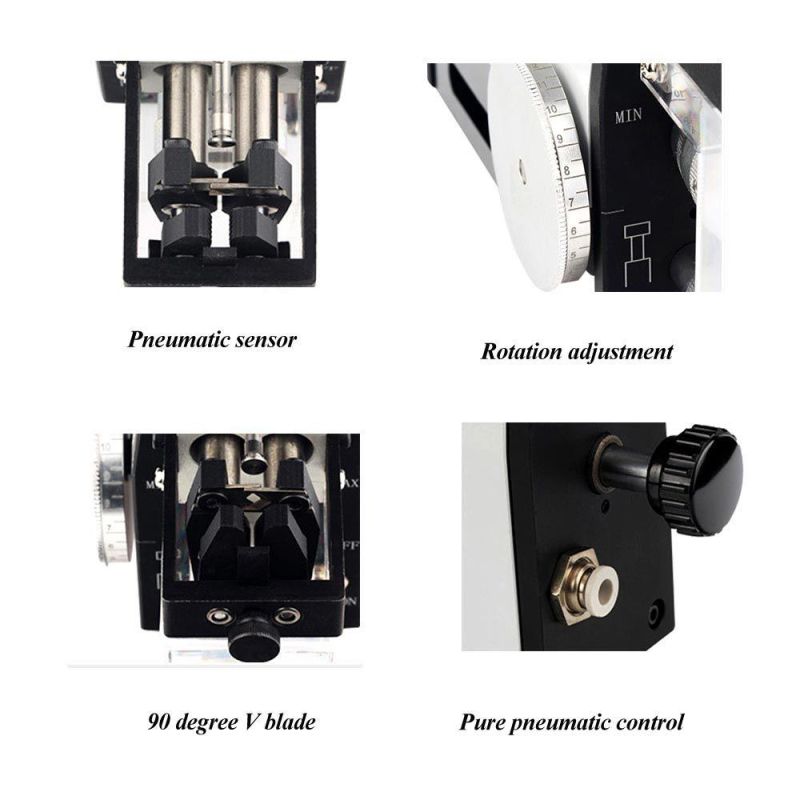

The working air pressure must not be lower than 0.5Mpa, the working temperature is about 15°C, the pneumatic induction type triggers the start, the tangent range is 0.3~2.03 square (soft wire skin can reach 4 square, the air pressure must be greater than 0.6Mpa), the adjustment method is knob, The length is adjustable from 1.5-20mm, the wire diameter is adjustable from 0.3-2.03, and the length of the half-stripped glue is adjustable. The main features of the machine are high precision, high efficiency and fast payback period, pure gas does not need electricity, safe, energy-saving and environmentally friendly
Applicable wire types
• Loose wires, solid core wires, single stranded wires, single core cables, wires, cables, rubber wires, PUR PVC Teflon®

Cable cross section	0.03 - 2.08 mm² (32 - 14 AWG)
Maximum cable diameter	3.2 mm (0.12")
Peeling processing accuracy	Complete peeling: 0.5 mm (0.019") Partial peeling: 2 mm (0.078")
Diameter setting accuracy	0.01 mm (0.001")
Maximum stripping length	20 mm
Processing time	About 0.3 s
Dimensions (L*W*H)	265 x 70 x 135 mm (10.4" x 2.8" x 5.3")
Weight	Net weight: 2.0 kg (4.4 lbs.) Gross weight:2.4 kg (5.3 lbs.)
Air pressure	0.55Mpa-0.8Mpa
