• Model NO.：HA-70,80,90
• Motor：Siemens
• Inventor：LG, Siemens
• Process Speed：Max: 500m,Min
• Main Power：30HP, 40HP, 50HP
• Extrusion Capacity：140kg,H, 200kg,H, 250kg,H
• Bobbin Size：400-630mm, 630-800mm
• Transport Package：Plastic Packing
• Specification：L: 22- 26 m
• Trademark：HOOHA
• Origin：Dongguan, China
• HS Code：8479400000
• Production Capacity：7 Sets,Month

ActivePay off bobbin size(mm)Φ400-630Φ400-630Φ630-800Insulation diameter(mm)Φ0.5-122-20Φ3-25Extrusion capacity(kg/h)140200250Main machine power(hp)304050Take up-motor power(hp)555Wire accumulate length(mm)200Take-up line typeDouble axis 3hp

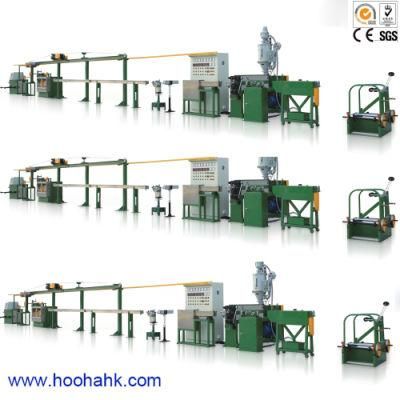

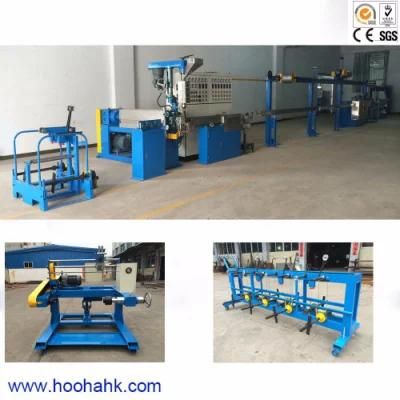

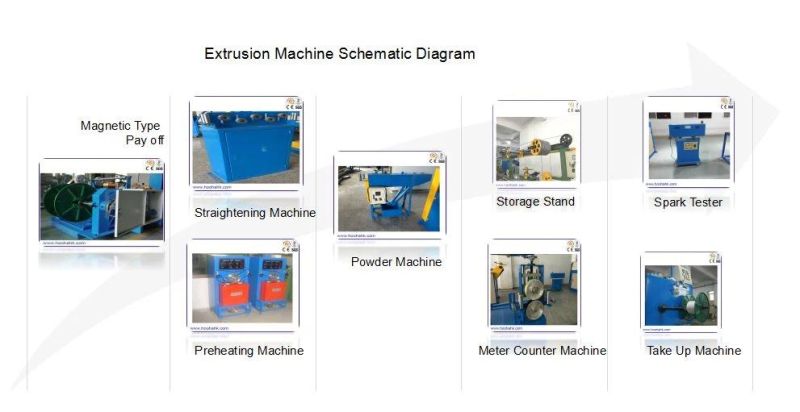

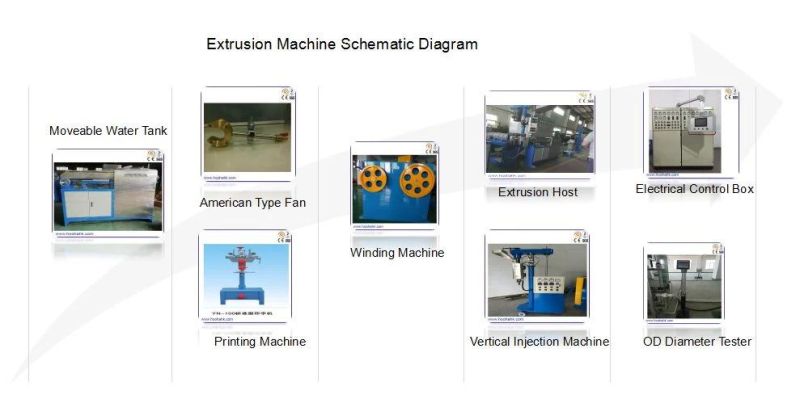

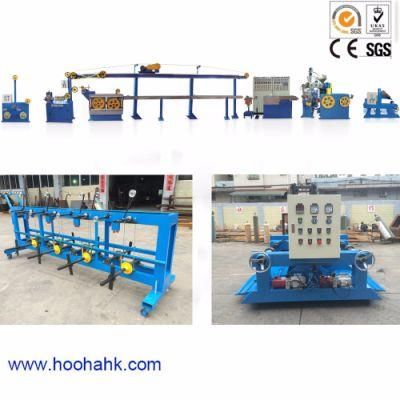

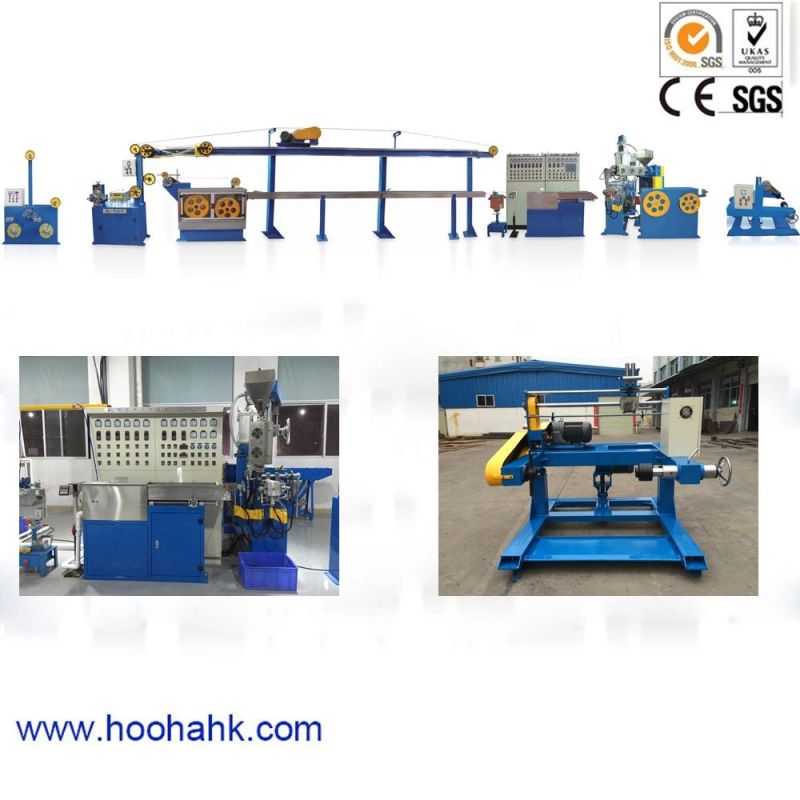

Consisting Components:

1,double-shaft pay-off rack
2,straightener platform
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine



Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF


Technique Specifications:

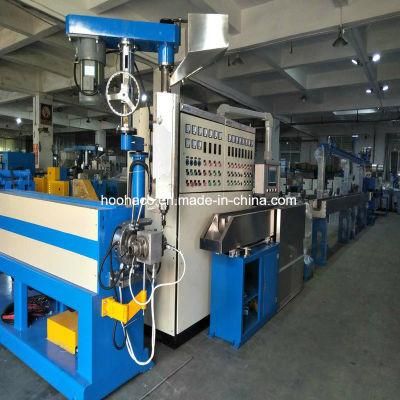

PVC Extruded Building Wire Machine is high speed extrusion line. And it makes the PVC, XLPE plastic compound for insulating and sheathing power cable, communication cable, magnetic wire, and so on.

One and two extruders: skin/stripe process
Co-extrusion: simultaneously filling and sheathing
Tandem extrusion: two extrusion groups, one for filling and one for sheathing
Three extruders : skin/stripe quick colour change

Salient Features:

1.Quick stripe/skin colour change system
2.Taiwan design screw,insulation of high speed conductors with various thermoplastic materials
3.Multi-pass compartment and integrate motorization keep you Reduced line volume and high cooling capacity
4.take-up solutions on reels or coils
5.extrusion line with coiler online
6.high efficient pay-off to make sure operation non-stop
7.The mobile Extruder fixed to the ground and could easily be changed for any line direction.
8.PLC+Professional numerical control software, industrial computerized operation,Store,display & revise the technical parameters,wholly controlling,adjusting and monitoring the state of the producing.

Safety Matters:

Switch-off at overpressure
Disabling signal at under temperatures
Stop at over temperature
Motor power limit
Emergency stop
Monitoring of tolerances and alarms
Monitoring of sensors
 HOOHA   Performance tableItemConductor sectionInsalution thicknessCable diameterProduction speedUnitemm2mmmmm/minkm/hr10.750.62.345027210.62.54502731.50.62.84502742.50.73.245027540.83.937022660.84.43201971015.72501582 X 1.51.27.61307.893 X 2.51.29.21106.6104 X 41.211.5905.4114 X 61.212.5804.8
Optional:

1.Different take-up machine etc.
2.Flyer pay-off or other pay off machine.
3.Taiwan or Swiss brand crosshead.
4.Copper pre-heater.
5.Talc applicator.
6.Different brand Laser diameter gauge.
7.Coiler on line

After Service:

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

Contact Information:




Http:hoohaco.en.made-in-china.com
http:hoohaco.en.made-in-china.com
Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.


Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes


Why Choose us?

1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Install and training service.Guarantee overseas install and cable manufacture training experience.
6.Technical support and spare parts service.
7.Several years overeas experience
