• Model NO.：WL-SE3
• Type：Pointer
• Stroke：50mm
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000

Basic Info.

Model NO. WL-SE3 Type Pointer Stroke 50mm Transport Package Wooden Case Package Specification 600x185x280 mm Trademark Dimension Origin Kunshan City HS Code 8479811000 Production Capacity 10000

Product Description

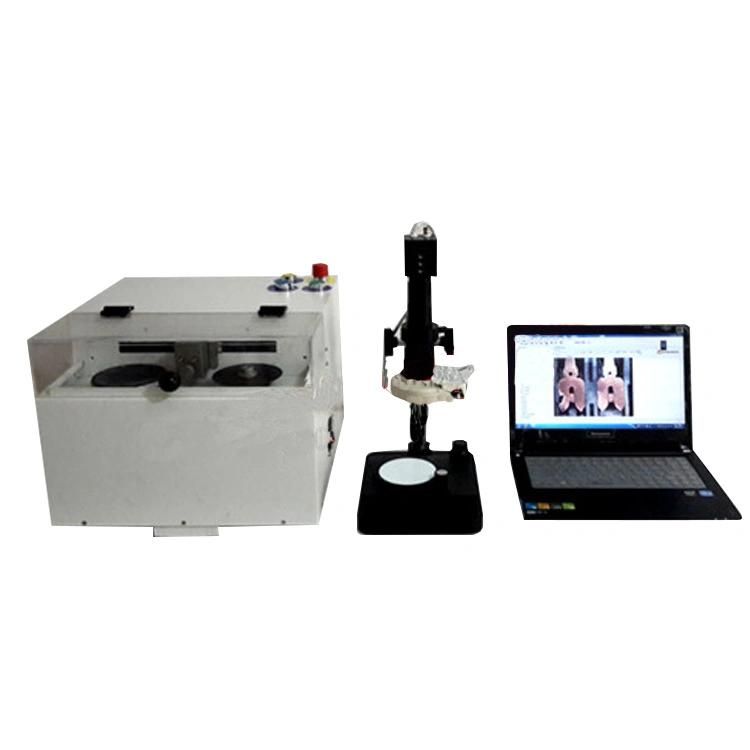

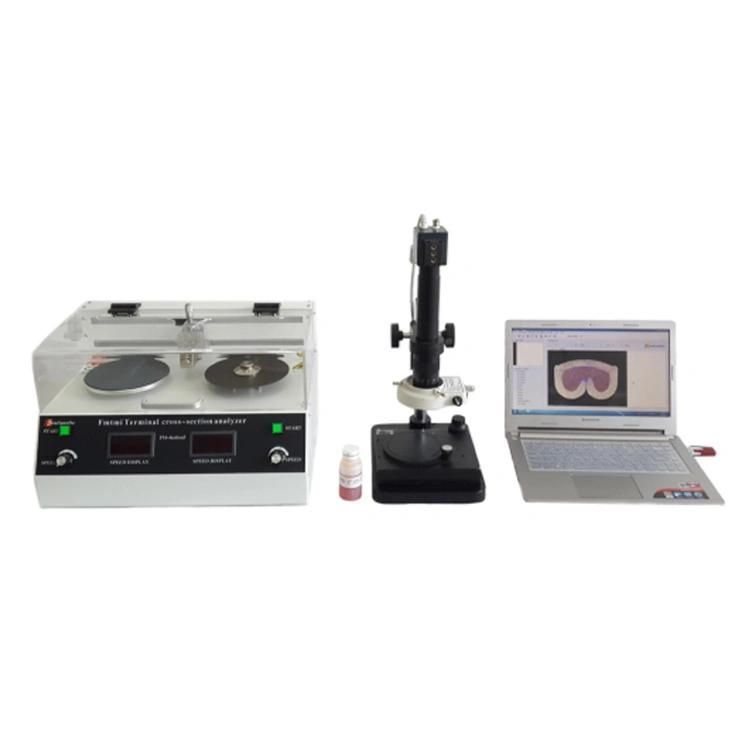

WL-SE3 benchtop terminal cross section analysis instrument
Usage:


Terminal cross section analysis	Japan imported segmentless zoom optical system
Total video magnification	30~312X
Applivable wire range	0.01~33mm2
Power supply	100~240VAC, 50/60Hz
Imaging system	Japanese industrial HD video system 5 million
Cut blade specifications	Φ150X0.5mm(Imported from Germany, delicate and durable)
Abrasive sandpaper	1200#
Standard fixture	0.01-33mm2
High-precision reference ruler	0.01/10mm
Terminal corrosion	Liquid cleaning (5S completed)
Lighting source	All white adjustable LED lighting device
Dimensions	W500XD350XH350
Feature	Precision integrated automatic cutting and grinding equipment,German motor 0~4000rpm stepless speed regulation, professional terminal cross section analysis software Section-MS with encryption lock and CD

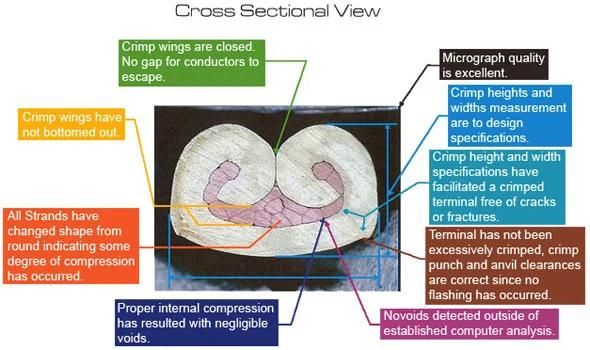

• Mainly used for cross section testing of terminal after crimping

• Exquisite and portable in structure design, and easy to operate

• High quality optical instrument with low distortion and image capture module

• Optical instrument with safety protection device, and easy for transportation

• Automatic cutting module, with high-speed grinding module with fine adjustment

• Testing result is automatically generated from the relevant software
