• Model NO.：BZW-882DK-120
• Power Supply：AC220V,50Hz
• Motor Power：5 Servo Motors, 750W
• Cutting Length：400-100000mm
• Cutting Tolerance：± (0.2±0.002 X L) mm
• Stripping Length：0.1-200mm
• Precision：High Precision
• Function：High Temperature Resistance
• Mould Life：300,000-1,000,000 Shots
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Bozhiwang
• Origin：Changzhou, China
• HS Code：8479899990
• Production Capacity：50000 PCS,Year

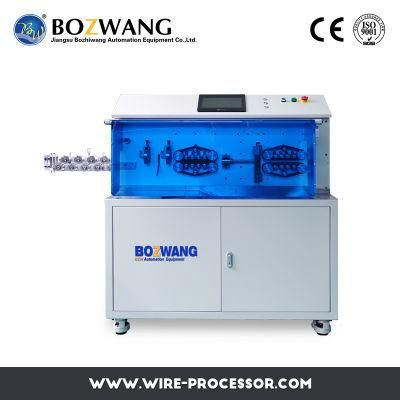

BZW-882DK-120 Computerized cutting and stripping machine for 120 mm2 cable

1.New mode cable processing equipment that controlled by micro computer, especially for processing the high voltage power cable in the industry of new energy motor, power charging station, electronic control, BMC and etc, which essentially solves the problem in processing the big power cable;

2.Automatic wire cutting, two ends stripping, multi-layers stripping at the same time;

3.Industrial level control chip and high precise servo drivingto ensure its high speed and stable running;

4.PLC control system, touching screen operating;

5.Automatic wire diameter adjusting,different power cable doesn't need to change the cutting tools;

6.Belt style driving without any pressing marks ;

7.The cable (within 120 mm²) can be easily processed , the strong driving force ensures the high working efficiency.

 TECHNICAL PARAMETER

Cross section	6-120mm2 (Other size can be special ordered)
Cutting length	10-99999.99mm
Cutting precision	≤0.2%mm
Stripping length	wire head 1-260mm, wire end 1-120mm
Drive	8 wheels independently servo driven
Capacity	500-900 pcs/h (it depends on the length of the wire)
Power	220V  50HZ
Motor	2.3KW
Stored procedure	0-99 kinds of processing data
Tool materials	Imported high speed steel
Nozzle diameter	Φ6-28mm
Press wheel setting	Motor drive, digital control of crimping force
Stripping layer	3 layer
Weight	445kg
Dimension	1300x800x1330mm

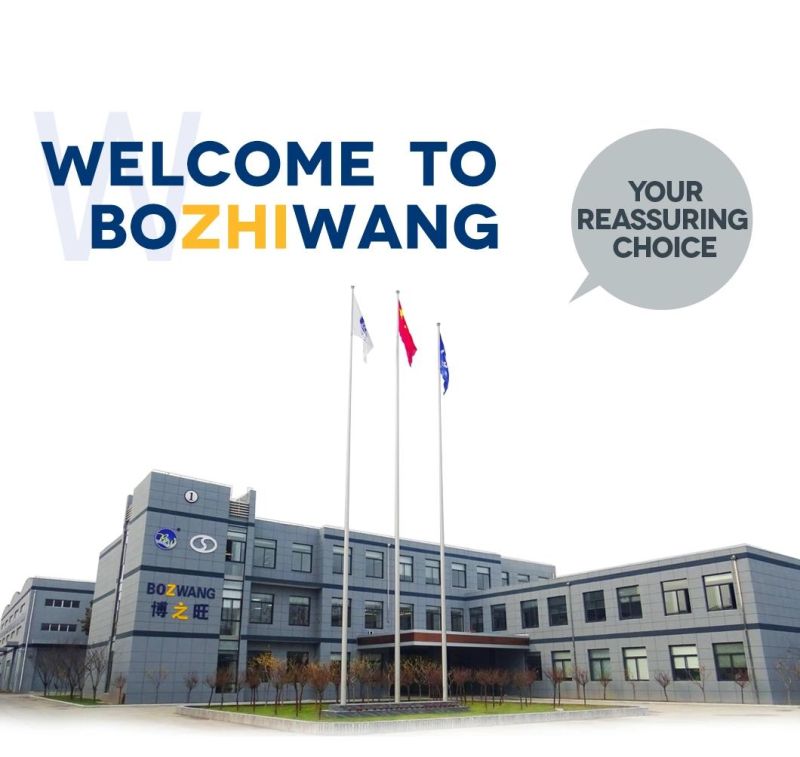

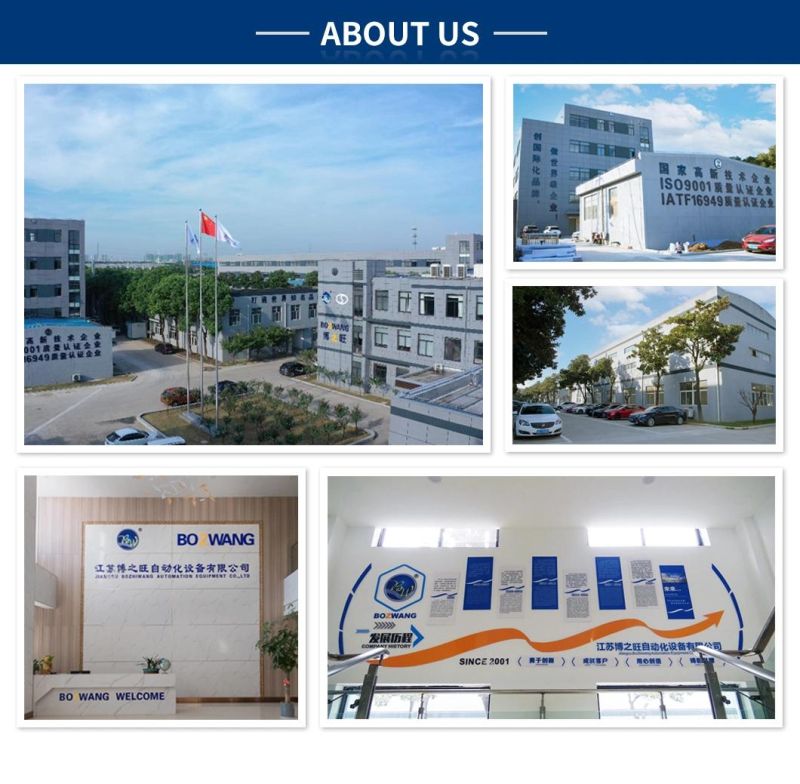

      Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a large-scale intelligent wire processing equipment manufacturer in China,located in the center of the beautiful and rich Yangtze River Delta---China's famous industrial equipment manufacturing base Changzhou City, Jiangsu Province.

      The company covers an area of 40,000 square meters and a building area of 45,000 square meters with more than 400 employees,including more than 300 outstanding technicians. The company has successively passed ISO9001, QS-9000, CE certification, TUV certification, and developed a number of products with independent intellectual property rights, and obtained more than 60 invention patents, more than 100 utility model patents and 100 new appearance patents, the technology and comprehensive strength of product research and development ranks the top among the nationwide.

      In the production process, the company strictly follows the ISO:9001 quality standard for daily production and management. It mainly focuses on the automotive, photovoltaic and new energy industries and has developed and produced a series of automatic processing equipment with
high quality, stable performance and high efficiency.

      Mainly include automotive wiring harness/HSD/FAKRA radio frequency wire harness/new energy wiring harness and other related semi-automatic and fully automatic intelligent production lines, automatic double ends terminal machine with seal inserting, automatic ribbon cable terminal machine, automatic single-double-end terminal crimping machine, automatic wire stripping machine,JB box automation equipment, new energy automation equipment, and a complete set of equipment series for various semi-automatic wire harness processing. With the increasing annual output of the company, it has reached an annual output of more than 20,000 sets of intelligent assembly lines and various wire harness processing equipment, and the production equipment has the characteristics of high precision, high degree of automation, and strong supporting performance of the whole machine.
