• Model NO.：XJ-45MM,65MM,90MM,115MM
• Customized：Customized
• Motor Brand：Siemens
• Inverter Brand：Yaskawa or Inovance
• Bearing Brand：NSK
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-45MM/65MM/90MM/115MM Customized Customized Motor Brand Siemens Inverter Brand Yaskawa or Inovance Bearing Brand NSK Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

HIGH TEMPERATURE SILICONE CABLE EXTRUSION MACHINE1.Application:
   Suitable for extrusion production of various high temperature silicone wire&cable.
2. Technical Parameters:

Model	XJ-45	XJ-65	XJ-90	XJ-115
Main power	10HP	20HP	30HP	50HP
Extrusion capacity	30kg/H	60kg/H	150kg/H	250kg/H
Screw diameter	Φ45mm	Φ65mm	Φ90mm	Φ115mm
Screw L/D	14:1	14:1	14:1	14:1
Pay-off bobbin	Φ300-400mm	Φ400-630mm	Φ1000-1250mm	Φ1250-1600mm
Inlet wire diameter	Φ0.2 -3.0mm	Φ0.3 - 5.0mm	Φ1.0 - 20mm	Φ3.0 - 45mm
Finished diameter	Φ0.8 - 5.0mm	Φ1.8 - 8.0mm	Φ3.0 - 20mm	Φ6.0 - 55mm
Vulcanize length	12M	16M	24M	28M
Heating power	6 Zones  32kw	6 Zones  32kw	8 Zones  42kw	10 Zones  54kw
Capstan power	3 KW	4 KW	7.5 KW	11 KW
Line speed	6-80M/min	6-80M/min	4-40M/min	4-40M/min
Take-up bobbin	Φ400-500mm	Φ400-630mm	Φ1250-1600mm	Φ1250-1600mm

3.Machine advantages:1) PLC+Touching screw operation, complete control, adjustment and monitoring production process parameters;
2) Special silicone screw, barrel, crosshead and dies with anti-vulcanized structure;
3) Special silicone automatic centering crosshead and automatic or manual cooling system;
4) Equip with precision testing feedback system to ensure OD precision, so as to reduce to the costs.

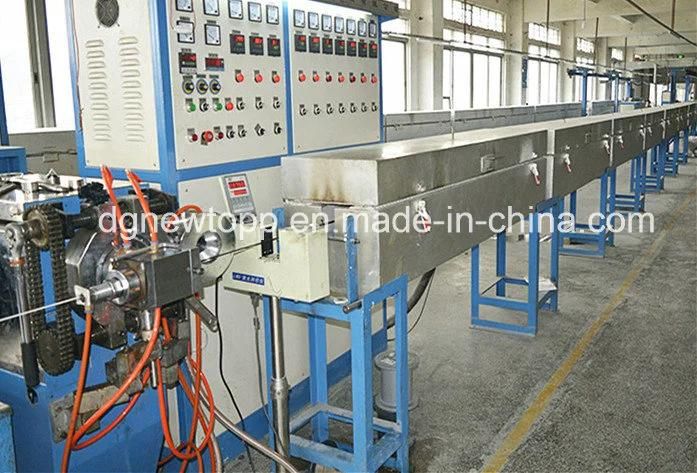

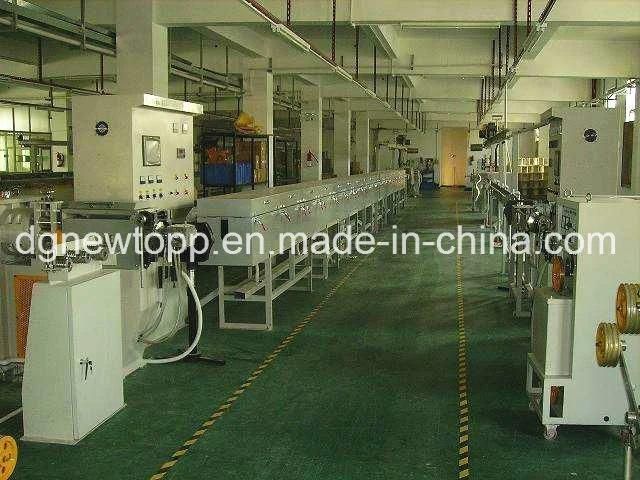

4.Machine pictures:

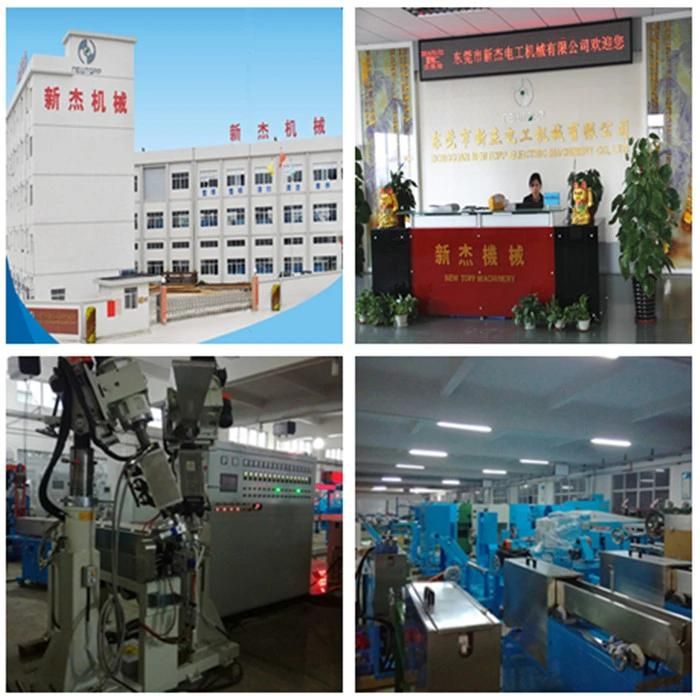

5. Abuot us:Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding/twisting machine, planetary cage type twisting machine, triple-core stranding machine with back-twist, single/double layer wrapping/taping machine and so on; Our products have passed CE certification and SGS audited , and our factory have passed ISO9001 quality management system certification and ISO14001 environmental sytem certification.

6. Certificates of Patent and Honor:
7. Shipment scenes:


8. FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machinery ; our machines are exported to different countries, such as Italy, Russia, Iran, Japan, India, Korea,Thailand, Malaysia, Vietnam etc, and have received recognition and praise from customers.
2) How can we get to your factory to see the machines?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
                                    Sales engineer: Mr. David hou
