Aramid Armouring Machine for Fiber Optical Cable, Automatic Special Cable Armor Cable Machine?
Alpha Technical Industrial Co., Ltd.- Driven Type：Pneumatic
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：18 Months
- Product Name：Aramid Armouring Machine for Fiber Optical Cable
- Strand Material：Aramid Yarn, Glass Yarn, Water Blocking Yarn.
Base Info
- Model NO.：ALPHA
- Winch Speed：100rpm
- Aramid off Tension Adjustment Range：4-20n
- Aramid Tension Control Mode：Magnetic Remanence Brake
- Main Motor：7.5kw Variable Frequency Motor
- Controller：Danfoss FC302
- Center Height：1000mm
- Max Cable Diameter：5-30mm
- Stranding Direction：Left or Right
- Operation Direction：From Right to Left
- Yarn Specification：290X 94X 290mm
- Color：Can Be Customized
- Transport Package：Standard Seaworthy Package
- Specification：ISO9001
- Trademark：HLT
- Origin：Jiangsu, China
- HS Code：8479400000
- Production Capacity：1000 Sets Per Year
Description
Main Technical ParameterAramid yarn group head 12 or 24 heads Winch speed 100rpm Aramid off tension adjustment range 4-20N Center height 1000mm Yarn specification 290x 94x 290mm Max cable diameter 5-30mm Strand material Aramid yarn, glass yarn, water blocking yarn Stranding direction Left or right Operation direction from right to left Aramid tension control mode Magnetic remanence brake Main motor 7.5kw variable frequency motor Controller Danfoss FC302
Aramid machine transmission system consists of motor, reducer, timing belt pulleys and other components,transmission power is transmitted to the stranding body, making the body twist around the centre tube.
Stranding pitch is adjusted via level moving within a certain range. Pneumatic brakes installed on the strander, for purpose of shutdown or accident.
Electrical control part adopts PLC to establish communication with other devices, single-action, interaction and synchronization.
Security guard prevents accidents during aramid machine at high speed.

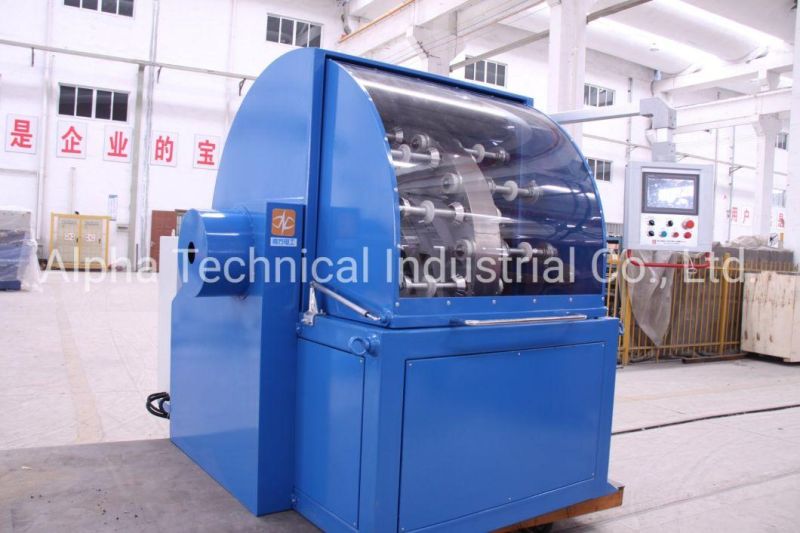

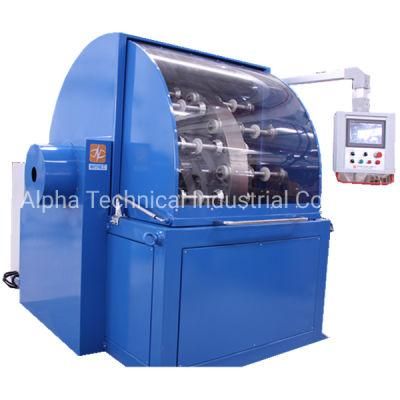

Aramid Armouring Machine
Aramid Armouring Machine

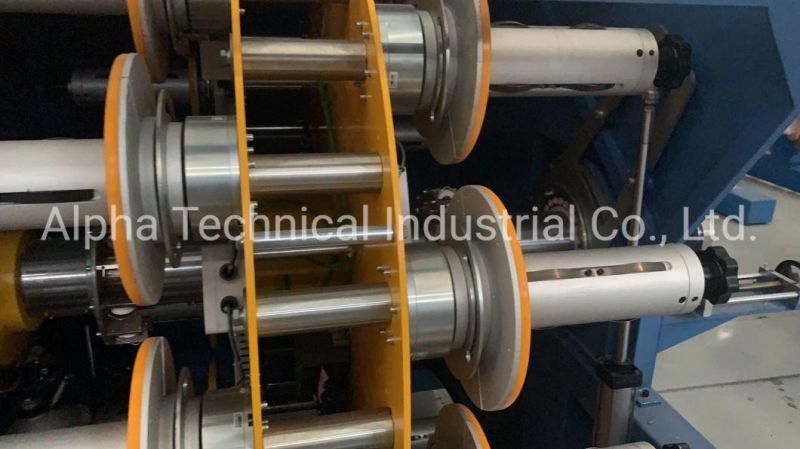

Machine Detail Picture

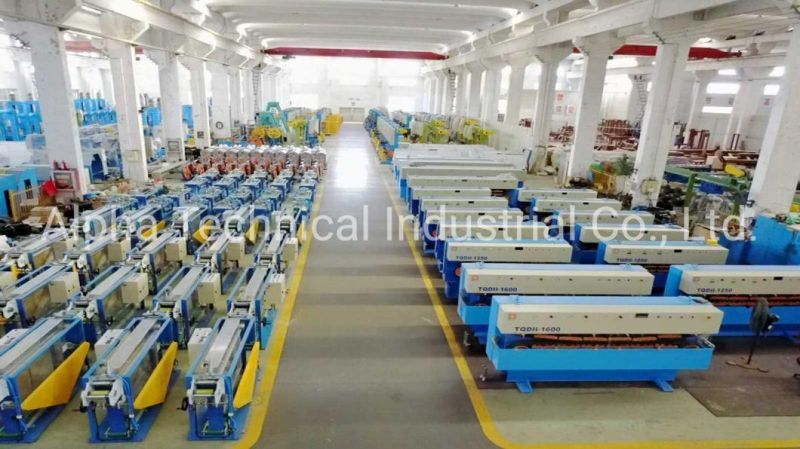

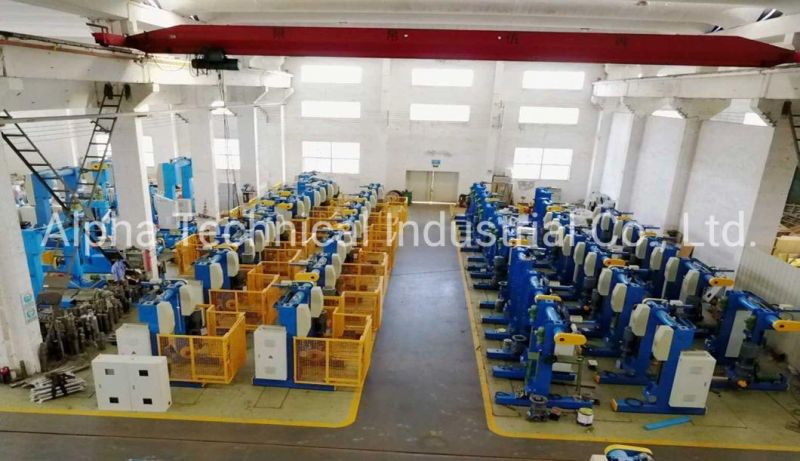

Our Factory
Package
Customer Visiting
Customer Visiting
Our Team
FAQ
-Q:What is aramid machine?
A: Aramid machine is used for armoring wire and cable equipment. For armoring non-metallic materials. such as : aramid yarn, glass yarn, water blocking yarn.
-Q. What is consist of for Aramid machine?
A: Aramid machine consists of rack ,reel, twisted body, transmission device, stranding unit, pneumatic brakes, electrical controls, safety devices and other components.
Aramid machine with passive pay-off stand, tension is provided by the hysteresis brake. The tension can be set as required.Number of reel with 12 or 24 is for the user to select.
Pay-off reel media through a set of guide wheels and magnetic hole and pooled into the mold at the stranding unit.
Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable us provide accurate quotation for you, please kindly send the following information:
1. Aramid yarn specification
2. Qty of Aramid yarn
3. Aramid yarn tension range
4. Diameter of cable core
5. Hinge pitch range
