• Model NO.：XJ-45mm,65mm,90mm,115mm
• Screw L/D：14:1
• Motor：Siemens
• Inverter：Yashawa or Inovance
• Bearing：NSK
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan, Guangdong, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-45mm/65mm/90mm/115mm Screw L/D 14:1 Motor Siemens Inverter Yashawa or Inovance Bearing NSK Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan, Guangdong, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

_{Turnkey Service Silicone Wire Cable Extruding Line}1.Application:
 This machine is used for insulating or sheathing extrusion for silicon rubber wire&cable.
2.Machine Features:
1) PLC+Touching screen operation, Cmplete control, adjustment and monitoring production technology parameters;
2) Special silicone screw, barrel, crosshead and dies with anti-vulcanized structure;
3) Special silicone automatic centering crosshead and automatic or manual cooling system;
4) Equip with precision testing feedbak system to ensure OD precision, so as to reduce the costs.
3. Technical Parameters:

Model	XJ-45	XJ-65	XJ-90	XJ-115
Screw diameter	Φ45mm	Φ65mm	Φ90mm	Φ115mm
Screw L/D ratio	14:1	14:1	14:1	14:1
Pay-off bobbin	Φ300-400mm	Φ400-630mm	Φ1000-1250mm	Φ1250-1600mm
Inlet diameter	Φ0.2-3.0mm	Φ0.3-5.0mm	Φ1.0-20mm	Φ3.0-45mm
Finished OD	Φ0.8-5.0mm	Φ1.8-8.0mm	Φ3.0-20mm	Φ6.0-55mm
Main power	10HP	20HP	30HP	50HP
Extrusion output	30kg/h	60kg/h	150kg/h	250kg/h
Vulcanize length	12M	16M	24M	28M
Heating power	6 zones 32kw	6 zones 32kw	8 zones 42kw	10 zones 54kw
Capstan power	3kw	4kw	7.5kw	11kw
Line speed	6-80m/min	6-80m/min	4-40m/min	4-40m/min
Take-up bobbin	Φ400-500mm	Φ400-630mm	Φ500-630mm	Φ1250-1600mm

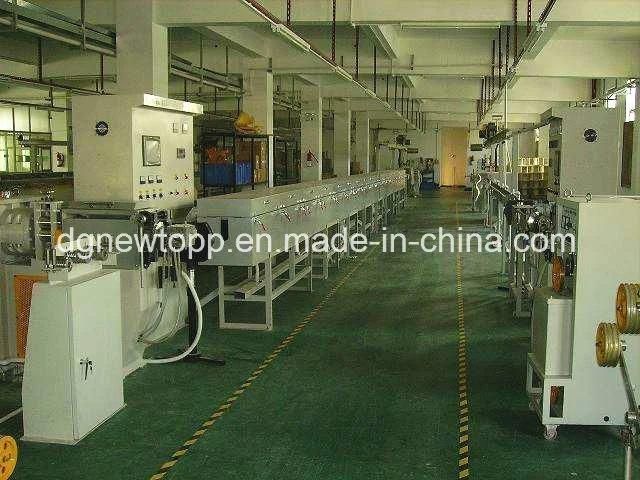

4. Machine pictures:

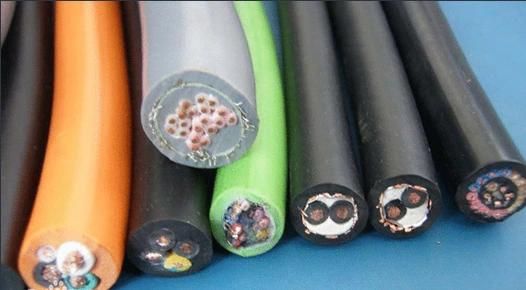

5. Referce picture of finished products:

6. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

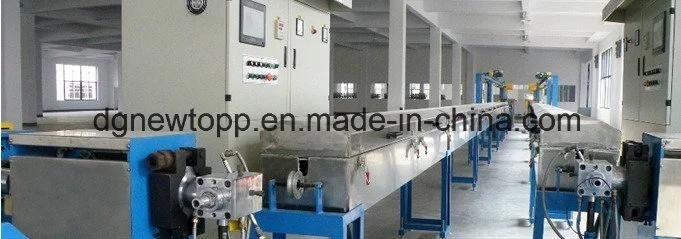

7. Machine picture:
8.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
9. Company Informations:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipment R&D, design and manufacture.With the continuous improvement of production technology level and Constantly increasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfect and excellent.


0.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
2) How can we get to your factory to see the machines works?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high speed rail from Guangzhou south station to Humen.
                            Welcome to visit our factory at anytime!
