• Model NO.：WL-3000FS
• Productivity：1,200 Pieces,Hour
• Rubber Seal Size：10*10
• Stripping Length：0-10mm
• Crimping Stroke：30mm
• Single Cycle：3 Seconds
• Power：< 150W
• Air Pressure：0.5-0.7MPa
• Cutting Tolerance：+,-0.02mm
• Size：110*92*1,60cm (L*W*H)
• Weight：350kg
• Transport Package：Wooden Carton
• Specification：180x175x180cm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-3000FS Productivity 1,200 Pieces/Hour Rubber Seal Size 10*10 Stripping Length 0-10mm Crimping Stroke 30mm Single Cycle 3 Seconds Power < 150W Air Pressure 0.5-0.7MPa Cutting Tolerance +/-0.02mm Size 110*92*1,60cm (L*W*H) Weight 350kg Transport Package Wooden Carton Specification 180x175x180cm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

 WL-3000FS Semi automatic wire stripping rubber seal inserting and terminal crimping machine

This is a semi-automatic wire stripping and rubber seals crimping machine. It is able to strip the wire, insert rubber seals and crimp terminals automatically. The operator only need to put the wire head into the working area and then press down foot switch, then it will strip and seal-crimp automatically.It is especially designed for processing the core wires of multi-core cables.

  Product advantages:

This machine adopts servo rotation, guide screw positioning, and realizes the three processes of wearing rubber seals, stripping and crimping at the same time. The stripping length is adjustable. The depth of the rubber seals is adjusted according to the glue position data between the stripping port and the rubber seals. The crimping depth of the end can be adjusted according to the position of the top line. The machine is driven by a high-efficiency servo motor, featuring high-speed stamping, and stable pressure. The stripping slider is driven by a screw rod to ensure accurate stripping length. The insulation stripping mechanism is driven by a motor and a screw rod to ensure accurate stripping length. The rubber seals feeding structure is simple and easy to replace, which can meet a wide variety of requirements.

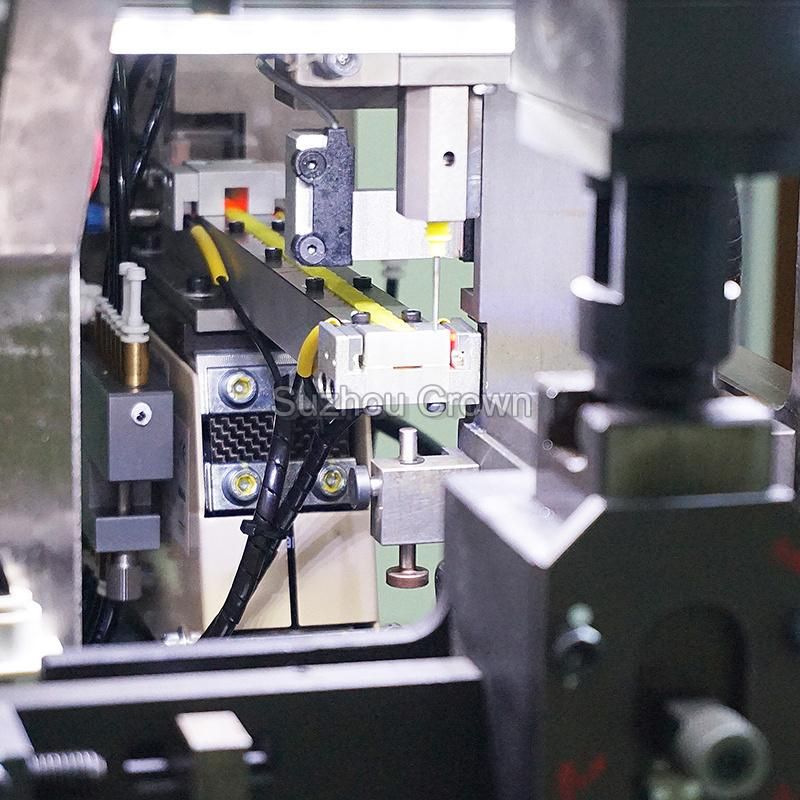

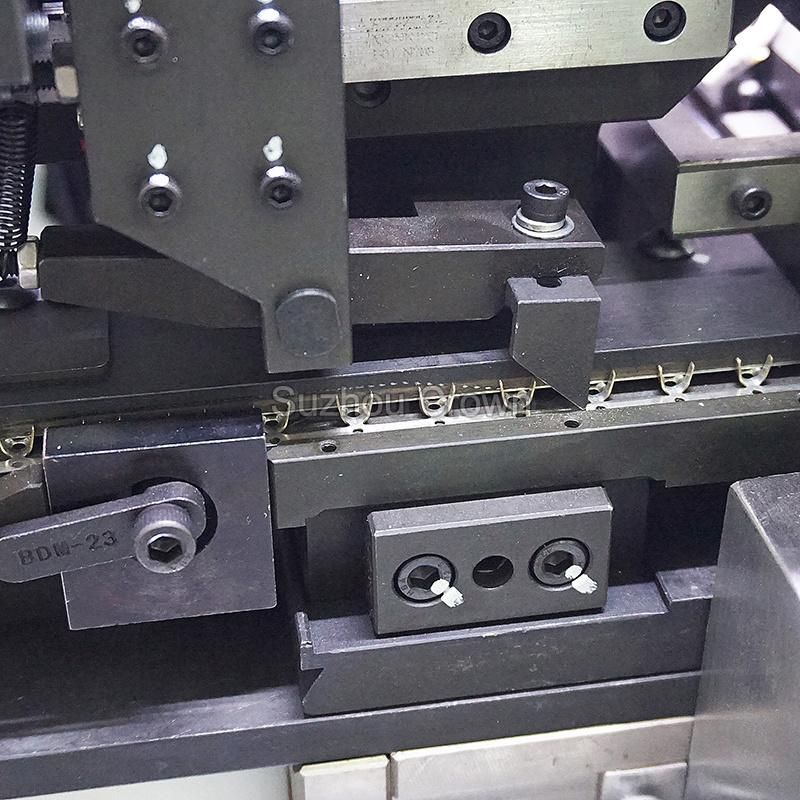

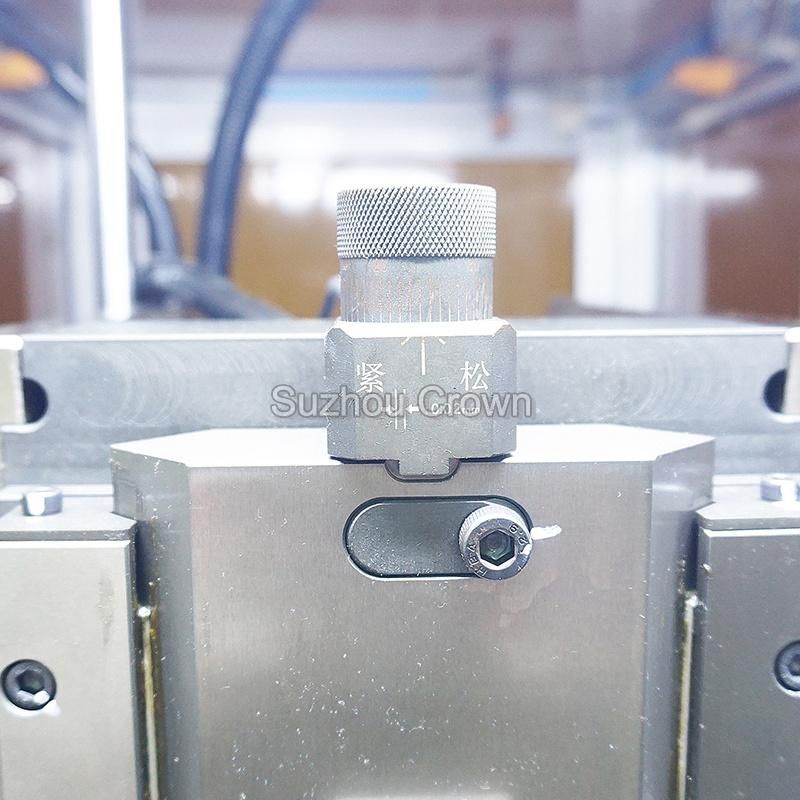

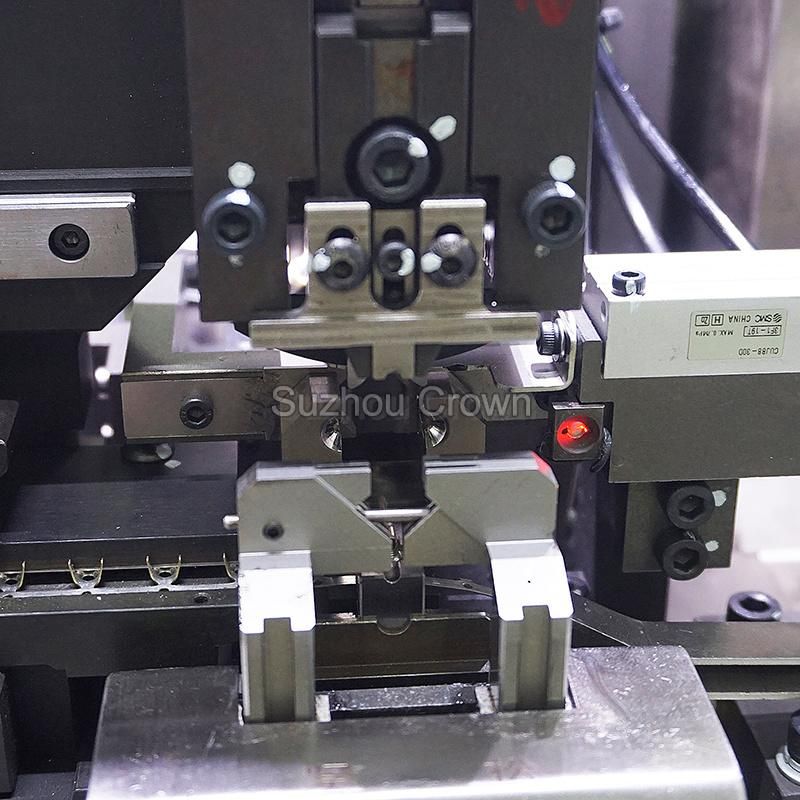

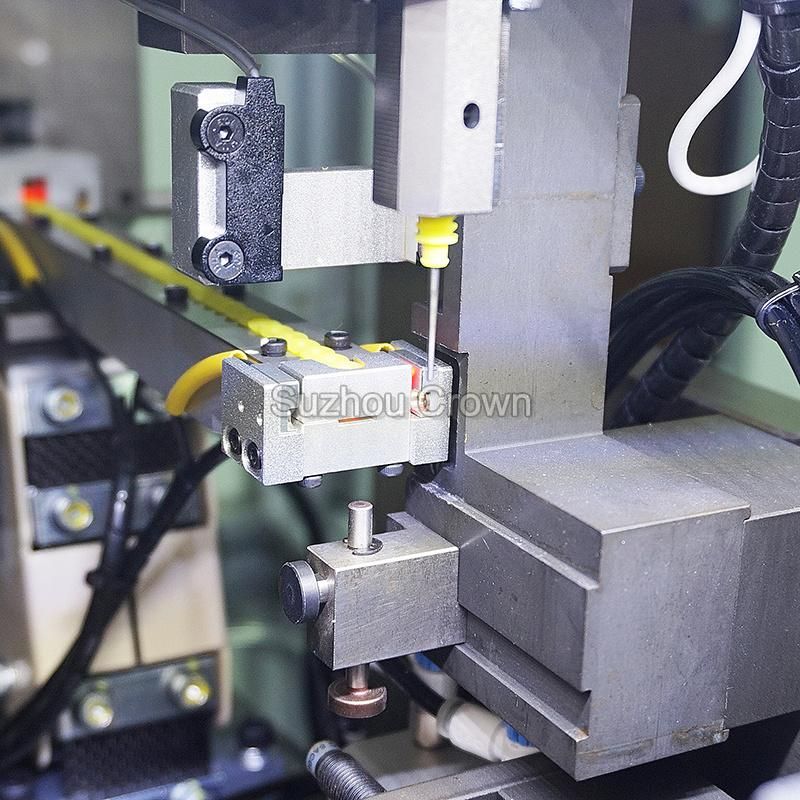

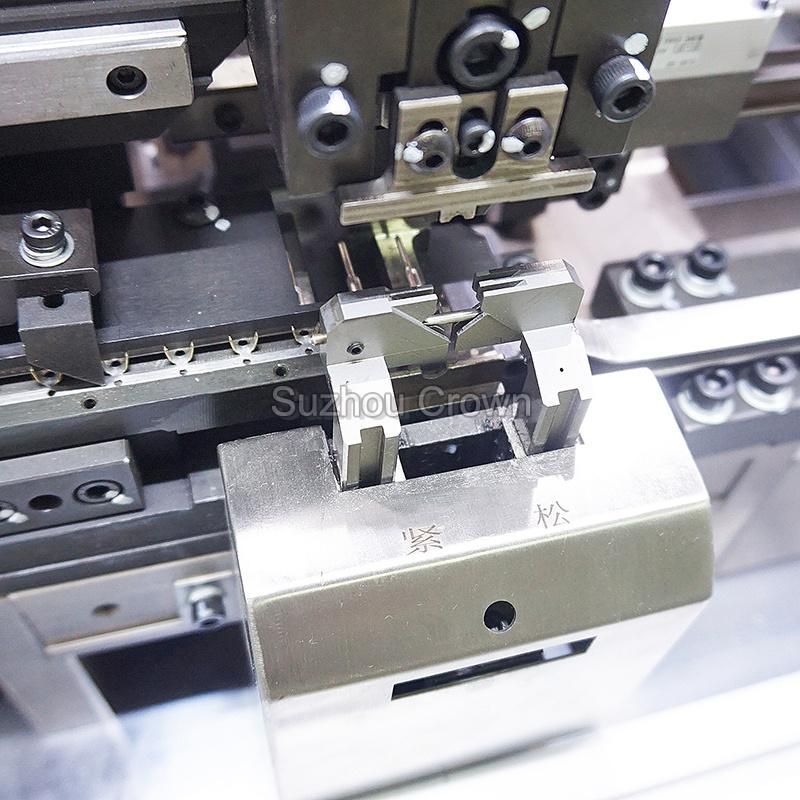

Detail image:


Finished products of this machine below:

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information



packing & shipping





 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.

Welcome to contact Kitty for more detail.
