• Model NO.：SR-02B
• Crimping Force：2.0t (Customized)
• Applicable Terminal：Continuous Terminal
• Applicable Mold：Horizontal , Vertical Mold
• Applicable Wire：AWG#18 - AWG#32
• Transport Package：Plywood Case
• Specification：600*700*1500mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：50 Sets,Month

Specification:

Model

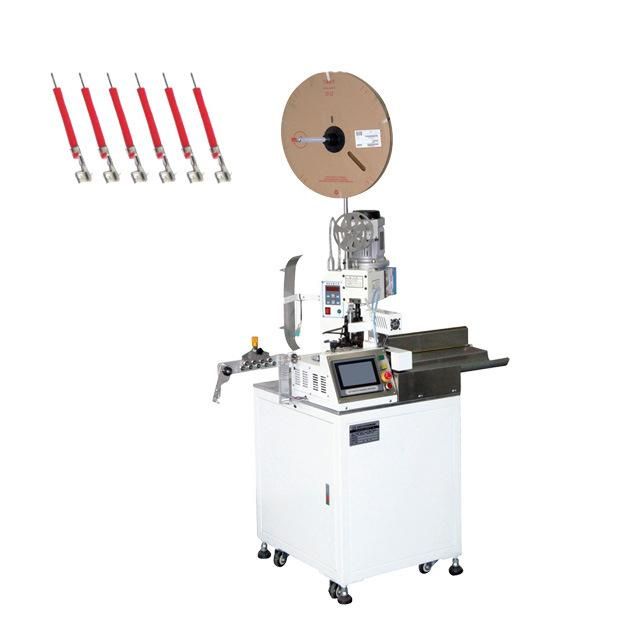

SR-02B Automatic Wire Cutting Stripping Twisting and Crimping Machine

Display

Touch panel

Function

cut, full stripping, half-stripping, single end twisting, single end crimping

Production rate

wire less than 100mm, 6100pcs/H

wire 100-600mm, 4600-5800pcs/H

Available cable

AWG18~AWG32

Cutting tolerance

±1mm+0.2%*cutting length

Cutting Length

20-9999mm(with twist), 8-9999mm(without twist)

Stripping length

01mm-10mm

Swing arm mode

motor

Wire take-up mode

swing arm

Crimping force

2T or customized base on products

Twisting length

3mm~12mm

Detector

wire on or not, crimp abnormal, air lower, knot detection, paper detection

Air supply

0.5~0.7MPA

Available wire

electronic wire and anti-high temperature wire

Available terminal

continuous vertical or horizonal terminal

Terminal crimping machine

Dwight electronic clutch

Tool material

Tungsten steel

Machine Dimensions(L*W*H)

600*700*1500mm

Machine Weight

220 Kg

 Features:

1. Taiwan HI-WIN guide rail,PHT reducer.

2. Japan Keyence, Omron detector.

3. The computer is adjusted, no pad is needed.

4. Half-stripping at the back end is available.

5. Control: 32-bit microcontroller control system.

6. The whole stripping length is directly set by the menu of touch panel.

7. Fast technical performance adjustment, short adjustment time, easy operation.

8. Suitable for horizontal, straight OTP applicator.


Pictures:



Contact:


 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

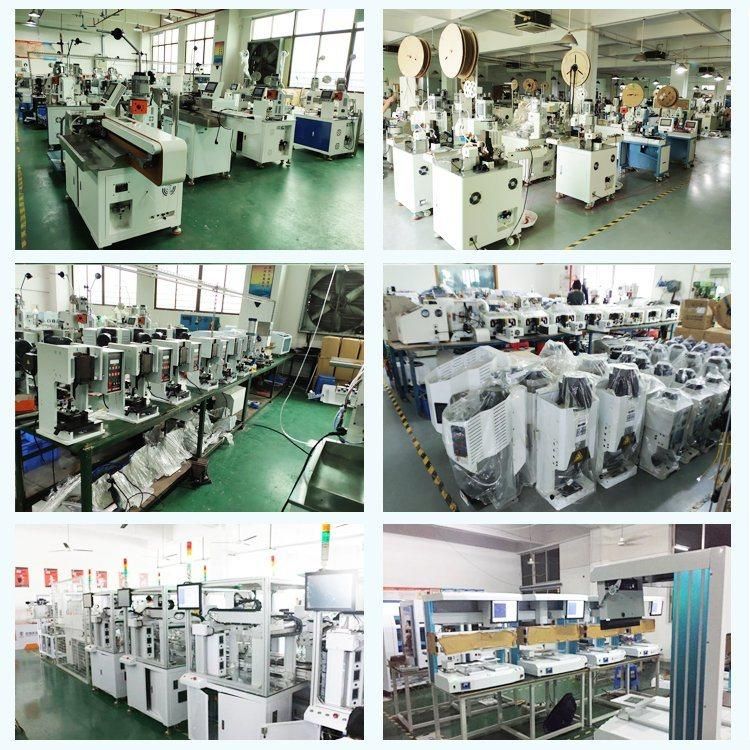

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
