• Model NO.：BZW-886A
• Voltage：AC220V,110V 50,60Hz
• Stripping Length：0.1-65mm
• Cutting Wire Diameter：1.5-9.5
• Cutting Depth Setting Unit：0.01mm
• Stripping Method：Rotary Cutter
• Stripping Layer：Max.9 Layers
• Capacity：700-1200PCS,H
• Weight：25kg
• Drive Mode：DC Servo Motor
• Transport Package：Wooden Case
• Specification：600*185*280mm
• Trademark：BOZHIWANG
• Origin：Jiangsu Changzhou
• Production Capacity：50000PCS,Yera

1.Mode:BW-886A2.The max. Processing wire diameter:6.99mm3.The min. processing wire diameter:0.81mm4.Cutting depth:0.01mm5.The max. stripping length:48mm6.The max. stripping layers: 9 layers7.Drive Model:motor/ball screw driving 8.Displaying: touching screen9.Blade materials: 2 pieces, imported tungsten steel10.Clamping device:automatic centralized, motor driving, clamping force control11.Capacity:500-700 pcs/h

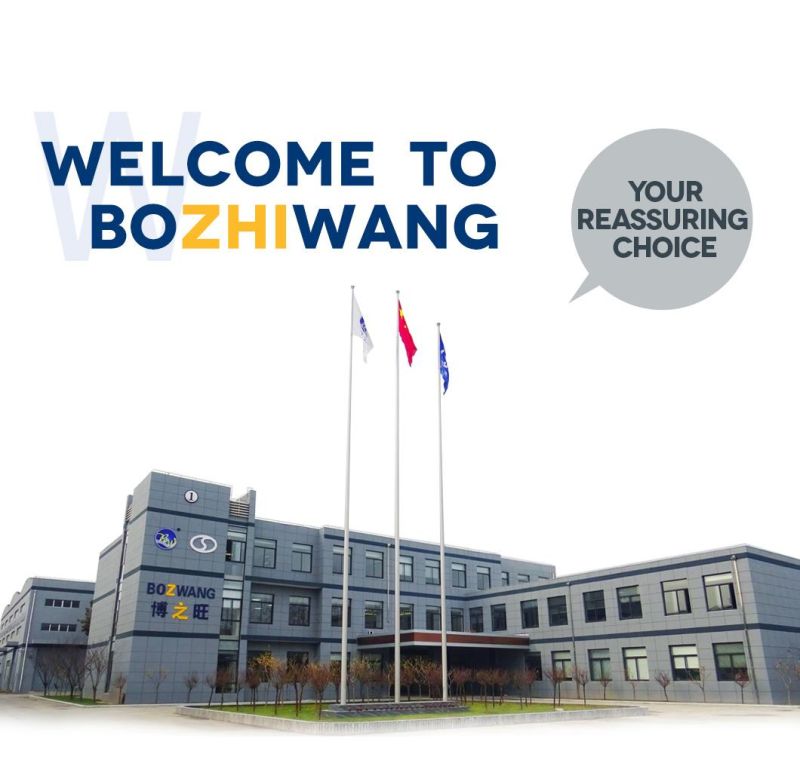

(it depends on the type and length of the cable)12.Machine starting method:manualnsitive 13.Voltage supply: 220V/50hz 14.Power:380W15.Weight: 19kg16.Outer dimension:190 x 285 x 530 mm17.Working environment:50ºC, Medium drying workshop, without vibrating working table      Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a large-scale intelligent wire processing equipment manufacturer in China,located in the center of the beautiful and rich Yangtze River Delta---China's famous industrial equipment manufacturing base Changzhou City, Jiangsu Province.

      The company covers an area of 40,000 square meters and a building area of 45,000 square meters with more than 400 employees,including more than 300 outstanding technicians. The company has successively passed ISO9001, QS-9000, CE certification, TUV certification, and developed a number of products with independent intellectual property rights, and obtained more than 60 invention patents, more than 100 utility model patents and 100 new appearance patents, the technology and comprehensive strength of product research and development ranks the top among the nationwide.

      In the production process, the company strictly follows the ISO:9001 quality standard for daily production and management. It mainly focuses on the automotive, photovoltaic and new energy industries and has developed and produced a series of automatic processing equipment with
high quality, stable performance and high efficiency.

      Mainly include automotive wiring harness/HSD/FAKRA radio frequency wire harness/new energy wiring harness and other related semi-automatic and fully automatic intelligent production lines, automatic double ends terminal machine with seal inserting, automatic ribbon cable terminal machine, automatic single-double-end terminal crimping machine, automatic wire stripping machine,JB box automation equipment, new energy automation equipment, and a complete set of equipment series for various semi-automatic wire harness processing. With the increasing annual output of the company, it has reached an annual output of more than 20,000 sets of intelligent assembly lines and various wire harness processing equipment, and the production equipment has the characteristics of high precision, high degree of automation, and strong supporting performance of the whole machine.
