• Model NO.：V4
• Soldering Area：380*310mm
• Chamber Height：100mm
• Temperature Range：350--450c
• Voltage：220V 25-50A
• The Maximum Heating Rate：120c,Min
• Cooling Way：Air-Cooled , Water-Cooled (Shell, Heating Plate)
• Atmosphere：Nitrogen, Hydrogen, Mixer, Formic Acid
• Heating Rate：2 Degree,S
• Cooling Rate：3degree,S
• Void Rate：<=3%
• Transport Package：Wooden Case by Sea
• Specification：1.15*0.9*1.35M
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8514101000
• Production Capacity：100 Set,Year

Model No

V3

V4

V5

process chamber size

280mm*260mm

380mm*310mm

500mm*380mm

Power

4KW

5KW

10KW

Height of oven

80mm (other height is optional)

Temperature range

up to 350-450°C

Interface

serial port /USB

Control way

40 sections temperature control + vacuum pressure control

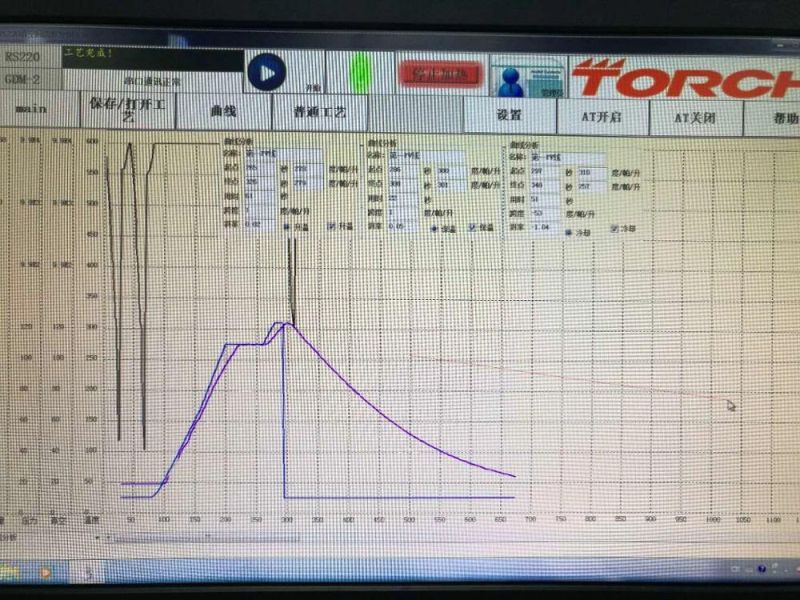

Temperature curve

Can save 40 sections temperature curve

Power supply

AC220V, 25-5A

Vacuum furnaceStandard configuration :

Main body

V3/V4/V5

V-TSC

Torch screen computer

V-TC

4 thermocouple to measure on device , for external measurement tool

V-PC

Pressure control

V-WC

Closed loop water cooling system

V-TTM

4 real temperature test mode

V-VPT

Vacuum pressure transfer

V-IG

Inert gas or nitrogen control

V-WB

Water box

V-Cool water machine

Cool water machine

Vacuum furnace Options and accessories:

V-MPC

Chemcial resistant diaphragm pump for vacuum up to 10 mbar with manometer

V-RVP

Rotary vane pump for vacuum up to 10^-3mbar

V-HVP

Turbomolecular pump system for vacuum up to 10^-6mbar

V-FA

Formic acid module (integrated in machine)

V-PS

110V power supply

Vacuum furnace Standard spare part :

Main body 1 setTouch screen control computer1 setTemperature control 1 setPressure control     1 setClosed cycle water cool system1 set4 real temperature test mode 1 setVacuum pressure transfer 1 setInert gas or nitrogen control 1 setWater box         1 setCool water machine   1 set

Optional spare part:

Corrosion resistant diaphragm pump (10mba)

Rotary vane pump (10-3mba)

Whirling molecular pump (10-6mba)

Formic acid(for V serial oven)

Component fixer

110V power supply
