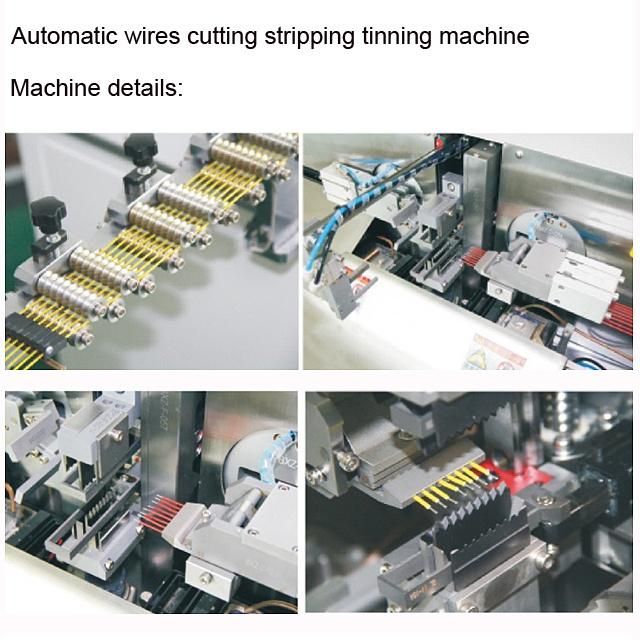

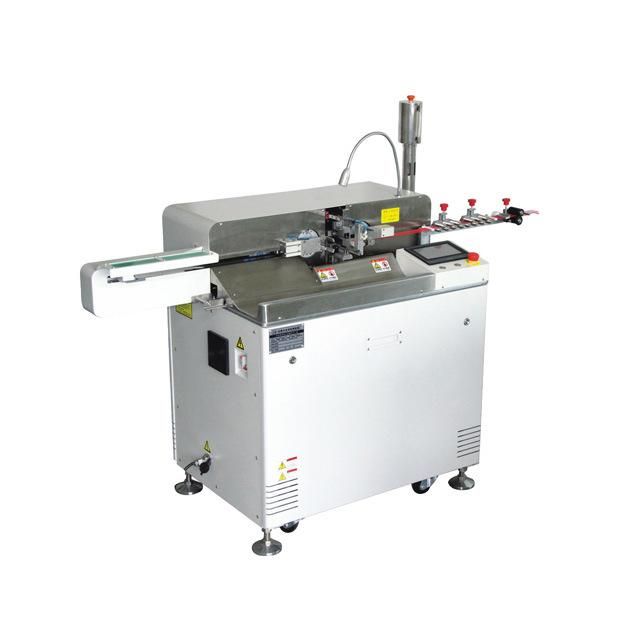

auto double ends tinning machine

Technical Index

Tech-Parameters

Display

Touch panel

Function

cut, both end stripping, both end twist, both ends tinning

Production rate

AWG20~AWG32 support cutting 8 pcs in same time
AWG16~AWG20 support cutting 3pcs in same time

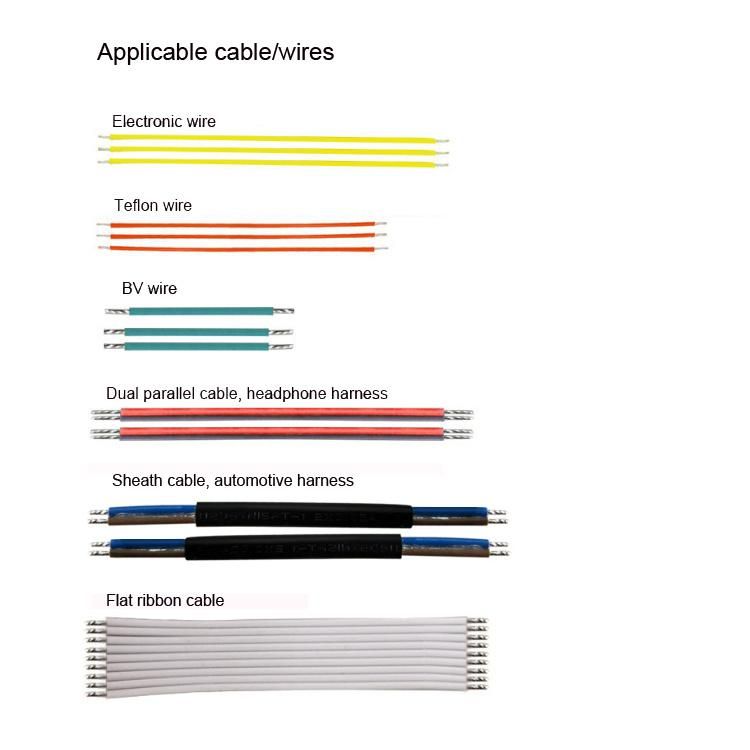

Available cable

AWG24~AWG18, AWG24~AWG32

Cutting tolerance

0.2±0.02*L

Cutting Length

30~550MM  (support customized, min. 8mm)

Stripping length

0-9mm

Twisting length

3-9mm

Tinning length

0.5-9mm

Air supply: 0.5~0.7MPA.

Machine Dimensions(L*W*H): 1210*770*1370mm.

Machine Weight: 400KG.

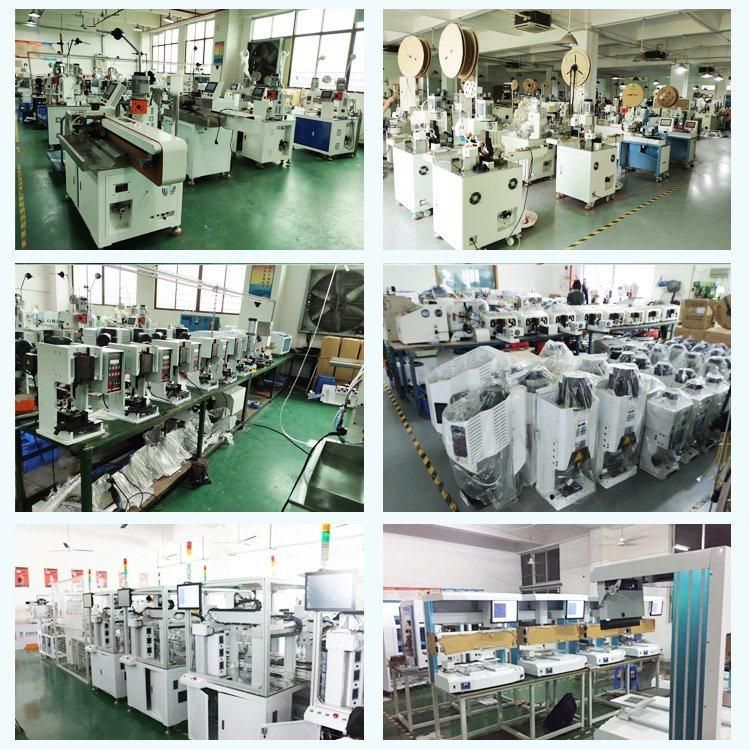

1. Factory direct sales, excellent quality, computer touch screen Chinese/English operation menu is easy to learn and use.

2. Using imported high-precision parts, stable performance.

3. The operation is simple, the length of the wire, the cutting speed, the time of immersion tin, and the number of times of tin dipping are completely touched by the touch screen, which realizes that some wires that are difficult to tin are dipped in tin.

4. Lead-free tin furnace meets high environmental protection standards; has an automatic tin scraping device, which makes the cut wire bright without tin residue; the tin scraping time can be set to make the tin loss reach the bottom; the tin is dipped at a 90 degree angle, and the tin mouth is even.

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.
