• Model NO.：FC-650B
• Type：High-speed Stranding Machine
• Transport Package：Standard Packing
• Specification：3300L*1550W*1800H mm
• Trademark：fuchuan
• Origin：China
• HS Code：8479811000
• Production Capacity：50sets,Month

Basic Info.

Model NO. FC-650B Type High-speed Stranding Machine Transport Package Standard Packing Specification 3300L*1550W*1800H mm Trademark fuchuan Origin China HS Code 8479811000 Production Capacity 50sets/Month

Product Description

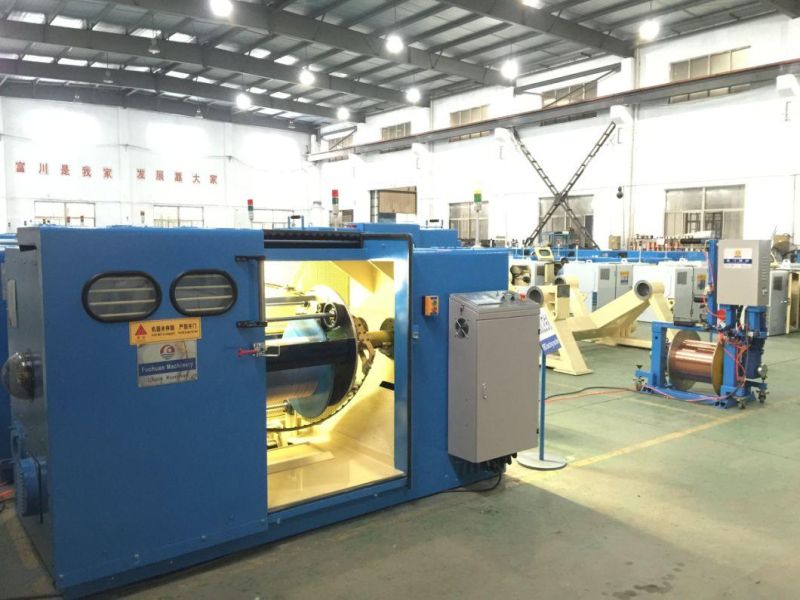

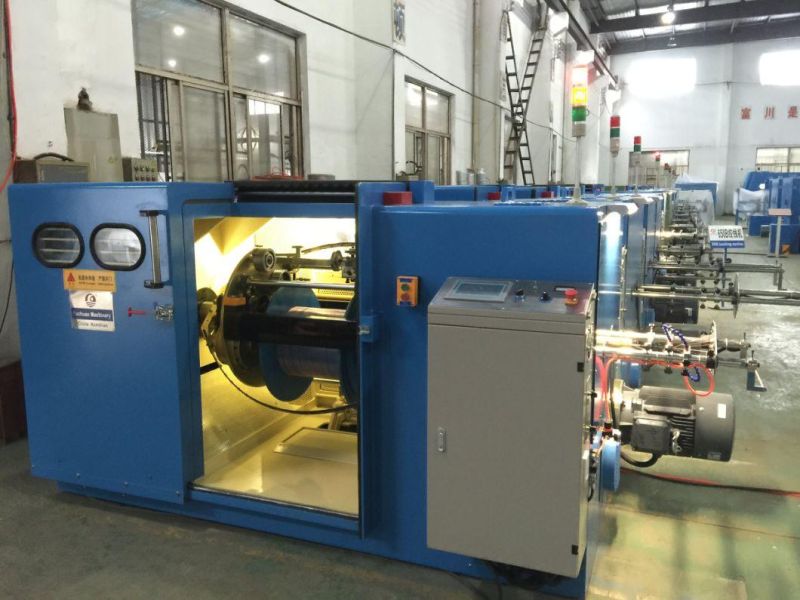

A.Main performance parameters of FC-650B automatic high speed bunching machine (replace of the capstan wheel to change the lay length).

1. Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.

2.Diameter of single copper wire: φ0.16~φ1.04mm
3.Outer diameter of wire: φ0.84~φ3.2mm;
4.Cross section area: φ0.40~φ6mm²
5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed:2000rpm(4000twist),in normal working speed1800rpm(3600twist).
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length).
9. Main motor: 7.5KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Whole machine drive bearing:main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing.
15. Synchronization strap: with imported from American.
16. Spool from top to bottom: it is adopted manual hydraulic pump lifting.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: lower than 82dB
19. Dimension: 3300L×1450W×1650H(mm)
20. Weight: 4500Kg
21. Coating: Ral5015sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
