Manufacturing Equipment for Electrical & Electronic Product

Automatic High Speed Cable Wire Stripping Cutting Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • After-sales Service:1year
  • Driven Type:Electric
  • Condition:New
  • Certification:RoHS, ISO, CE
  • Warranty:12 Months
  • Automatic Grade:Semiautomatic

Base Info

  • Model NO.:WL-8010
  • Power Supply:220,110V, 50,60Hz
  • Wire Size:1-16mm2
  • Core Stripping Length:Side 1 Full Strip: 1-190mm, Side 1 Semi Strip: 1-1
  • Wire Guide Diameter:10mm
  • Display Screen:7′′ Touch Screen
  • Productivity:3600 PCS,Hour
  • Drive Method:16 Wheels
  • Cutting Length:1mm-99999.99mm
  • Wire Feeding Method:Belt Feeding, No Embossing and No Scratches on The
  • Model:Wl-8010
  • Name:Automatic Wire Cutting and Stripping Machine
  • Transport Package:142*97*73cm
  • Specification:204kg
  • Trademark:Crown
  • Origin:China
  • HS Code:8479819000
  • Production Capacity:1000set,Month

Description

belt feeding, no embossing and no scratches on the cableApplication
Automatic High Speed Cable Wire Stripping Cutting Machine

Automatic High Speed Cable Wire Stripping Cutting Machine
Automatic High Speed Cable Wire Stripping Cutting Machine
Automatic High Speed Cable Wire Stripping Cutting Machine
Machine details  :
1.Applicable wire sizes: 1-16 square mm

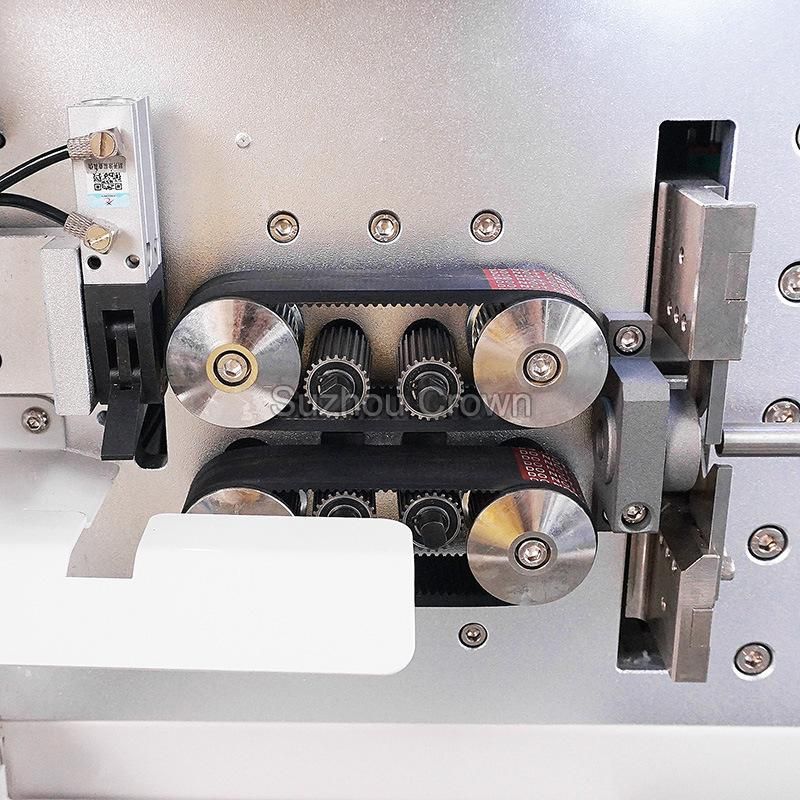

2.Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
3.Belt feeding wires, no embossing and scratches


Automatic High Speed Cable Wire Stripping Cutting MachineAutomatic High Speed Cable Wire Stripping Cutting MachineAutomatic High Speed Cable Wire Stripping Cutting MachineAutomatic High Speed Cable Wire Stripping Cutting Machine

Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Automatic High Speed Cable Wire Stripping Cutting Machine



Company info:

Automatic High Speed Cable Wire Stripping Cutting Machine
Our Services

1, One year guarantee for the whole machine except blade and belt.

2, 24 hours technical support by email.

3, User-friendly English software and user manual.

-Purchase guidance

If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models

to you.

---After Sale Service

Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!

--- Technical Support

In some cases, professional technical support will be needed, such as parameter meter set-up

 for difficult-to process wires. Crown engineers are here for your assistance.

---Others

Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.

Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
