• Model NO.：BZW-882DK-120X
• Specification：Dimension: 1300*800*1330mm
• Trademark：BOZWANG
• Origin：Jiangsu Changzhou
• Production Capacity：1000PCS ,Year

BZW-882DK-120X Computerized cutting and stripping machine for 120 mm² cable with rotary cutter

1.New mode cable processing equipment that controlled by micro computer, especially for processing the high voltage power cable in the industries of new energy motor, power charging station, electronic control, BMC and etc.  which essentially solves the problem in processing the big power cable; 2.Automatic wire cutting,  two ends stripping,  multi-layers stripping at the same time;

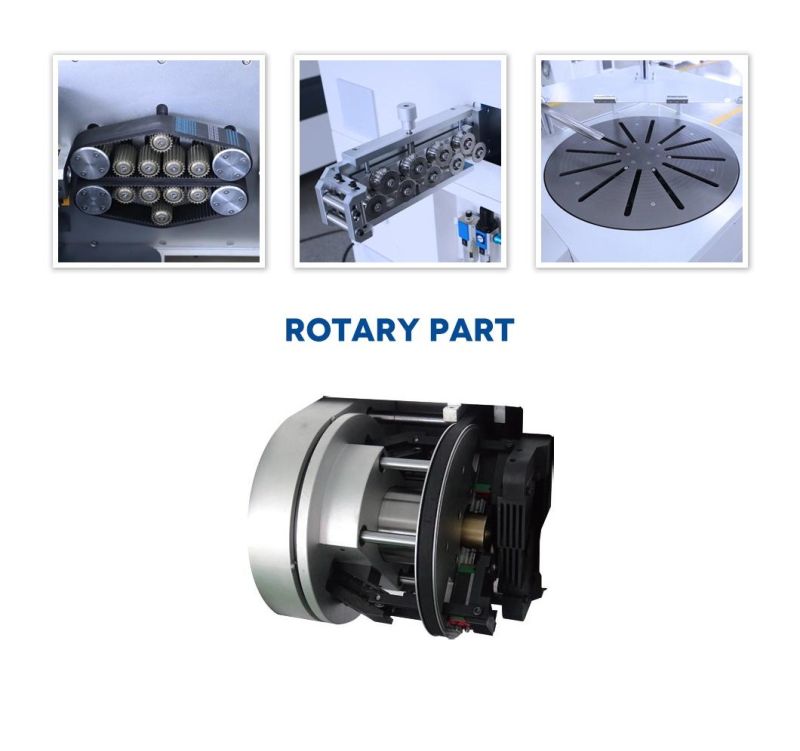

3.The cross section of the cable is processed tidily by unique rotary tool; cut fast to the shielding net;
4.Industrial level control chip and high precise servo driving  to ensure its high speed and stable running;
5.PLC control system ,  touching screen operating;

6.Automatic wire diameter adjusting,  different power cable doesn't need to change the cutting tools;
7.Belt style driving without any pressing marks

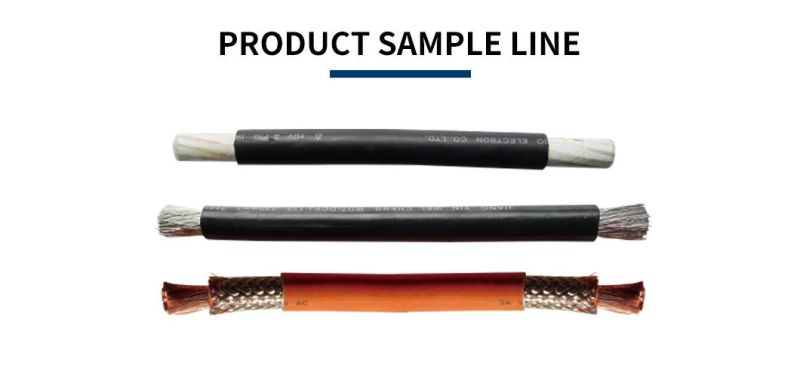

8.The cable (within 120 mm2) can  be easily processed , the strong driving force ensures the high working efficiency.
 TECHNICAL PARAMETER

Cross section	6-120mm2 (Other size can be special ordered)
Cutting length	240-100000mm
Cutting precision	±(0.2%*L+1)mm
Stripping length	1-200mm (Other size can be special ordered)
Stripping method	1-200mm (Other size can be special ordered)
Stripping method	Rotary cutting and stripping the shielding net
Drive	8 wheels independently servo driven
Stripping layers	3 layers
Tool materials	Imported high speed steel
Feeding speed	0.8m/s
Capacity	900 pcs/h (it depends on the length of the wire)
Power	220V  50HZ
Motor	0.75KW
Air supply	0.5 Mpa-0.7 Mpa,6m3/h
Weight	200kg
Dimension	1400 x 800 x 1300mm

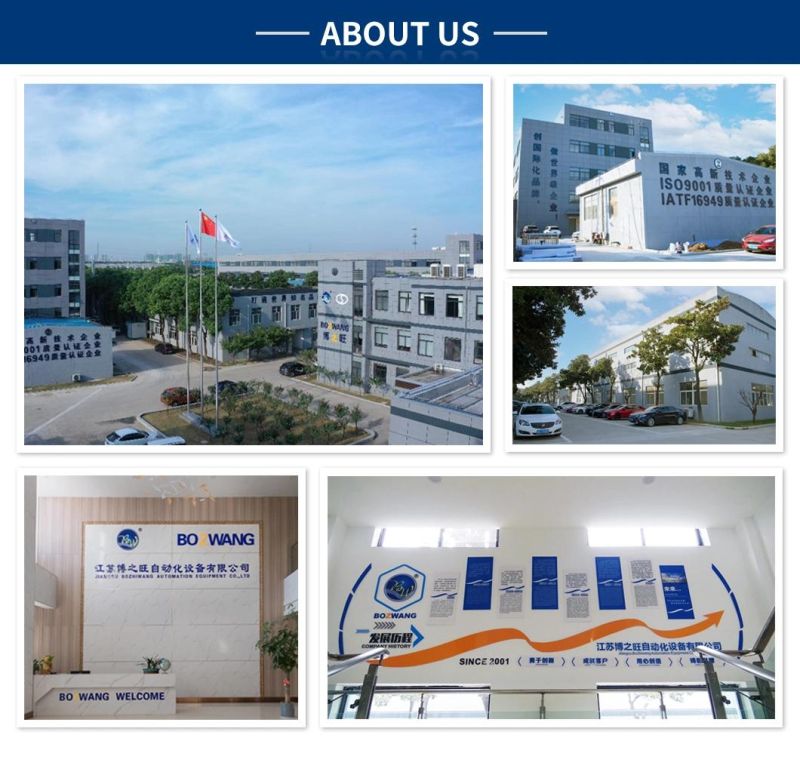

      Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a large-scale intelligent wire processing equipment manufacturer in China,located in the center of the beautiful and rich Yangtze River Delta---China's famous industrial equipment manufacturing base Changzhou City, Jiangsu Province.

      The company covers an area of 40,000 square meters and a building area of 45,000 square meters with more than 400 employees,including more than 300 outstanding technicians. The company has successively passed ISO9001, QS-9000, CE certification, TUV certification, and developed a number of products with independent intellectual property rights, and obtained more than 60 invention patents, more than 100 utility model patents and 100 new appearance patents, the technology and comprehensive strength of product research and development ranks the top among the nationwide.

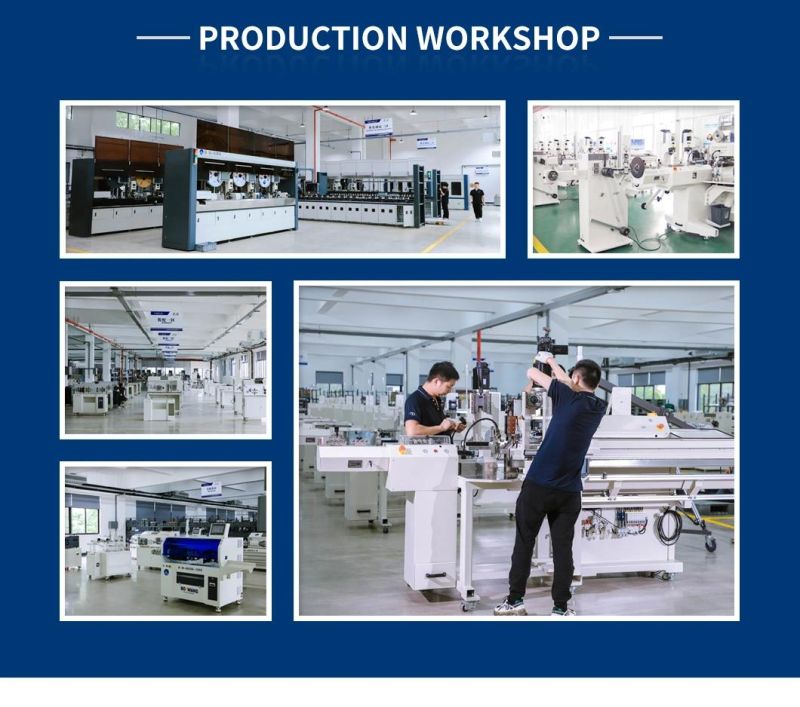

      In the production process, the company strictly follows the ISO:9001 quality standard for daily production and management. It mainly focuses on the automotive, photovoltaic and new energy industries and has developed and produced a series of automatic processing equipment with
high quality, stable performance and high efficiency.

      Mainly include automotive wiring harness/HSD/FAKRA radio frequency wire harness/new energy wiring harness and other related semi-automatic and fully automatic intelligent production lines, automatic double ends terminal machine with seal inserting, automatic ribbon cable terminal machine, automatic single-double-end terminal crimping machine, automatic wire stripping machine,JB box automation equipment, new energy automation equipment, and a complete set of equipment series for various semi-automatic wire harness processing. With the increasing annual output of the company, it has reached an annual output of more than 20,000 sets of intelligent assembly lines and various wire harness processing equipment, and the production equipment has the characteristics of high precision, high degree of automation, and strong supporting performance of the whole machine.
