• Model NO.：50+35,70
• Material：PE Insulation
• Pair Twist：2
• Cabling：4
• Braiding：16 Spindles
• Sheath：PVC
• Capacity：200-300 Coils,Day
• Service：Installation,Training
• Technical：on-Line Video Supporting
• Container：4 X 40 FT
• Market：Iran,Pakistan,Russia,Vietnam
• Transport Package：PE Foam
• Specification：25 m x 3 m x 4m
• Trademark：HOOHA
• Origin：Guangdong
• HS Code：8479400000
• Production Capacity：15 Sets ,Per Month

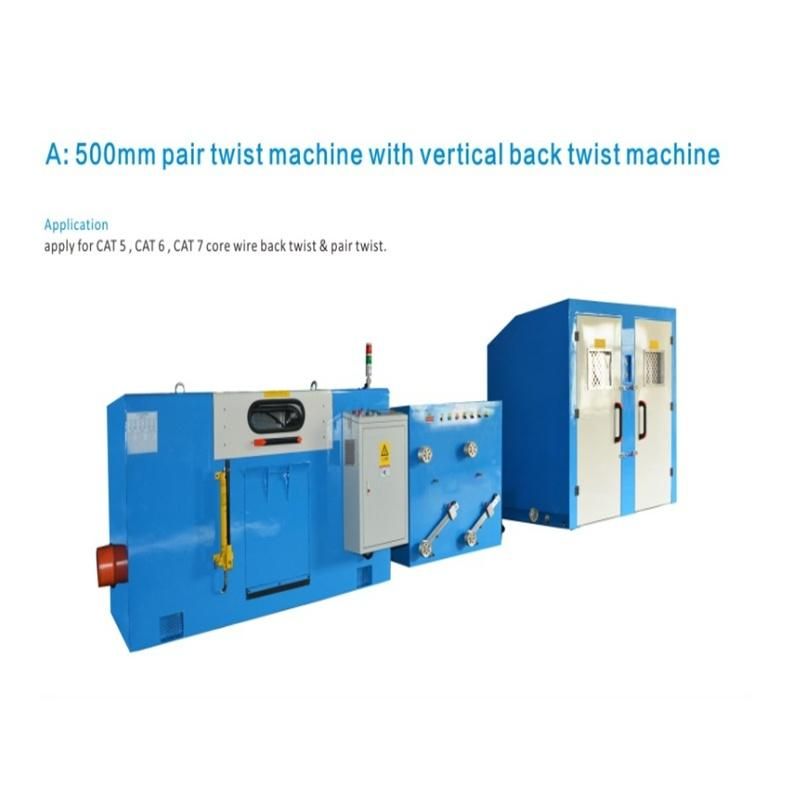

Machine modelVertical box typeMax rotation speedMax 10000rpmBack twist ratioMax 90% stepless adjustableMain motor3.7kw spin motor,1 set inverter control,initiative wire pay-off motor 0.75kw,2 set inverterBobbin size(mm)Max Φ500(OD)×Max Φ320(outer width) or made per customer requestBobbin weight requirement<250kg,wire pay-off tension 3-10NPay-off tray(mm)Φ500(OD) × Φ56(ID) × Φ300(outer width)Pay-off main motor5HP,4P AC motorTensions range200g,stable and adjustableBack-twist tension standVertical double head,tension wheel 120mm,3+4ditch,precision potentiometerPay-off deviceReserve line tension sensor stand,linkage with pay-off motor,ensure constant wire pay-offMachine dimension(mm)L×W×H(2100×1300×2000)Total weight(kgs)2200

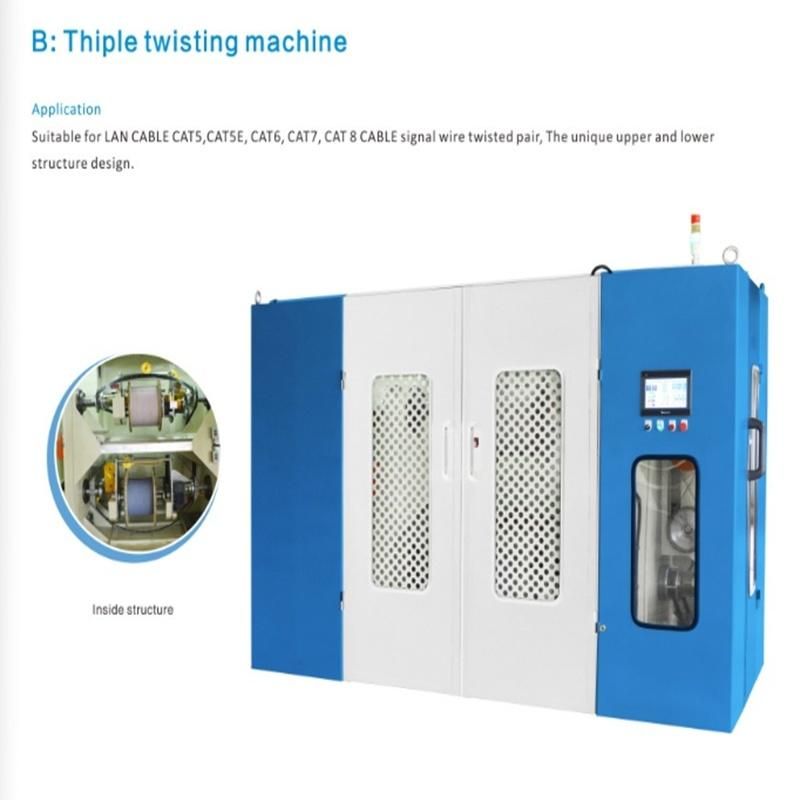

B type : triple twist machine with pair twist to improve the output

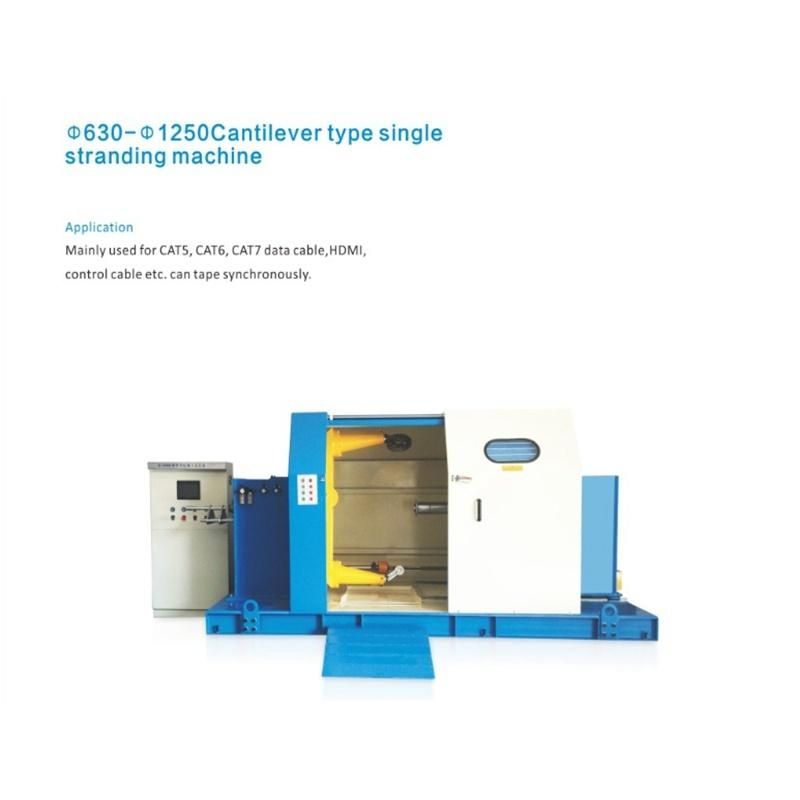

800mm PLC Cantilever Single cable twist machine

Apply to complete twisting and synchronously wrapping for insulation core wire of CAT6,CAT5E , Control cable , communication wire , data wire etc


Machine model63080010001250Single wire OD(mm)Φ0.5-Φ3.0Φ0.8-Φ3.0Φ1.0-Φ5.0Φ1.0-Φ5.0Max stranding OD(mm)Φ12Φ20Φ25Φ30Traverse pitch(mm)2-123-203-303-35SpeedMax 800rpmMax 600rpmMax 500rpmMax 450rpmTwisting pitch(mm)20-20020-30020-40030-500Pay-off bobbin size(mm)Φ500Φ500-Φ630Φ500-Φ630Φ500-Φ630Take-up bobbin size(mm)Φ630Φ800Φ1000Φ1250

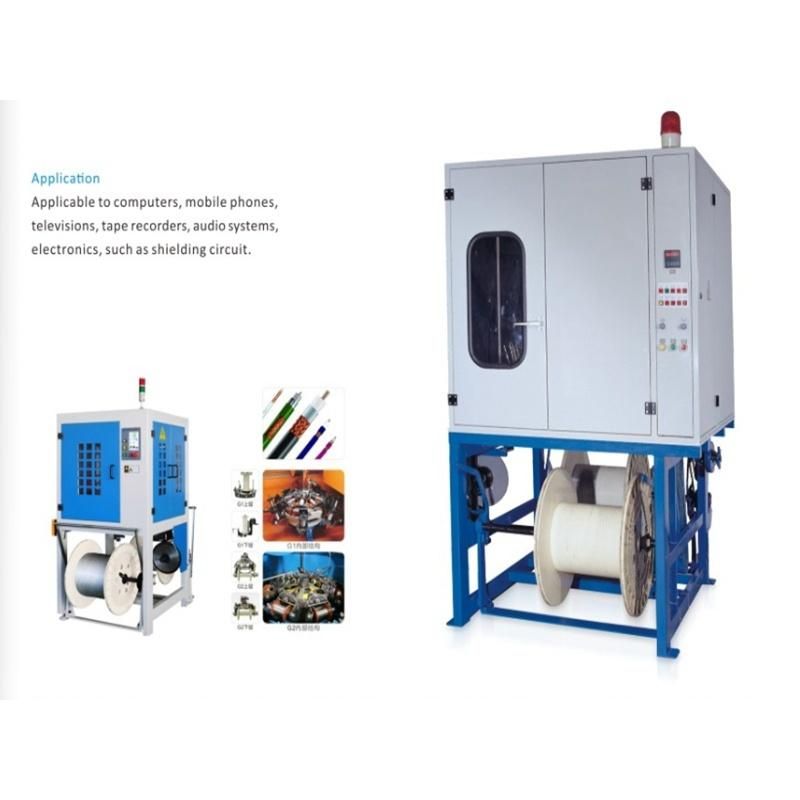

braiding cable --- 16 spindle braiding machine

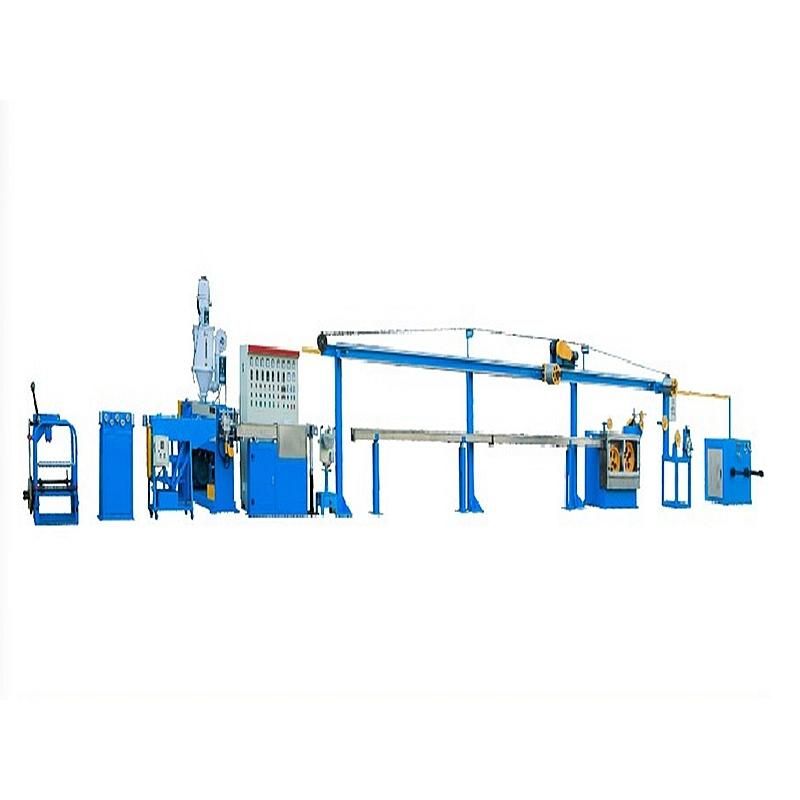

70 PVC Wire Extrusion Machine

Apply to PVC Plastic extruding , Mainly used in different wire in sheathed.

Model Spec	70 MM
Pay-off bobbin	PN400-630
Screw diameter	70
Screw L: D	26: 1
Capacity	180 kg/hr
Main motor	30HP
Wire diameter	1.5-12
Temp control	4 zone
Cooling device	U type single or double layer
Hauling power	5HP
accumulator	slanting
Length for accumulating	200
Running speed	MAX 400 m/min
Taking up bobbin	PN400-630

Final coiling with suitable machines into the box.( 200-300 coil /day)







Q1:What is your main brand for the electrical and mechanical parts?

A:China famous brand and taiwan brand.

Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like

Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge

Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge

Q5:Could you do the design for the whole plant
A: Yes , we can.

Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q8:How long the guarantee ?
A: one year and charge for repair the whole life.

Q9: Do you have a video tips for the machine running ?
A. Yes , we have,our you2be channel : tiezhong chi  /HOOHAWIREMACHINE
