• Model NO.：N300
• Warranty：12 Months
• Automatic Grade：Semiautomatic
• Installation：Vertical
• Soldering Area：300*300mm
• Voltage：220V
• Oxygen Content：400ppm
• Gas：Nitrogen
• Usage：SMT and Semiconductor
• Transport Package：Polywood Case
• Specification：1200*1100*1400mm
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8514101000
• Production Capacity：100 Set,Year
• Package size per unit product：85.00cm * 65.00cm * 50.00cm
• Gross weight per unit product：100.000kg

Item

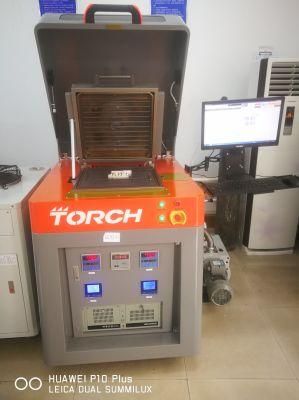

N300  Table Top Furnace Parameter
Temperature control segment
40 segment .The segment can be set in computer according to the actual requirement.
Temperature-zone numbers
Single-zone and multi-segment
Temperature control system
PC control system ,SSR non-contact output.
Temperature accuracy
±2°C
Warm-up time
3min
Temperature range
Room-temperature -360 °C
Heating supply
Infrared ray + Hot air convection
Effective working table area
300mm * 300mm (less than A4)
Welding time
3min±1min
Temperature curve
It can be set, adjusted and tested according to the actual requirement .
Cooling system
Transverse flow equal cooling
Rated voltage
AC single-phase ,220V;50Hz
Rated power
3.8KW
Mean power
1.6kw
Weight
45kg
Dimension
Length*width*height 820*460*310mm
