• Model NO.：SR-CP01
• Applicable Connector：IDC Type
• Air Source：0.4-0.8MPa
• Function：Cutting, Pressing
• Transport Package：Plywood Case
• Specification：2300*1000*1800mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：10 Sets,Month

Specification:

Name

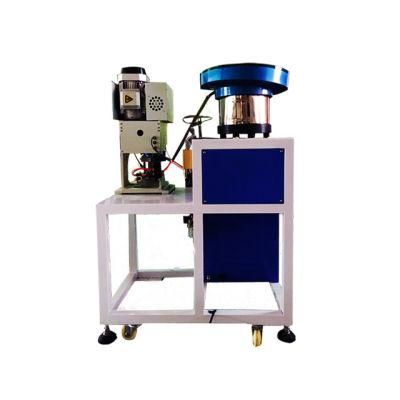

Automatic double ends wires cutting IDC crimping machine

Model

SR-CP01

Function

Cutting, crimping

Dimension

2300*1000*1800mm, depends on products.

Wire diameter

customized

Wire length

customized

Applicable connector

IDC type

Connector pitch

customized

Detecting

Wire feeding, connector feeding, air pressure

Adjustable

Wire length, crimping depth, crimping delay, scrap height, speed, single end/double ends crimping.

Running mode

Auto/manual stepper

Control systemServo motor, touch screen. Features:

1.Automatically feed the connectors with vibration plates.

2. Automatically cutting wires and crimping connectors.

3. Adopt high-quality servo motors, running smoothly.

4. Touch screen control, all parameter settings and detection alarm are displayed on the touch screen, you can quickly set and troubleshoot.

5. Settable parameters: wire length, crimping depth, crimping delay, scrap height, speed, single end/double ends crimping.

6. High precision, high efficiency and high stability.


Pictures:

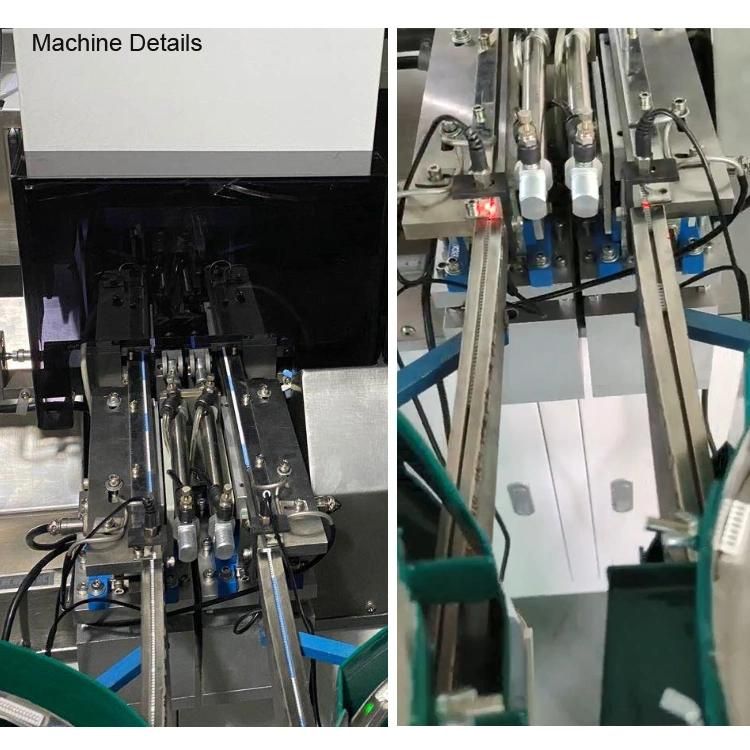

Connector feeding parts, crimping parts:

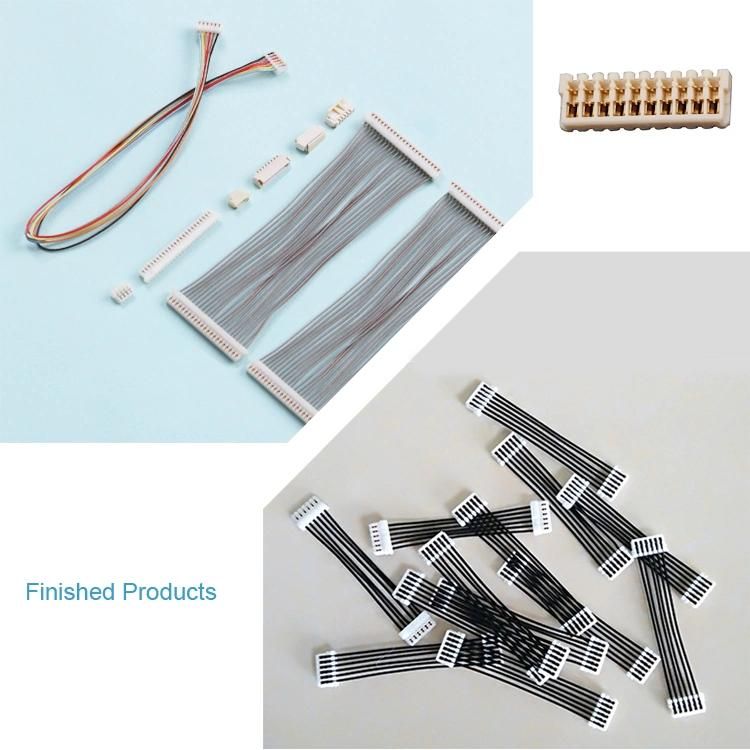

Finished products:






Service:


 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

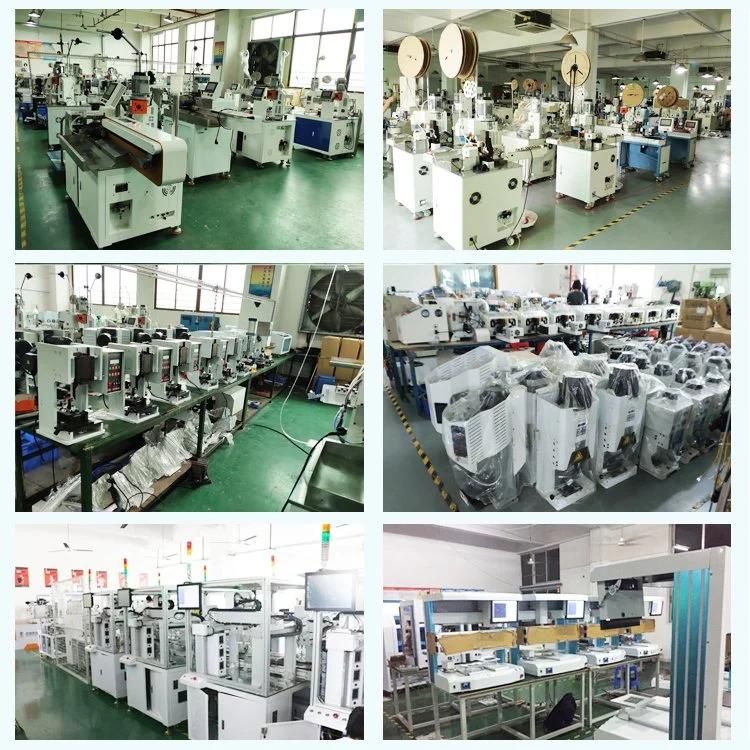

Company info:
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
