Semi Auto Electrical Seal Plug Insert Terminal Crimping Machine (WL-F2000)
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Wire Size：0.2-2.5mm²
Base Info
- Model NO.：WL-F2000
- Stripping Length：0-10.0mm
- Suitable Wire Seals：≤dia.10×10
- Cutting Error：±0.02mm
- Air Pressure：0.5~0.7MPa
- Stroke：40mm
- CT：1 PCS , 3s
- Weight：300kg
- Transport Package：Wooden Carton
- Specification：850*880*1300mm
- Trademark：crown
- Origin：China
- HS Code：8479819000
- Production Capacity：50PCS,Month
Description

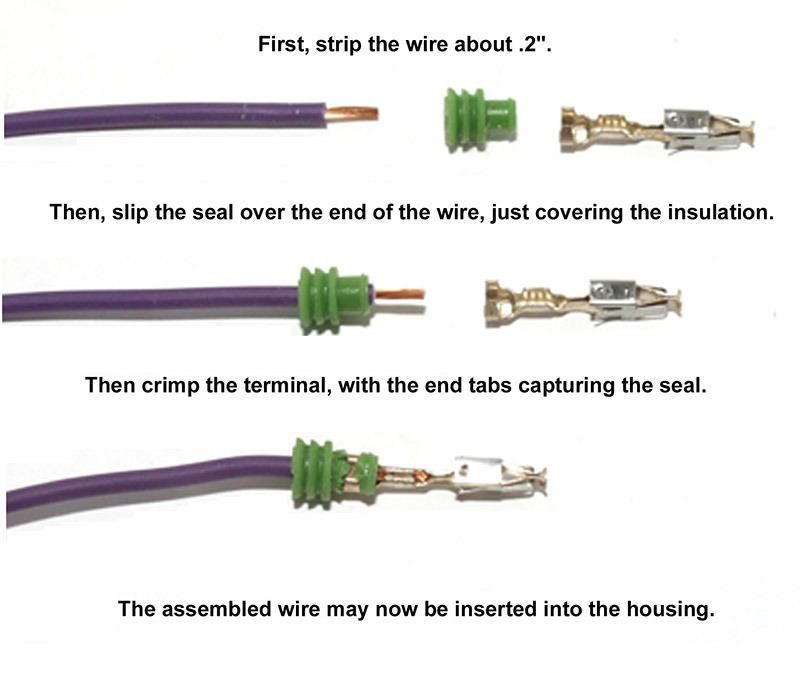

Function: wire rubber seals loading, wire stripping and crimping. Each function can be used independently.
Saving labor and improving working efficiency
Stripping length can be adjusted digitally
Wire seals loading depth can be adjusted according to the data of the glue position between the stripping and the rubber seals
The depth of the crimping end rubber can also be adjusted according to the position of the top line.
The crimping machine adopts high efficiency servo motor drive, which can process high speed crimping with stable pressure
The stripping slide is driven by screw to ensure the peeling length is accurate
The cutting mechanism is driven by motor and screw, and the cutting depth can be adjusted digitally.
The seals feeding structure is simple and easy to replace, meeting the requirements of customers with various types of products.
The machine is easy to operate, stable in quality and concentrated in function.

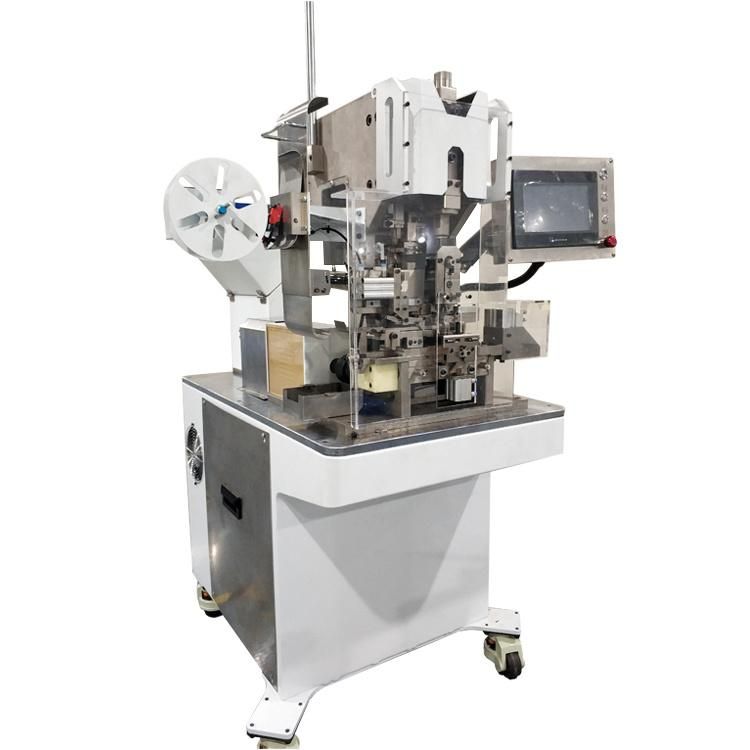

Detail image:

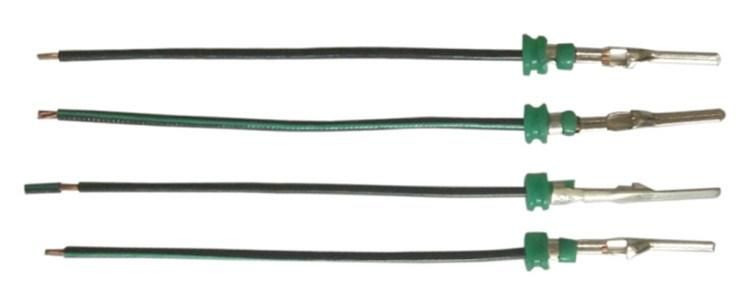

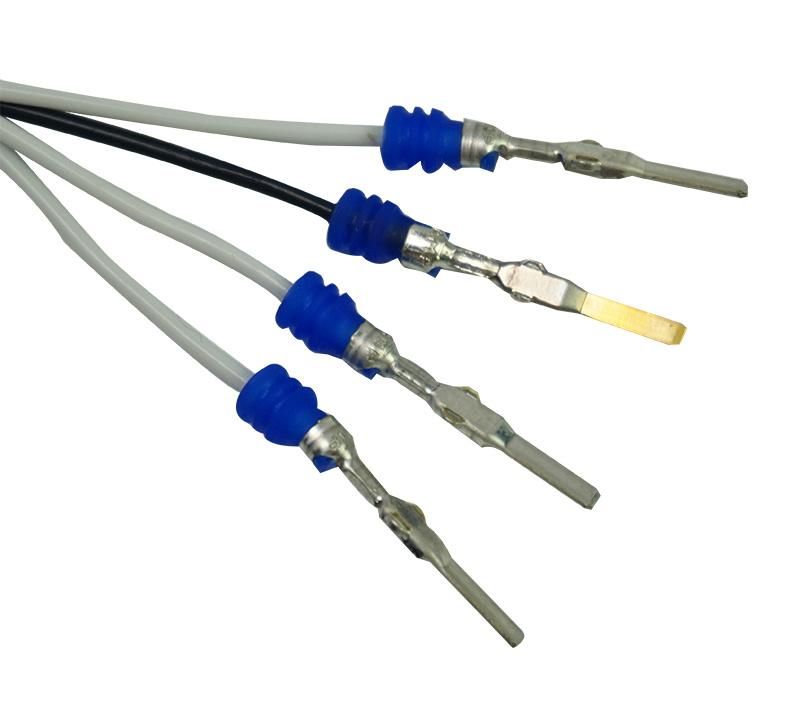

Finished products of this machine below:
Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .
ALso there are many models for your reference.
