• Model NO.：WL-BHT2
• Stripping Length Jacket：Head 0-50, End 0-50 mm
• Cutting Length：1-150000mm
• Productivity：3000 - 8000PCS,Hour
• Drive Mode：4 Wheels Drive
• Weight：28kg
• Power：400W
• Transport Package：Carton
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month

Basic Info.

Model NO. WL-BHT2 Stripping Length Jacket Head 0-50, End 0-50 mm Cutting Length 1-150000mm Productivity 3000 - 8000PCS/Hour Drive Mode 4 Wheels Drive Weight 28kg Power 400W Transport Package Carton Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Product Description

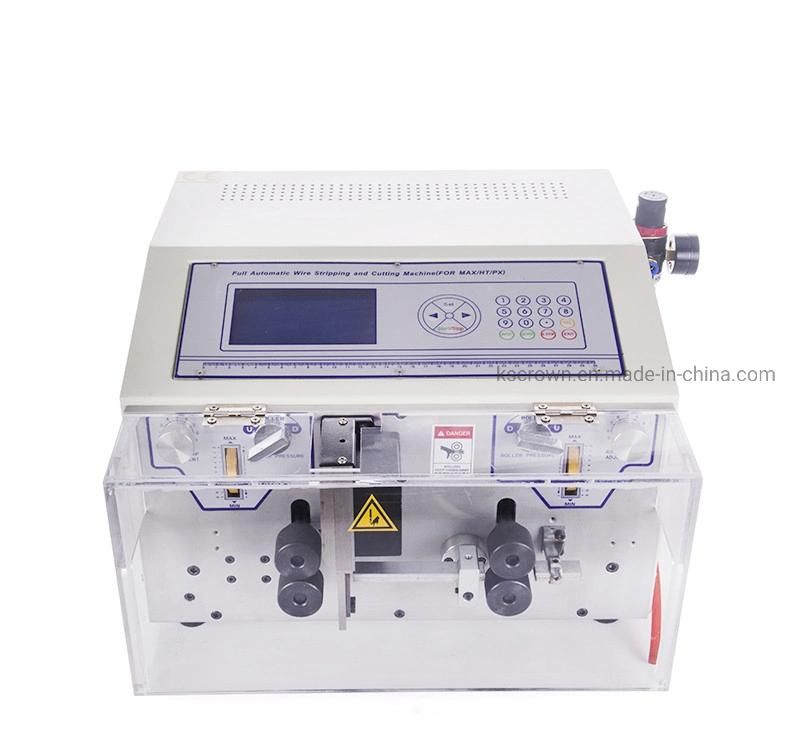

 WL-BHT2 Automatic flat ribbon jacket cable cutting and stripping machine

Feature:
1Mechanical and electrical. Microcomputer for the integration of the fully automatic computer wire stripping machine is a kind of the introduction of Japan, Taiwan and other advanced technology of automatic numerical control equipment.

2.Widely used in electronic industry, automobile industry, electrical appliances, motors, lamps, toys and other kinds of wiring harness processing products. Optimum strip wire line with teflong/PVC/silicone /. Glass fiber, etc.

3.This product USES LCD screen people dialogue mode, has a beautiful appearance, simple operation, convenient maintenance, stable performance, fast speed, high precision characteristics.

4.Wire length can be set freely, according to the customer request to modify, can strip wire of different thickness, also have to row lines, sheathed cable, power cable and casing shear and other functions.



Specifications:


Model	WL-BC	WL-BSD	WL-BE	WL-BJE	WL-BJE2
Type	general	Universal four-wheel drive	thick wire 8sq mm	thick wire 8sq mm	BV single stock, 10 square thick wire
Input Voltage	AC220/ 50HZ	AC220/ 50HZ	AC220/ 50HZ	AC220/ 50HZ	AC220/ 50HZ
Power	160W	200W	300W	300W	500W
Display method	Full Chinese LCD display	Full Chinese LCD display	Full Chinese LCD display	English/Chinese LCD	English/Chinese LCD
Cutting Length	1mm~9999	1mm~9999mm	1mm~9999mm	1~9999mm	1~100000mm
Stripping length	head0-35   tail0-15	head0-35    tail0-15	head0-35  tail0-15	Head0-50   tail0-50	Head 0-50          tail 0-50
Cutting Tolerances	± (0.002xL)	± (0.002xL)	± (0.002xL)	± (0.002xL)mm	± (0.0001xL)
Middle stripping                       cutting section	11	11	11	11	16
Available wire size	0.1~2.5mm2	0.1~4.5mm2	0.1~8mm2	0.1~8mm2	0.2-10 mm2
OD of catheter	¢6	¢6	¢10	¢10	¢13
Applicable wire	PVC, Teflon, glass wire etc	PVC, Teflon, glass wire etc	PVC, Teflon, glass wire etc	PVC, Teflon, glass wire etc	PVC, Teflon, glass wire,,multi-strand steel wire
Tool material	hard tungsten steel (optional)	hard tungsten steel (optional)	hard tungsten steel (optional)	Imported high speed steel	Imported high speed steel
Stripping speed	3000-8000	3000-8000	3000-5000	3000-5000	4000-7000
Drive method	two-wheel drive	four-wheel drive	four-wheel drive	four-wheel drive	four-wheel drive
Weight	30 kg	31 kg	34 kg	34 kg	34 kg
Dimension	54*51*40 cm	54*51*40 cm	54*51*40 cm	54*51*40 cm	54*53*41 cm



Product Show:

Related products:




Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information

 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
