• Model NO.：N350
• Weight：1100kg
• Air Supply：0.5MPa
• Control  Method：PC +PLC
• Range of Temp.：Room Temperature-300
• Solder Pot Temperature：300ºC
• Solder Power：380V 12kw
• Convey Angle：4-7 º
• Solder Pot Capacity：320kg
• PCB  Width：50-300mm
• Transport Package：Wooden Box
• Specification：3300(L)*1400(W)*1560(H)
• Trademark：JAGUAR
• Origin：Shenzhen
• Production Capacity：25sets Per Week

Basic Info.

Model NO. N350 Weight 1100kg Air Supply 0.5MPa Control  Method PC +PLC Range of Temp. Room Temperature-300 Solder Pot Temperature 300ºC Solder Power 380V 12kw Convey Angle 4-7 º Solder Pot Capacity 320kg PCB  Width 50-300mm Transport Package Wooden Box Specification 3300(L)*1400(W)*1560(H) Trademark JAGUAR Origin Shenzhen Production Capacity 25sets Per Week

Product Description

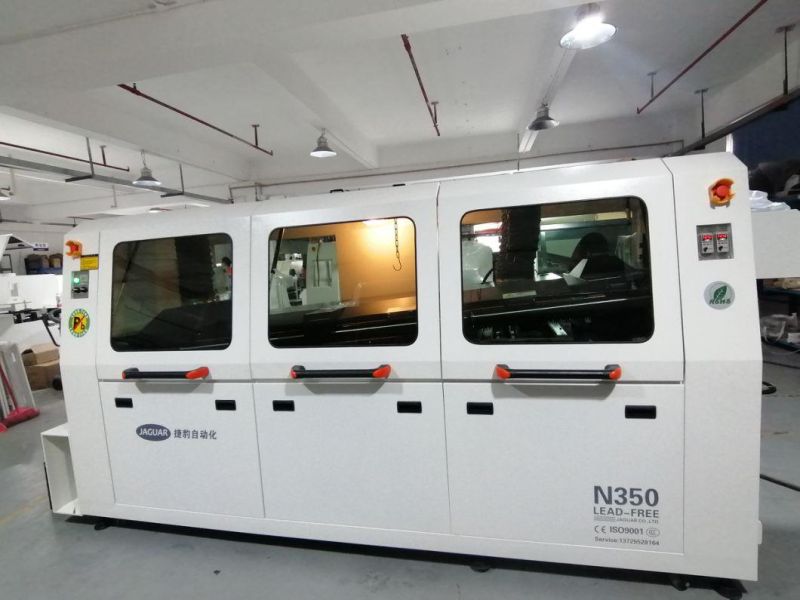

                                  Jaguar N350 lead free wave soldering machine


Specification:

Model No.	JAGUAR N350
Number of heating zones	3
Length of heating zones	1600mm
Body size	3300(L)*1400(W)*1560(H)
Outside dimension	4100(L)*1400(W)*1560(H)
Weight	1100KG
Total/running power	24KW/6-8KW
Air supply	0.5MPa
Preheating method	Micro air
Preheating power	220V 8KW
Control  method	PC +PLC
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free
Solder pot capacity	320KG
Solder pot temperature	300ºC
Solder power	380V 12KW
Solder temp. control method	PID&SSR
Wave crest drive power	1KW 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	50-300mm
Convey speed	300-2000mm/min
Convey direction	L→R (R→L optional)
Convey angle	4-7 º
Flux pressure/capacity	3-5 bar/6.5L


Introduction:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental protection and safety,
easy to clean.
Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.With black box memory function, the machine can always store the production management records, improve work efficiency.Automatic claw cleaning function ensure the cleanliness of claws.
12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
1) This is the first time I use this kind of machine, is it easy to operate?
 There is english manual or guide video that show you how to use machine.
  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
 2) If machine have any problem after I receive it, how can I do ?
 Free parts send to you in machine warranty period.
 If the part is less than 0.5KG, we pay the postage.
 If it exceeds 0.5KG, you need to pay the postage.
 3) MOQ ?
 1 set machine, mixed order is also welcomed.
 4) How can I buy this machine from you? Very easy and flexible !
 A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
 F.Send your order by air or by sea.
 5)Why choose us ?
 A. Gold supplier on Alibaba !
 B. Trade assurance to US$54,000 !
 C. Best price & Best shipping & Best service !
