Automatic Cable Wire Label Winding Machine
Sinrad Technology Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Condition:New
- Voltage:220V
- Packaging Material:Plastic
- Automatic Grade:Semi-Automatic
Base Info
- Model NO.:SR-240S
- Application:Wire Harness
- Weight:86kg
- Power:250W
- Applicable Cable:Diameter 3-12mm
- Applicable Label:Width 4-40mm, Length 20-100mm
- Air Pressure:0.5-0.6MPa (Dry, Clean, Oil Free)
- Transport Package:Plywood Case
- Specification:980*500*960mm
- Trademark:Sinrad
- Origin:China
- HS Code:8479819000
- Production Capacity:50 Sets,Month
Description

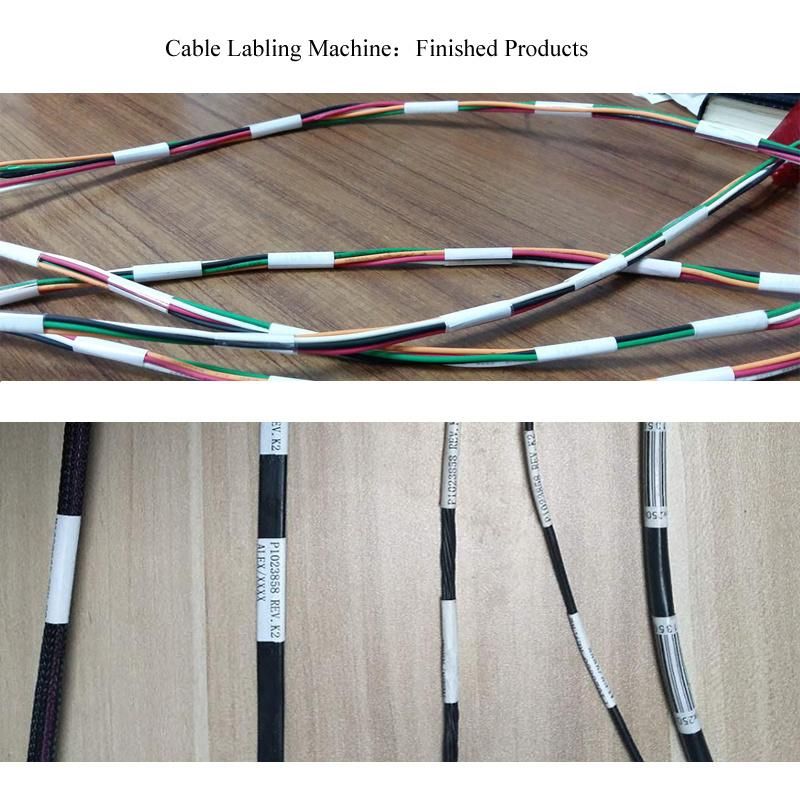

- The automatic wire labeling machine is suitable for round wire, double pin and multi pin wire, flat wire, stranded wire, and scattered wire sharing a machine to automatically label, paste wire and cable labels (barcode labels, warning labels, instruction labels, etc.), Just put the wires and cables on the labeling place, and there is no need to manually support the wires. Step on the pedal machine to automatically label.
- Round wire, flat wire, plugs on both ends, etc. can be used (the wire does not need to be rotated, and the inner wire of the wire will not be damaged). This not only changes the traditional manual labeling method, improves the efficiency of labeling, improves the disadvantages of manual labeling that is prone to uneven size and wrinkles, but also saves 3-5 labor. Improve production efficiency and solve the advantages of slow manual labeling, insufficient accuracy, personnel changes and high labor costs.
- Changing the size of the wire diameter can be easily solved by adjusting the number of labeling rolls.
- Optional printing function, real-time online printing, printing and labeling in one machine.
1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~7days after confirmed order and deposit.
Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

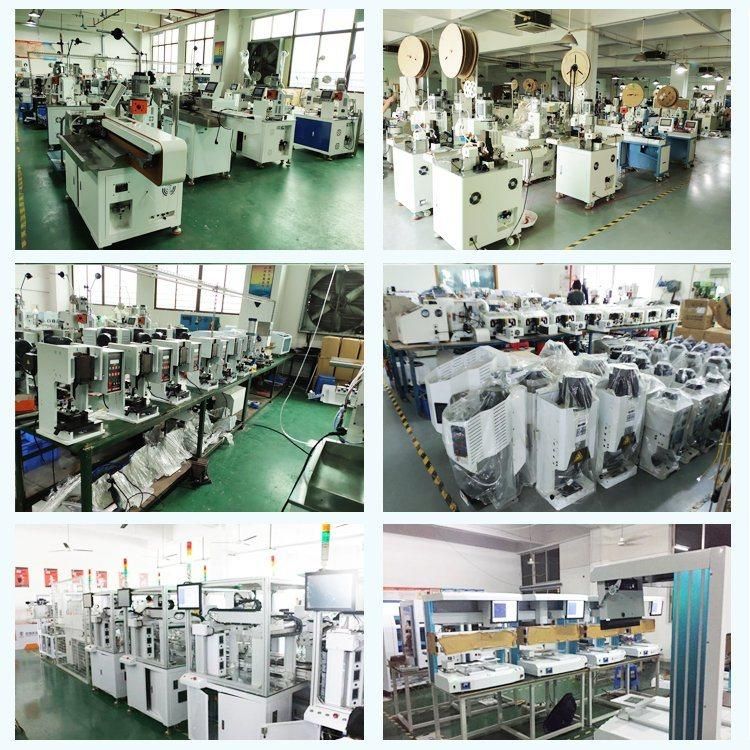

Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
