• Model NO.：JX-350LED
• Type：High-speed Chip Mounter
• Item：Pick and Place Machine
• PCB Size：1200*300mm
• Typical Speed：50000cph
• Position Method：Visual Position
• Component Available：0603 and Above
• Operation System：Windows XP
• Power Supply：220V, 50Hz, 1.2kw
• Weight：520kg
• Dimension：2000*800*1250mm
• Compressed Air：Vacuum Air
• Transport Package：Wooden Box
• Specification：CE
• Trademark：Jaguar
• Origin：China Shenzhen
• HS Code：85151900
• Production Capacity：100PCS,Month

Basic Info.

Model NO. JX-350LED Type High-speed Chip Mounter Item Pick and Place Machine PCB Size 1200*300mm Typical Speed 50000cph Position Method Visual Position Component Available 0603 and Above Operation System Windows XP Power Supply 220V, 50Hz, 1.2kw Weight 520kg Dimension 2000*800*1250mm Compressed Air Vacuum Air Transport Package Wooden Box Specification CE Trademark Jaguar Origin China Shenzhen HS Code 85151900 Production Capacity 100PCS/Month

Product Description

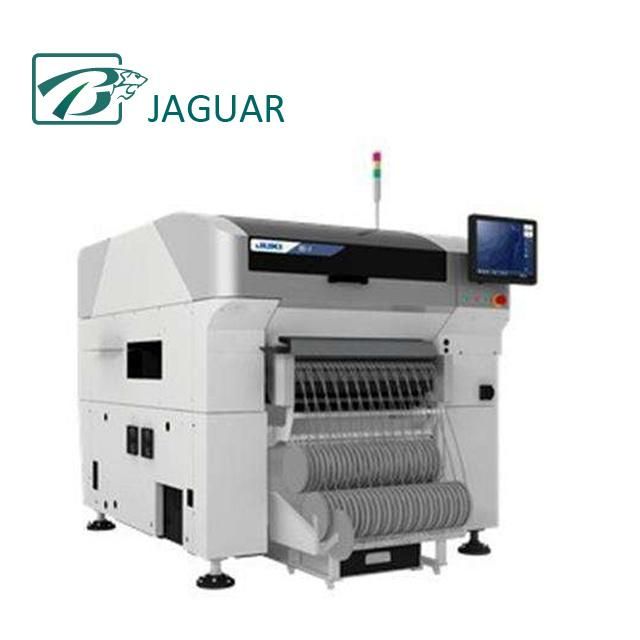

JUKI SMT MACHINE PICK AND PLACE MACHINE Specification:




Model	Jaguar -1204G
Max circuit board size	1200×300mm
Max moving range	X axis  1220mm, Y axis 430mm
Max moving range of Z axis	20mm
Typical Mounting speed	15000cph
Max mount speed	50000cph
Mount accuracy	±0.05mm
Position method	Visual position
Component available	0603and above SMD component and LED
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm, 12mm, 16mm and 24mm(OPT)
suction nozzle	JKUI suction nozzle504,505506
Operation system	WINDOWS XP
Compressed air	Vacuum air in machine
Power supply	220V,50Hz, 1.2Kw
Weight	520Kg
Dimension	2000MM(L)*800MM(W)*1250MM(H)

Main Features:
1) LED Pick & Place Machine adopts Panasonic Servo Motor, imported railway to ensure its stable and accuracy.
2) X.Y axis adopts Panasonic Servo Drive, cooperated with imported liner railway ensures its accuracy and speed.
3) Four mounting heads work simultaneously, much faster. Nozzle above and down adopts imported railway with high precision and durable lifetime.
4) Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
5) Multi Feeder optional, can meet different kinds of LED mounting.
6) Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
7) Software adopts data system, and store different types of PCB for convenient adjustment, just need to programming one time for new products to use forever.
8)  Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
9) LED Pick & Place Machine use imported vacuum detection system, it can check the suction accurately to prevent material leakage and throwing effectively.
10)  Internal negative pressure system: low noise, long service life and vacuum pressure constant.
11) Standard setting:1 PC,8 mounting heads,16 nozzles.
12) Optinal :8mm,12mm,16,,and 24mm automatic feeder, different nozzles, industrial pump, air compressor .
