Multi-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-8030H
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping

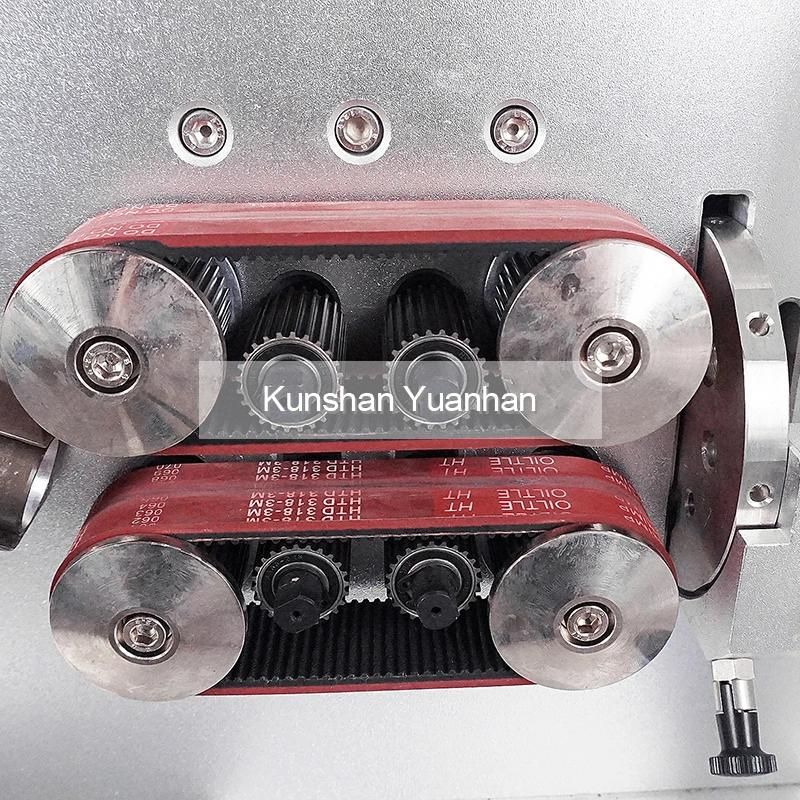

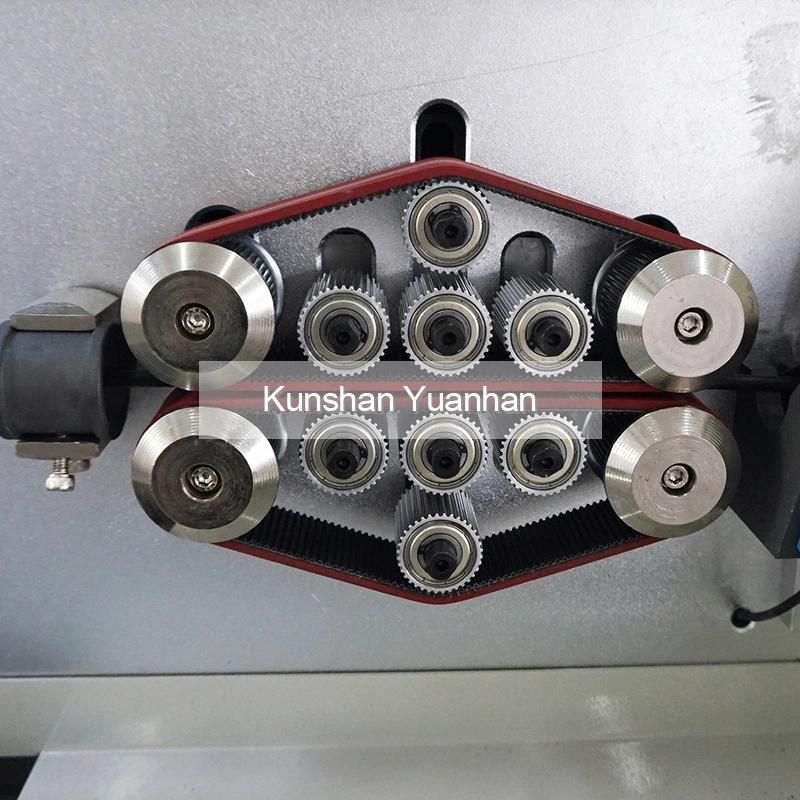

  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：6-30mm2
  • Core Wires：2-8 Cores
  • Head Peeling：Head Peeling Max 120mm
  • Tail Peeling：Tail Peeling Max 240mm
  • Stripping Accuracy：0.01mm
  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：2300PCS,H
  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：1.6kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm²Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max guiding pipe dia.Φ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.

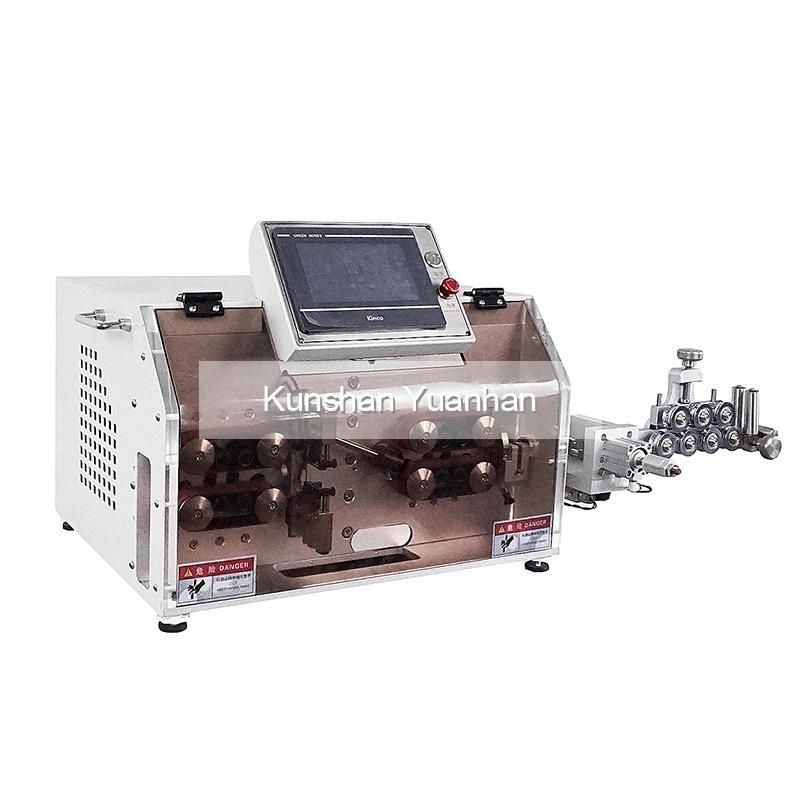

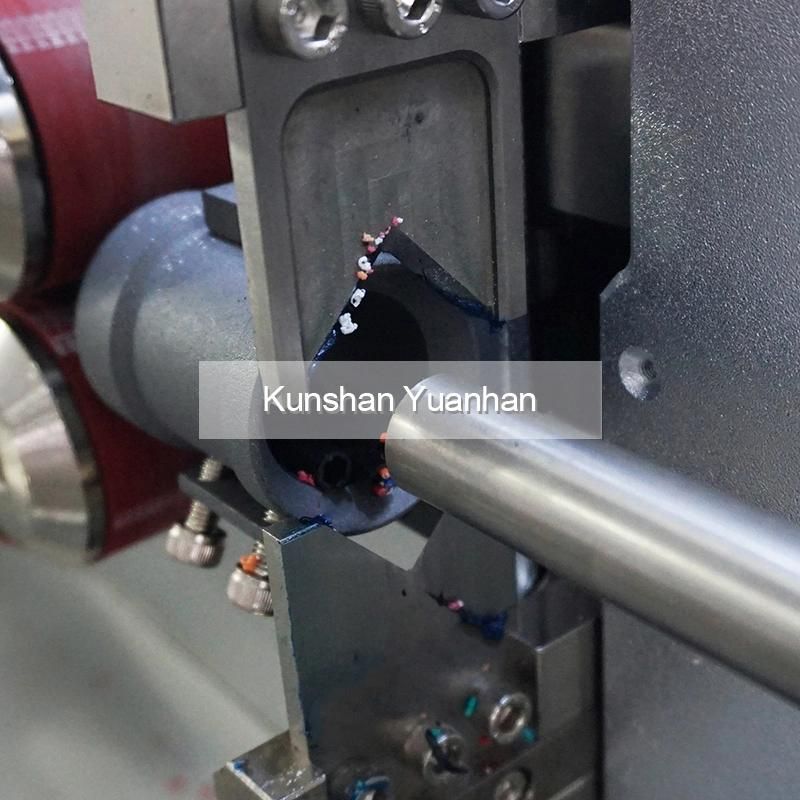

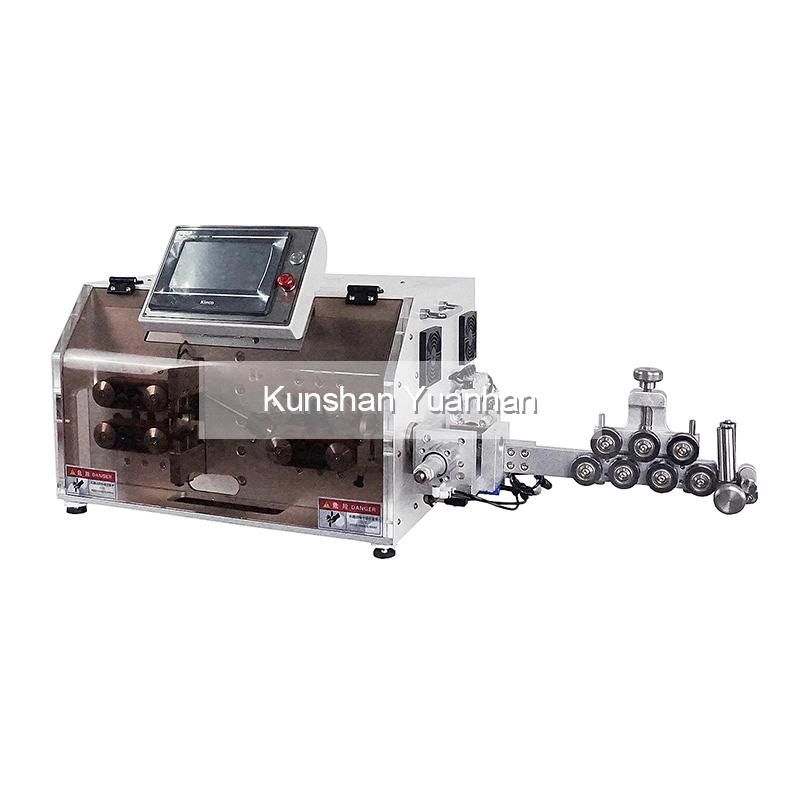

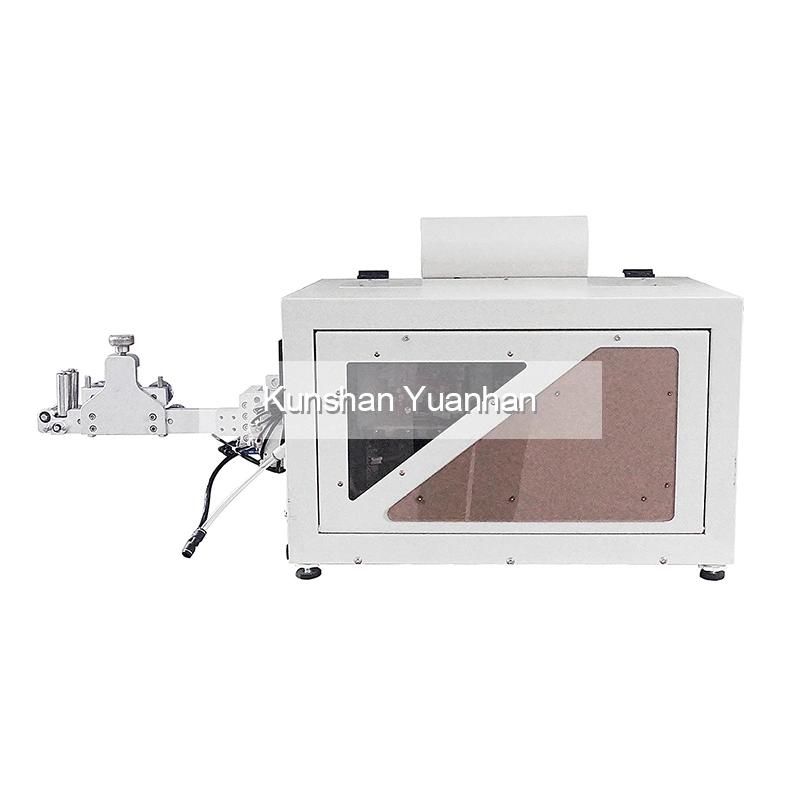

Product Pictures
Multi-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting Machine

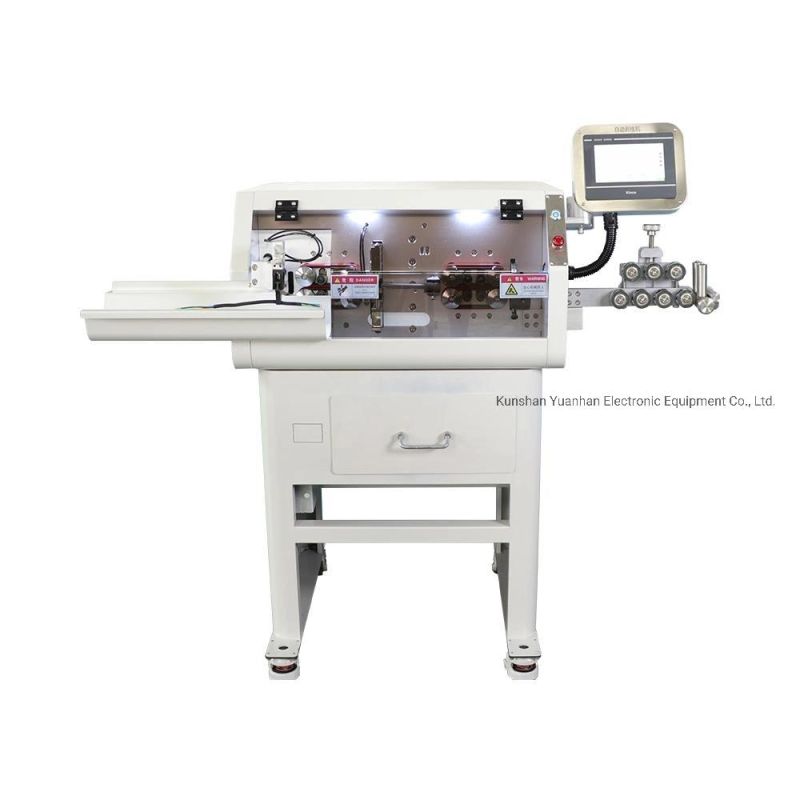

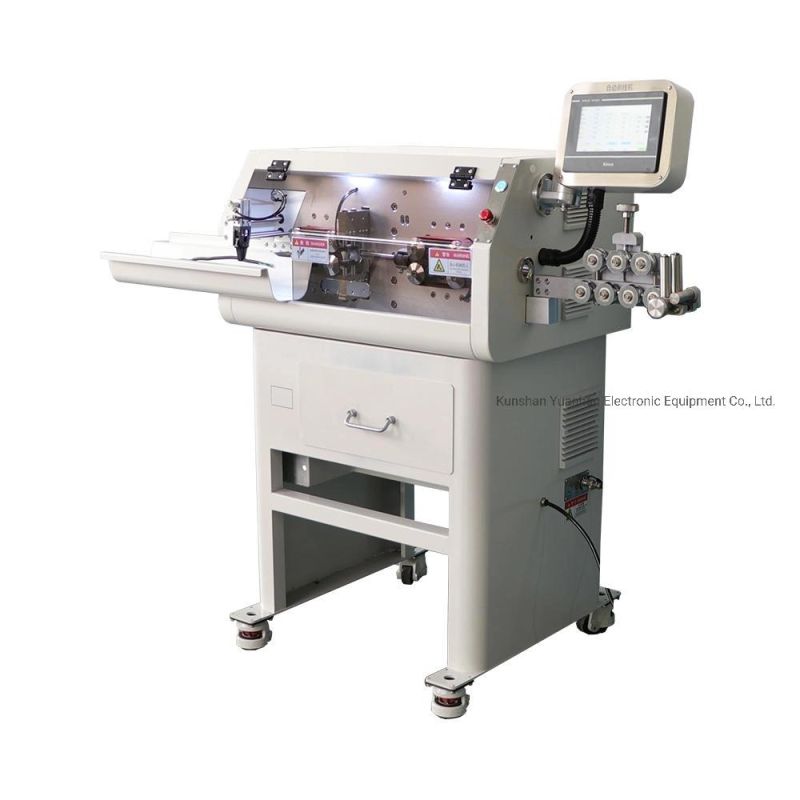

Multi-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting Machine 30 square sheathed wire cutting and stripping both inside and outside.  All-in-one machine, with manipulator + 2 meters of wire take-up frame Multi-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting MachineMulti-Core Sheathed Wire Stripping Cutting Multicore Conductor Cable Cutting Machine



Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

Sample: cut and strip wire automatically


Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

for Sale Small Size Automatic Computer Electrical Electric Cable Stripper Machine Wire Cutting Stripping Machine



Any questions, please feel free to contact us ! Thank you !
