Automatic Wire Cutting and Stripping Machine (WL-B35)
Suzhou Crown Electronic Technology Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Model：Wl-30
Base Info
- Model NO.：WL-B35
- Display：7 Inch True Color Touch Screen
- Function：Cutting and Stripping
- Stripping Length：Head: 1-120mm; Tail: 1-240mm
- Process Wire Type：Sheathed Cables, PVC Cables, etc.
- Stripping Range：6-30mm2
- Conduit Diameter：Dia.13
- Cutting Length：1mm-99999.9mm
- Cutting Tolerance：Within 0.002*L (L=Cutting Length
- Max Catheter Diameter：Dia.16
- Blade Cutting Tool Material：High Quality Imported High Speed Ste
- Capacity：2300PCS,H
- Drive Method：16-Wheel Drive
- Gross Weight：130kg
- Machine Size：63*73*71cm
- Transport Package：Wooden Case
- Specification：63*73*71cm
- Trademark：Crown
- Origin：China, Kunshan
- HS Code：8479819000
- Production Capacity：2300PCS,H
Description
1,500-2,500 per hour This fully automatic wire and cable cutting and stripping machine is suitable for processing of multi-strand copper wires, coaxial cables, and sheathed cables up to 35 sq mm. This machine adopts 8-wheel drive, bilateral pressing wheels, strong power and high precision. The belt feeding system can ensure that the wire surface is not damaged. The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without the need to manually adjust the pressure of the wheels. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program. The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training; the machine also has a three-layer stripping program, which can be divided into three layers, or when the stripping length is long, the maximum number of points Three times of peeling; 100 groups of program memory functions are provided, and the processing parameters of different wires can be stored in different program numbers. It can be equipped with branching jigs, cutting jigs, and ink-jet printers. Our service We provide: · Best products and factory price.
Features:
Packing & Shipping & Payment:
For small and light products packed by cartons,for large and heavy products packed by wooden

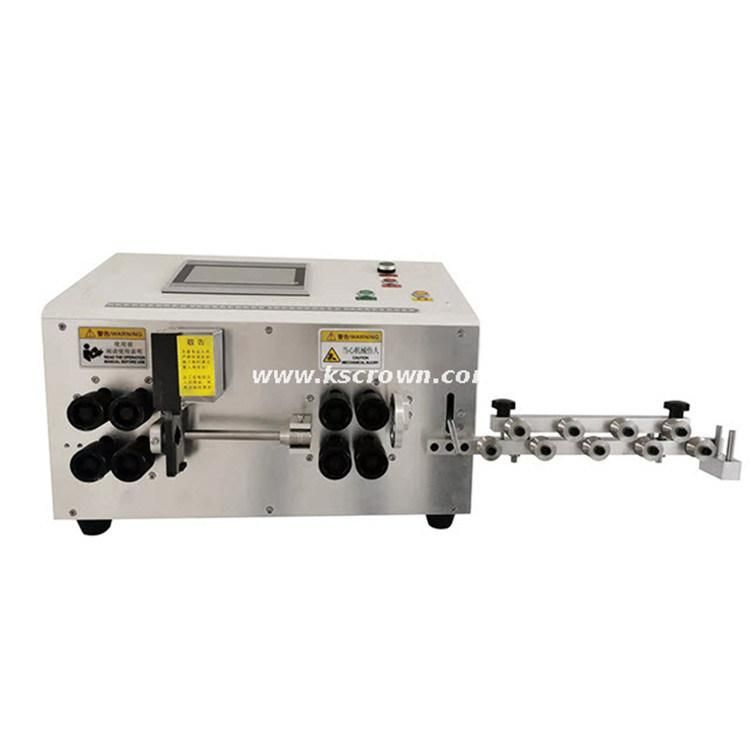

Product show:

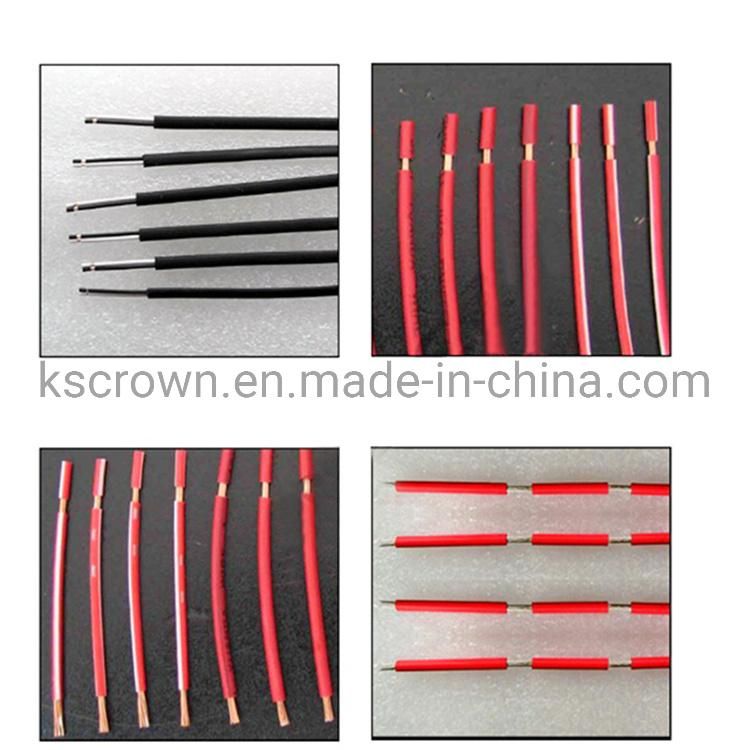

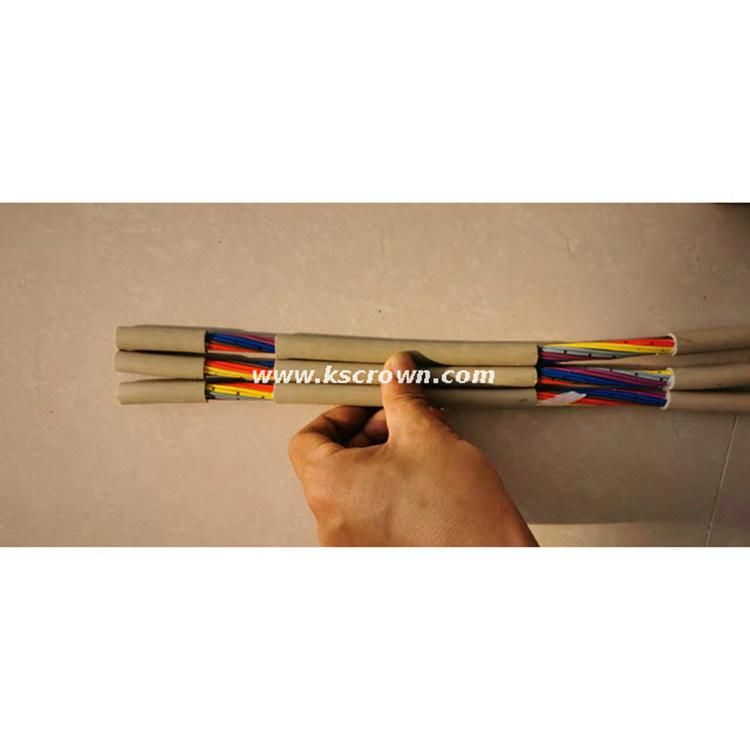

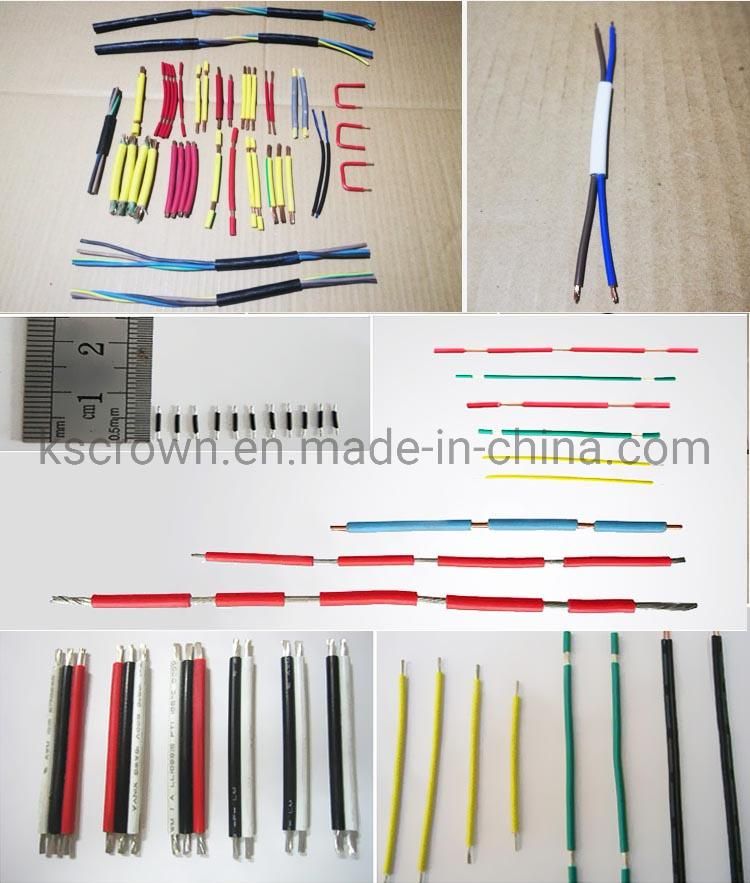

Machine processing wire samples:
Related products:
FAQ:
1.How to order? Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms? We accept trade assurance order, T/T,L/C, western union, Paypal etc. 3.How long does the production time? Generally 3~7 days, if there's customized model or other request will be adjusted. 4.How do you packaged the products? Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
Company information:
Certificate:
Contact:
Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
