• Model NO.：WL-SE3
• Certification：RoHS, ISO, CE
• Warranty：12 Months
• Automatic Grade：Semiautomatic
• Total Video Magnification：30~312X
• Applicable Wire Range：0.01~33mm2 (Max. 120mm2)
• Power Supply：100~240VAC, 50,60Hz
• Dimension：W500 X D350 X H350
• Weight：60kg
• Transport Package：Wooden Case Package
• Specification：600x185x280 mm
• Trademark：Dimension
• Origin：Kunshan City
• HS Code：8479811000
• Production Capacity：10000
• Package size per unit product：106.00cm * 46.00cm * 68.00cm
• Gross weight per unit product：60.000kg

Basic Info.

Model NO. WL-SE3 Certification RoHS, ISO, CE Warranty 12 Months Automatic Grade Semiautomatic Total Video Magnification 30~312X Applicable Wire Range 0.01~33mm2 (Max. 120mm2) Power Supply 100~240VAC, 50/60Hz Dimension W500 X D350 X H350 Weight 60kg Transport Package Wooden Case Package Specification 600x185x280 mm Trademark Dimension Origin Kunshan City HS Code 8479811000 Production Capacity 10000

Packaging & Delivery

Package size per unit product 106.00cm * 46.00cm * 68.00cm Gross weight per unit product 60.000kg

Product Description

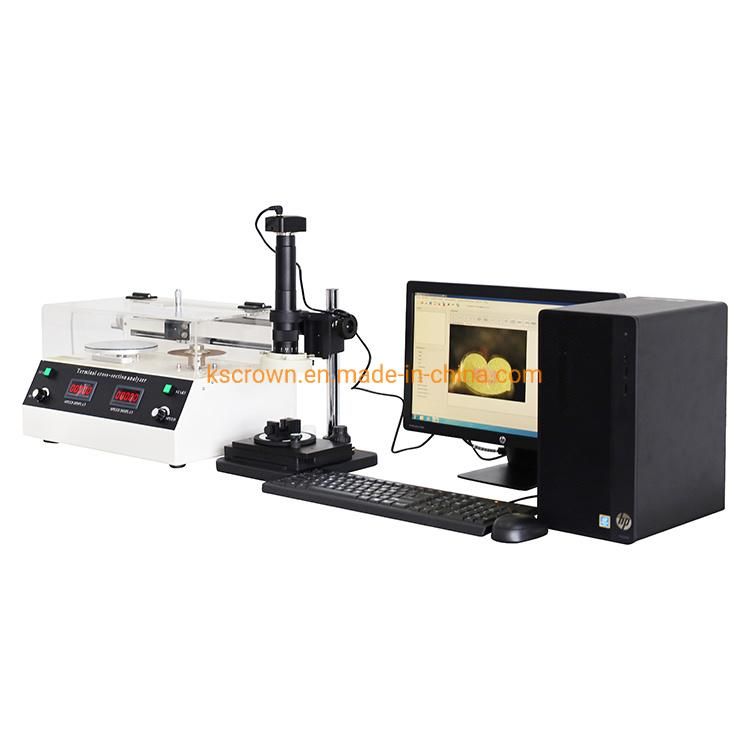

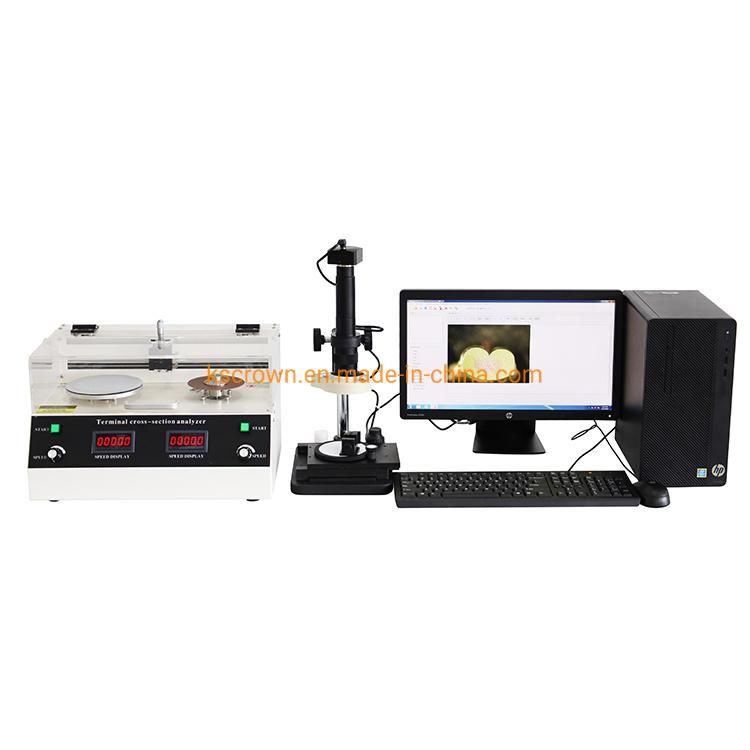

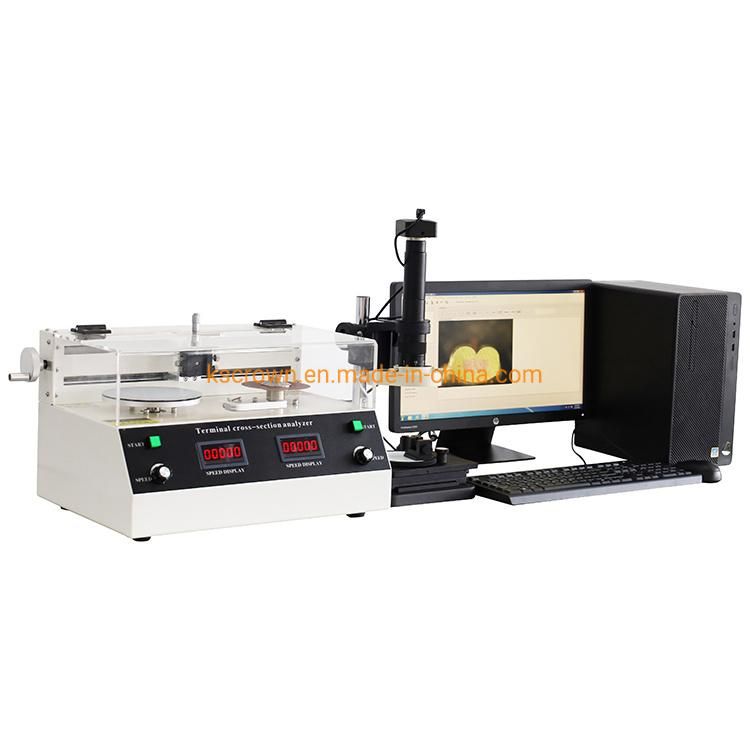

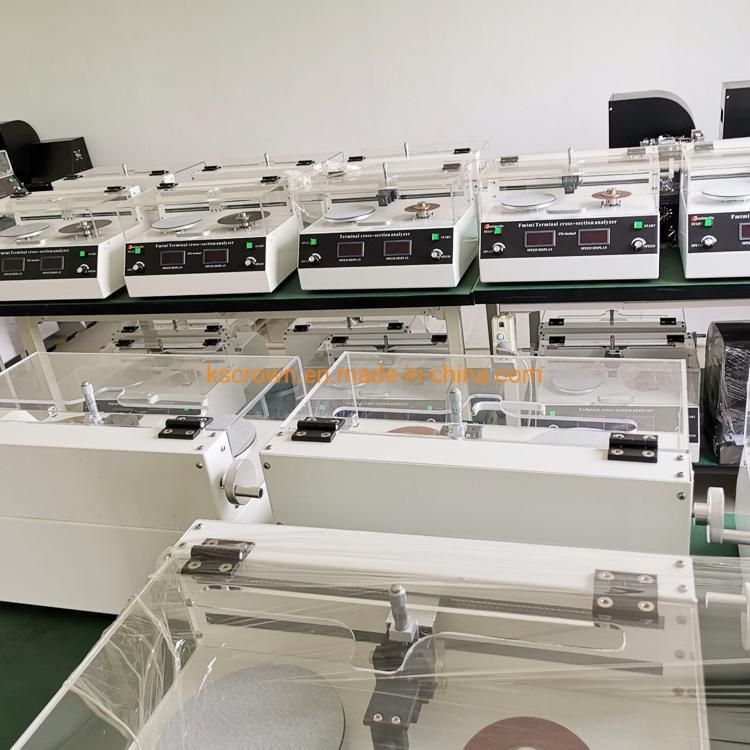

WL-SE3 benchtop terminal cross section analysis instrument

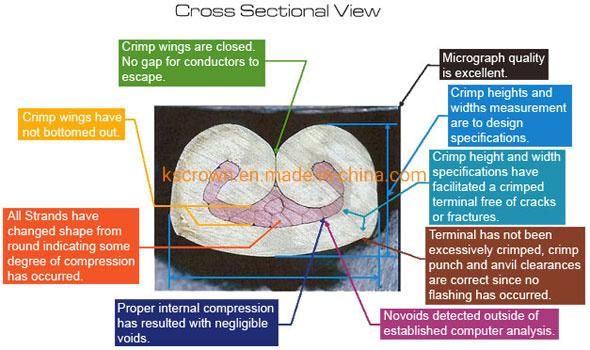

 The terminal cross-section analyzer is designed to detect the quality of crimping terminal. It includes the following modules: terminal fixture, cutting and grinding, corrosion cleaning, cross-section image acquisition, measurement and data analysis, generate data reports. It only takes about 5 minutes to complete the cross-setion analysis of a terminal.

Terminal cross section analysis	Japan imported segmentless zoom optical system
Total video magnification	30~312X
Applivable wire range	0.01~33mm2
Power supply	100~240VAC, 50/60Hz

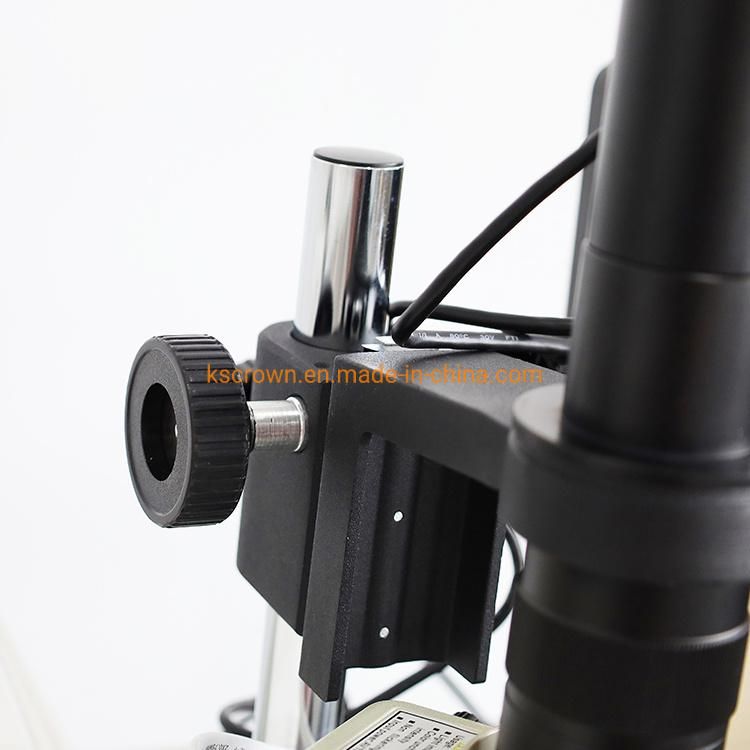

Imaging system	Japanese industrial HD video system 5 million

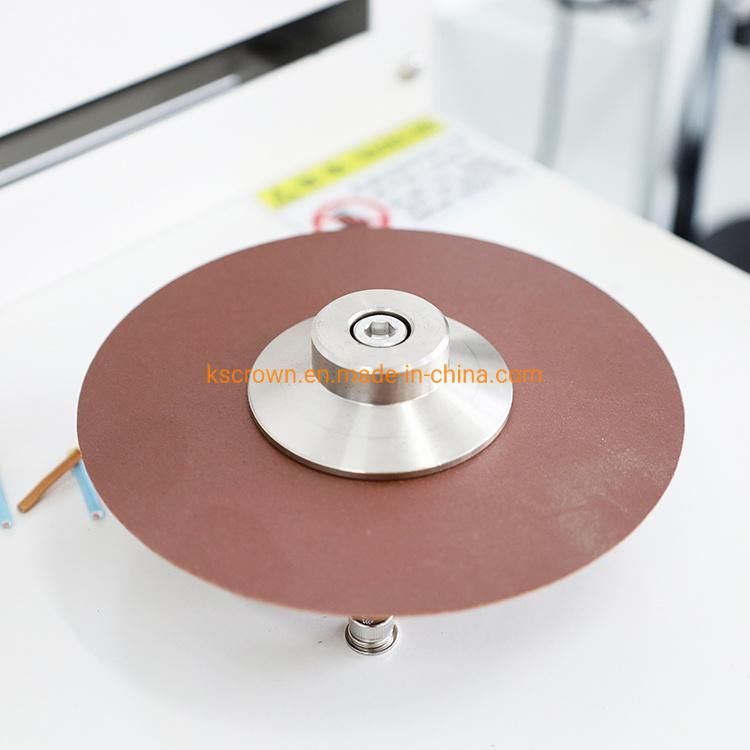

Cut blade specifications	Φ150X0.5mm(Imported from Germany, delicate and durable)

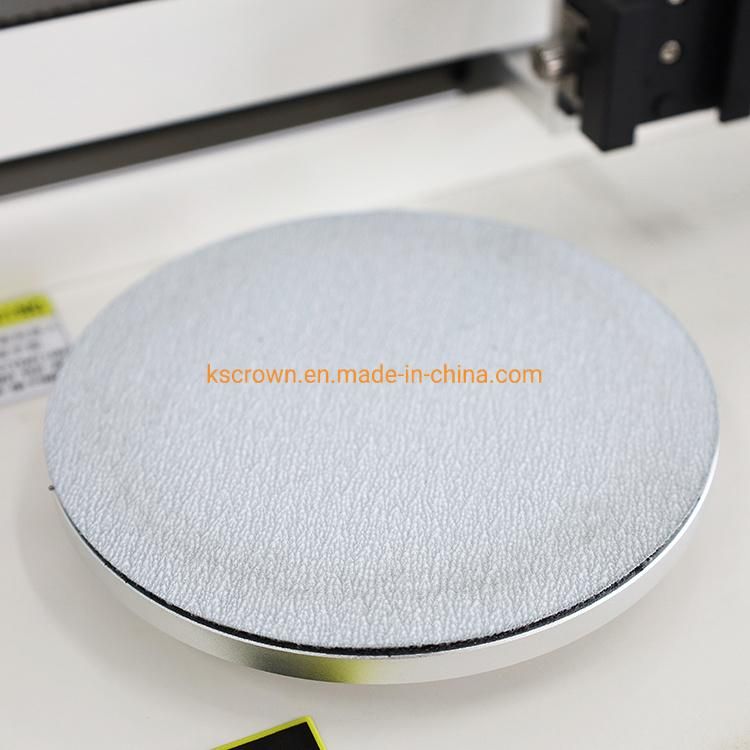

Abrasive sandpaper	1200#

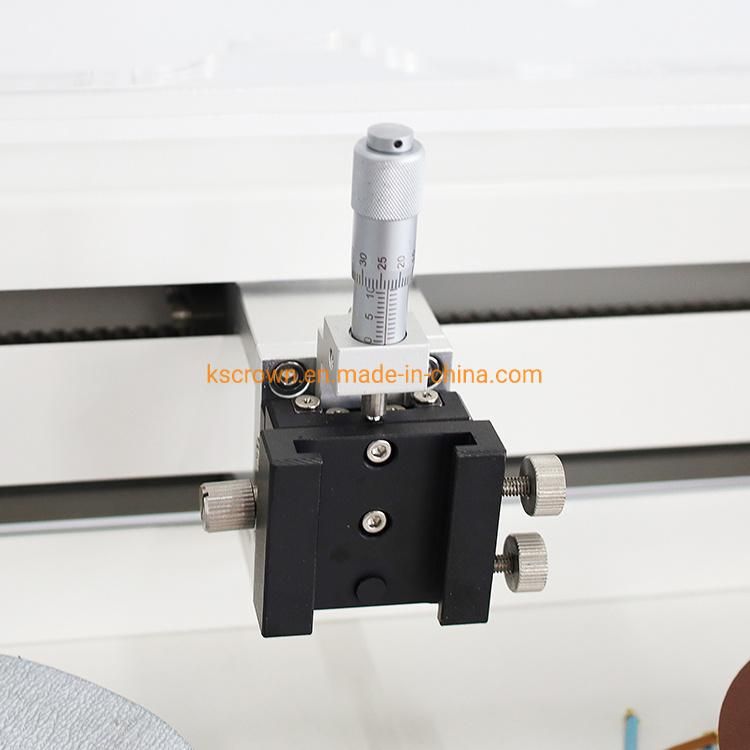

Standard fixture	0.01-33mm2
High-precision reference ruler	0.01/10mm
Terminal corrosion	Liquid cleaning (5S completed)
Lighting source	All white adjustable LED lighting device
Dimensions	W500XD350XH350

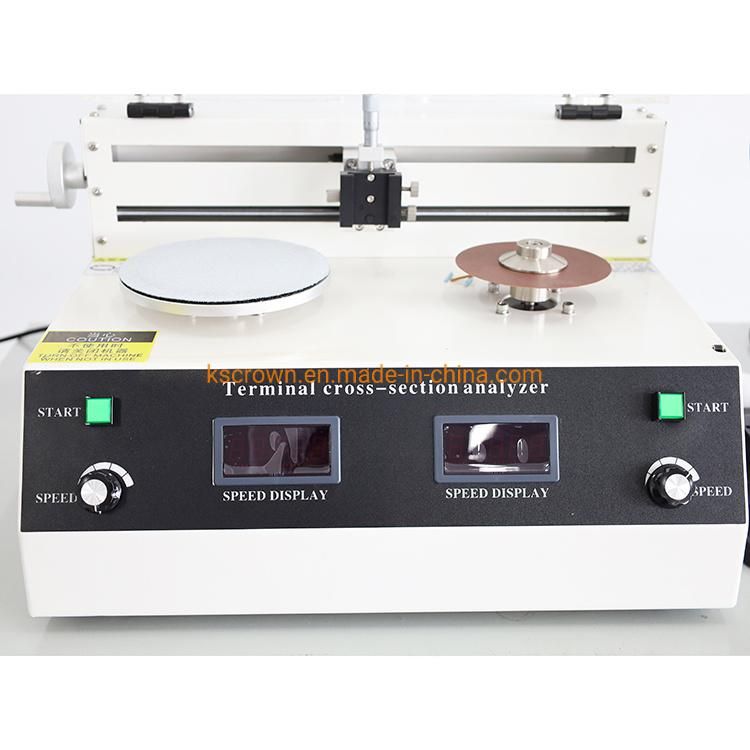

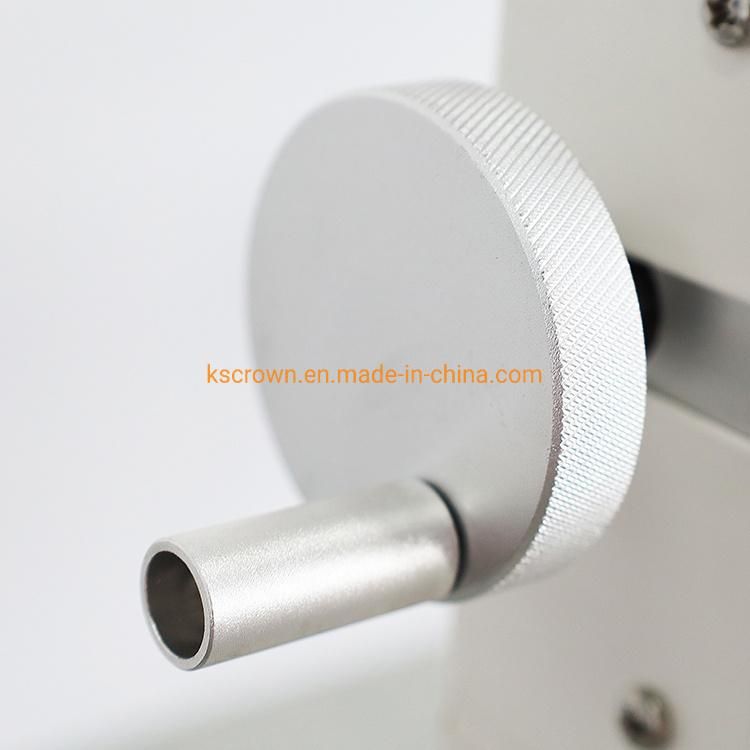

Feature	Precision integrated automatic cutting and grinding equipment,German motor 0~4000rpm stepless speed regulation, professional terminal cross section analysis software Section-MS with encryption lock and CD



• Mainly used for cross section testing of terminal after crimping

• Exquisite and portable in structure design, and easy to operate

• High quality optical instrument with low distortion and image capture module

• Optical instrument with safety protection device, and easy for transportation

• Automatic cutting module, with high-speed grinding module with fine adjustment

• Testing result is automatically generated from the relevant software
