Computer Flat Wire and Color Flat Wire Extrusion Machine
HOOHA Co., LIMITED- Driven Type：Electric
- Condition：New
- Certification：CCC, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Usage：Cable Extrusion
Base Info
- Model NO.：HH-50-26D,HH-70-26D,HH-80-25D
- Motor：Germany-Siemens
- Inverter：Yaskawa
- Bearing：Japan-NSK
- Wire Available：UL2468,2651,2678
- Model Number：Hh-50-26D
- Cylinder Diameter：50mm
- Screw Information：L,D-26:1 10-100rpm
- Extrusion Capacity：80kg,H
- Wire Speed(Max)：200m,Min
- Wire Supply Tray：Below 300mm
- Extrusion Motor：15HP Motor Controlled Inverter
- Combined Number：1-16
- Capstan Power：3HP
- Take-up Wire Motor：1.5kw Motor
- Transport Package：Plastic Packing
- Specification：CE ISO
- Trademark：HOOHA
- Origin：Dongguan China
- HS Code：8477209000
- Production Capacity：10 Sets,Month
Description
Team of HOOHA serviceName Education Position Mainly responsible for project Specializing in project Industry working history ( year ) zanyang Xie college General Engineer The total project design and planning power cable machine 15 xiaohua Hu college Vis general engineer The total project design and planning net cable,data cable machine 10 Changhong Cheng college Engineer Drawings and after-sales service Teflon,Optical fiber cable machine 25 xiuwu Chen college General Engineer The total project design and planning copper drawing machine 15 lixin Yuan college Engineer The project design and planning coppwer wire making technical 16 zhenghai Qiu college cable engineer After service cable making and cable factory management servie 15 jinxin Liu college Marketing engineer After service electrical engineer 7 xingguo Tang High school Electrical engineer After service electrical engineer 10 changqiang Li High school Maintain engineer After service machina maintain and install service 10 haipin Li University Engineering director Marketing and sales project consulting 8 sen Yang University Engineering translator Marketing and sales project consulting 5
2. Certificate:

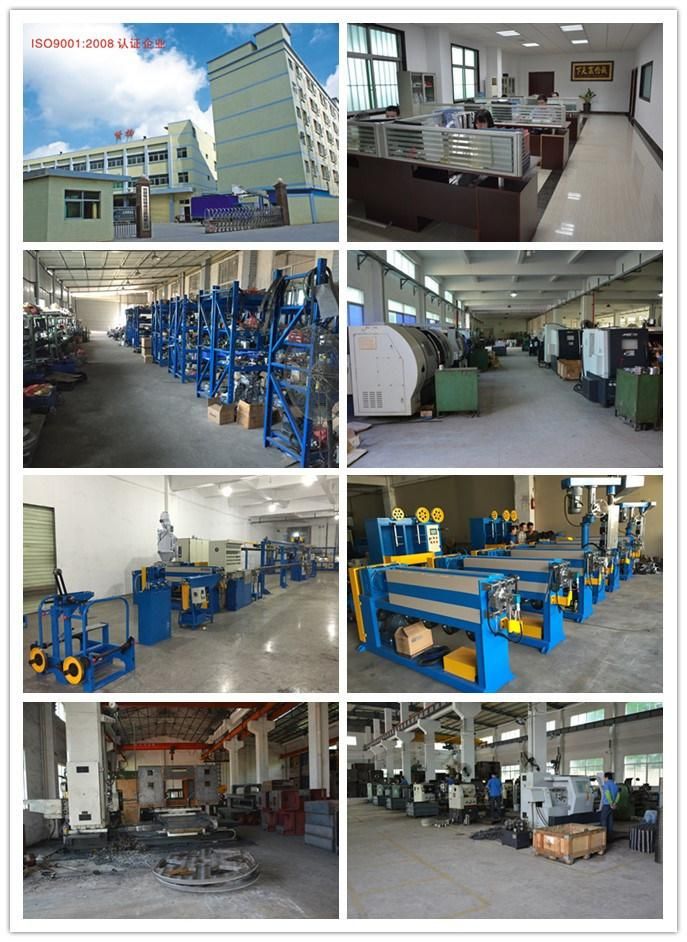

3. Factory and Office:
4. Application:
Specializing in producing computer flat line such as UL2488,2651,2678.
5. Features:
Machine head adopts automatic type and special line-storing set. Because of Taiwan technology's introduction and out many year's making experience, we elevates line's extrusion speed, solving many problems such as thickness's inequality, poor adherence, stress's inequality, copper wire's shrinking after cutting, wire-cutting numbers and lower defective index. It is the best choice for manufacturers of flat cable.
6. Technical Parameter:
7. After-sales Service
1).Delivery dates:45 days
2).Payment:TT or L/C
3).Packing: plastic packing to ensure the goods' safety during the transportation.
4).Install and training service:2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.
8.Contact information:
Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China
9. Where we are:
Hongkong airport to Humen by boat: 2 hours
Guangzhou airport to Humen by car: 2 hours
Shenzhen airport to Humen by car: 1 hour
Guangzhou South high speed train station to Humen: 20 minutes
Shenzhen North high speed train station to Humen: 20 minutes
2. Certificate:
3. Factory and Office:
4. Application:
Specializing in producing computer flat line such as UL2488,2651,2678.
5. Features:
Machine head adopts automatic type and special line-storing set. Because of Taiwan technology's introduction and out many year's making experience, we elevates line's extrusion speed, solving many problems such as thickness's inequality, poor adherence, stress's inequality, copper wire's shrinking after cutting, wire-cutting numbers and lower defective index. It is the best choice for manufacturers of flat cable.
6. Technical Parameter:
| Machine type | HH-50-26D | HH-70-26D | HH-80-25D |
| Cylinder diameter | φ50mm | φ70mm | φ80mm |
| Screw information | L/D-26:1 10-100rpm | L/D-26:1 10-80rpm | L/D-26:1 10-70rpm |
| Extrusion capacity | 80kg/h | 140kg/h | 200kg/h |
| (Max) Line speed(Max) | 200m/min | 150m/min | 150m/min |
| Wire supply tray | below 300mm | below 300mm | below 300mm |
| Extruder motor | 15HP motor controlled inverter | 30HP motor controlled inverter | 40HP motor controlled inverter |
| Combined number | 1-16 | 1-64 | 1-80 |
| Capstan power | 3HP | 5HP | 7.5HP |
| Take-up line motor | 1.5kw motor | 2.2kw motor | 3.7kw motor |
7. After-sales Service
1).Delivery dates:45 days
2).Payment:TT or L/C
3).Packing: plastic packing to ensure the goods' safety during the transportation.
4).Install and training service:2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.
8.Contact information:
Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China
9. Where we are:
Hongkong airport to Humen by boat: 2 hours
Guangzhou airport to Humen by car: 2 hours
Shenzhen airport to Humen by car: 1 hour
Guangzhou South high speed train station to Humen: 20 minutes
Shenzhen North high speed train station to Humen: 20 minutes
