• Model NO.：WL-S01
• Warranty：12 Months
• Automatic Grade：Automatic
• Wire Size：AWG16-AWG30
• Stripping Length：0.1-15mm on One End
• Cutting Lenght：45-99999mm
• Productivity：4000PCS,Hour
• Air Pressure：0.4-0.6MPa
• Cutting Wire Accuracy：0.01*Lmm (L =Cutting Length )
• Transport Package：Wooden Carton
• Specification：1600*900*750mm
• Trademark：crown
• Origin：China
• HS Code：8479819000
• Production Capacity：50PCS,Month
• Package size per unit product：76.00cm * 96.00cm * 170.00cm
• Gross weight per unit product：380.000kg
• Lead Time：7 days (1 - 2 set) To be negotiated ( > 2 set)

Basic Info.

Model NO. WL-S01 Warranty 12 Months Automatic Grade Automatic Wire Size AWG16-AWG30 Stripping Length 0.1-15mm on One End Cutting Lenght 45-99999mm Productivity 4000PCS/Hour Air Pressure 0.4-0.6MPa Cutting Wire Accuracy 0.01*Lmm (L =Cutting Length ) Transport Package Wooden Carton Specification 1600*900*750mm Trademark crown Origin China HS Code 8479819000 Production Capacity 50PCS/Month

Packaging & Delivery

Package size per unit product 76.00cm * 96.00cm * 170.00cm Gross weight per unit product 380.000kg Lead Time 7 days (1 - 2 set)
To be negotiated ( > 2 set)

Product Description

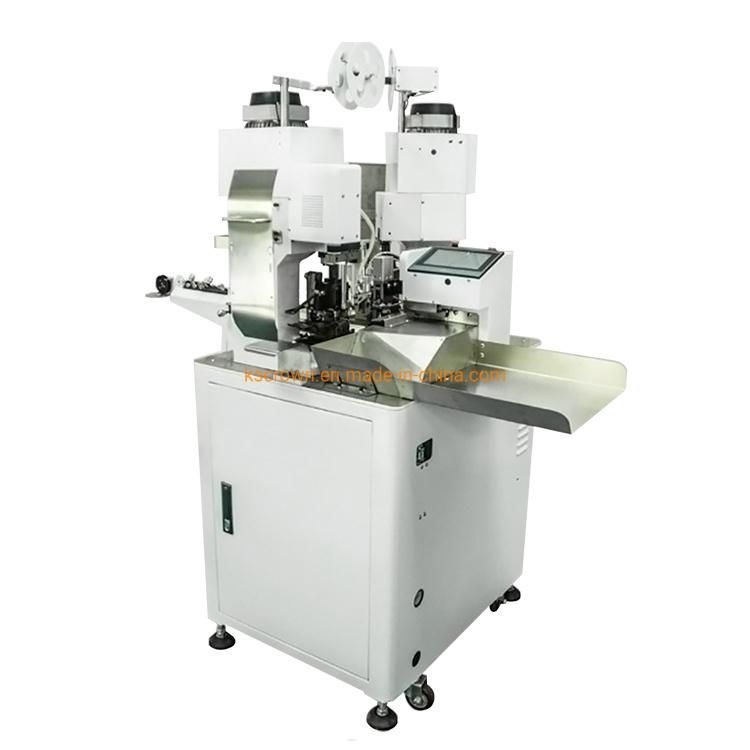

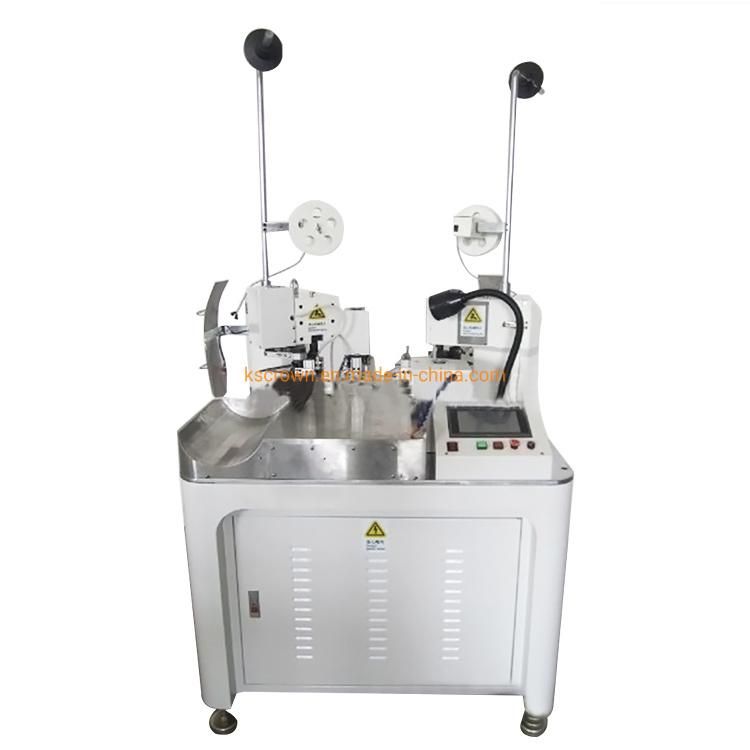

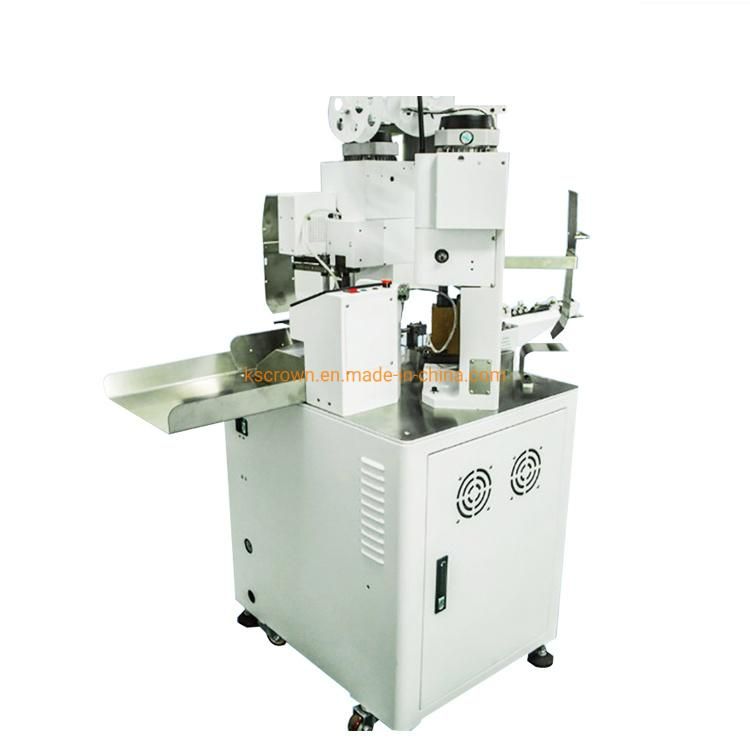

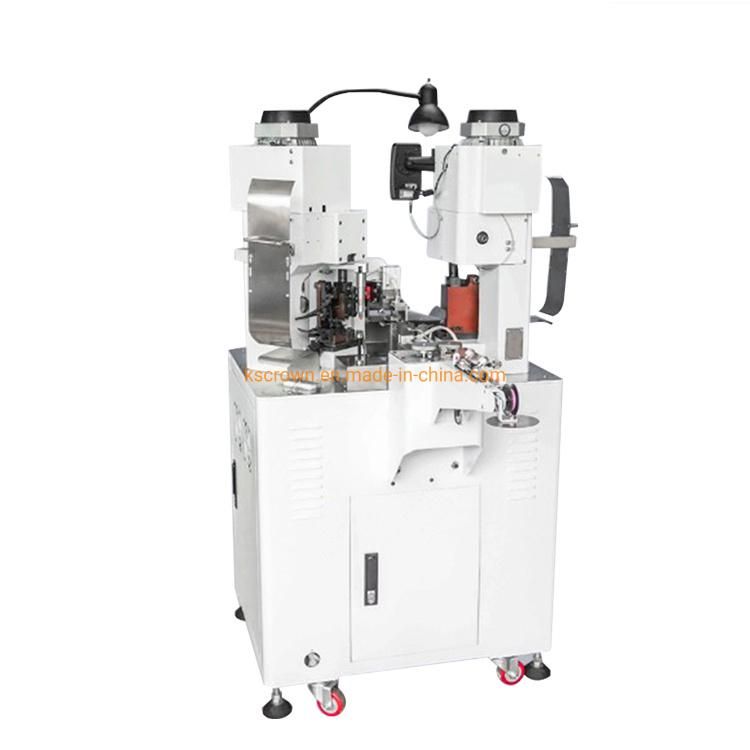

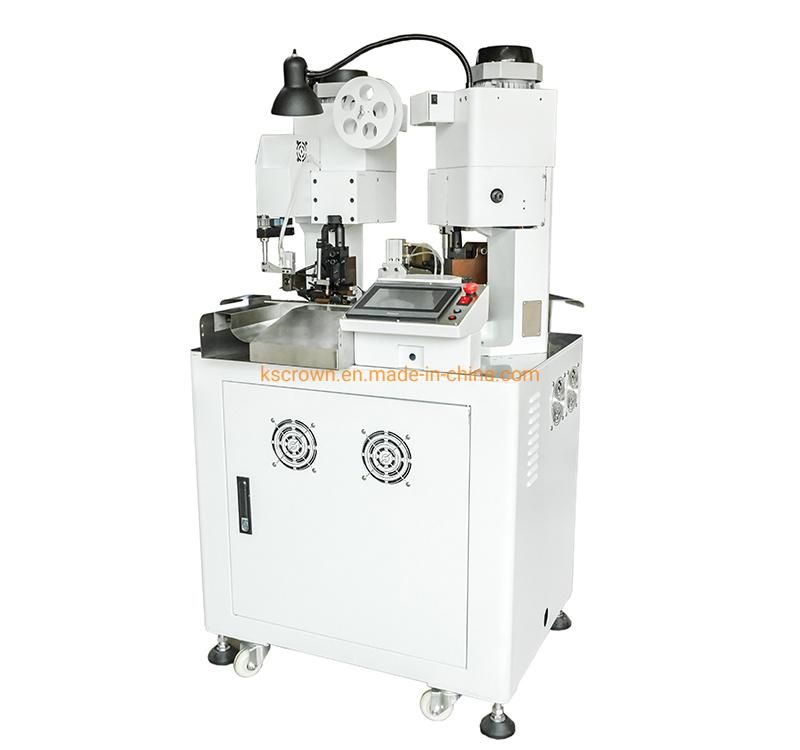

Fully automatic double ends electrical cable wire stripping terminal crimping machine(WL-S01)



This seriese of machines can cut, strip, crimping terminals for both end, for single wire, double wire or ribbon cable.

And we can customise for you for different wire cable size.

Just tell us your requirement, ODM or OEM terminal crimping machine is welcome.



Specifications:

Product Name	Automatic double head terminal crimping machine
Model	WL-S01
Power Supply	AC220V/50HZ/60HZ Single Phase
Mechanical function	wire cutting, single end stripping,  double- end stripping,  single and double head crimping
Capacity	4000 pieces/hour (within length 300mm)
Processing Range	AWG16#/-AWG30#
Cutting wire length	45-99999mm
Cutting wire accuracy	0.001*Lmm (L refers to the length of the cut line)
Stripping length	0.1mm-15mm on one end
Air pressure	0.4-0.6MPa
Detecting device	pressure detection, presence of wires, presence  of terminals Terminals without pressure, stripping detection
Appearance size	160x70x80cm
Machine weight	130KG

Detail image:

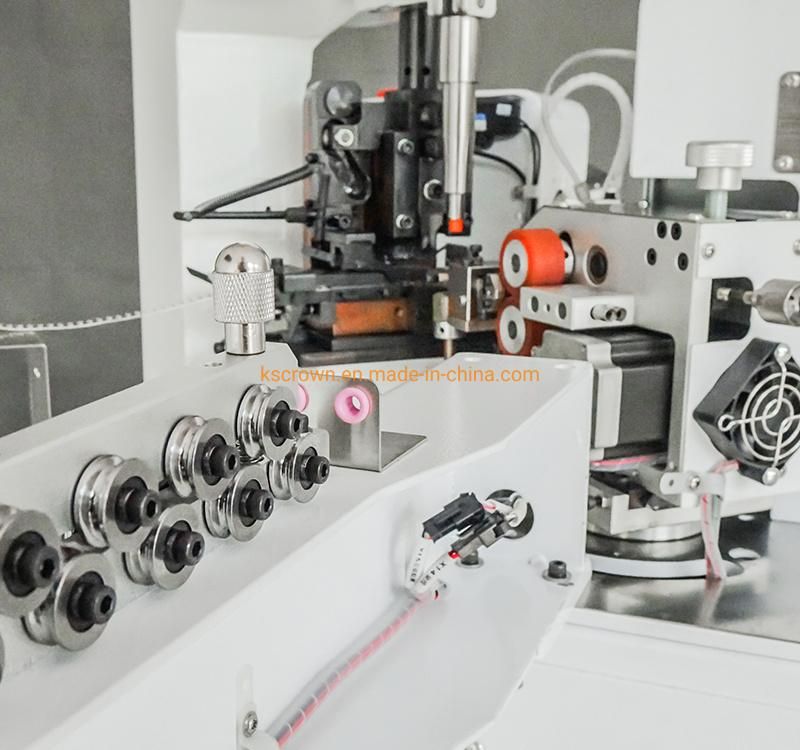

A wire feeding mechanism equipped with an accurate pulse signal electronic control unit,
It can control the cutting tolerance to less than 0.2% of the total length.
To achieve a higher standard quality of processed products,
You only need to replace the wire guide to change the wire type.
Convenient and fast, suitable for AWG18#-28# electronic line.

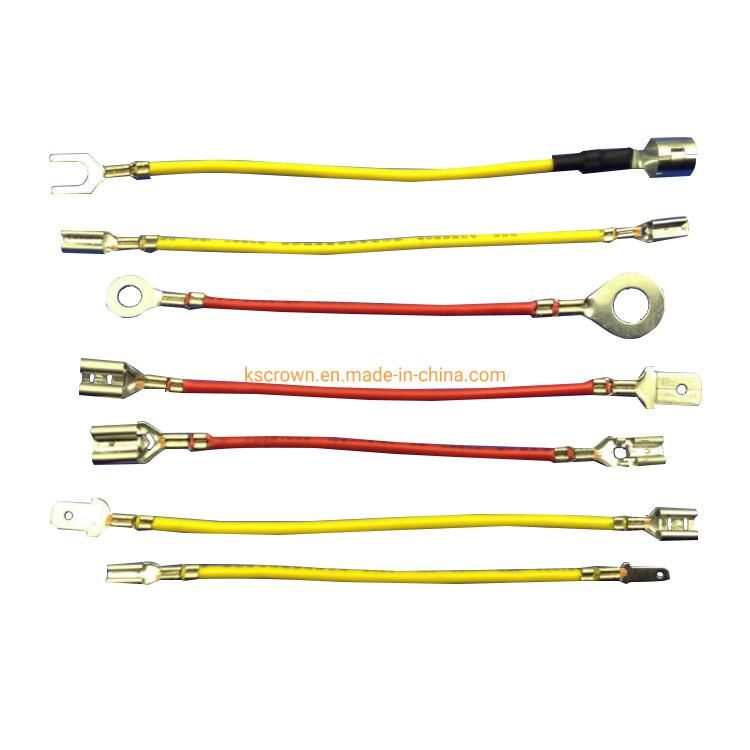

Finished products of this machine below:

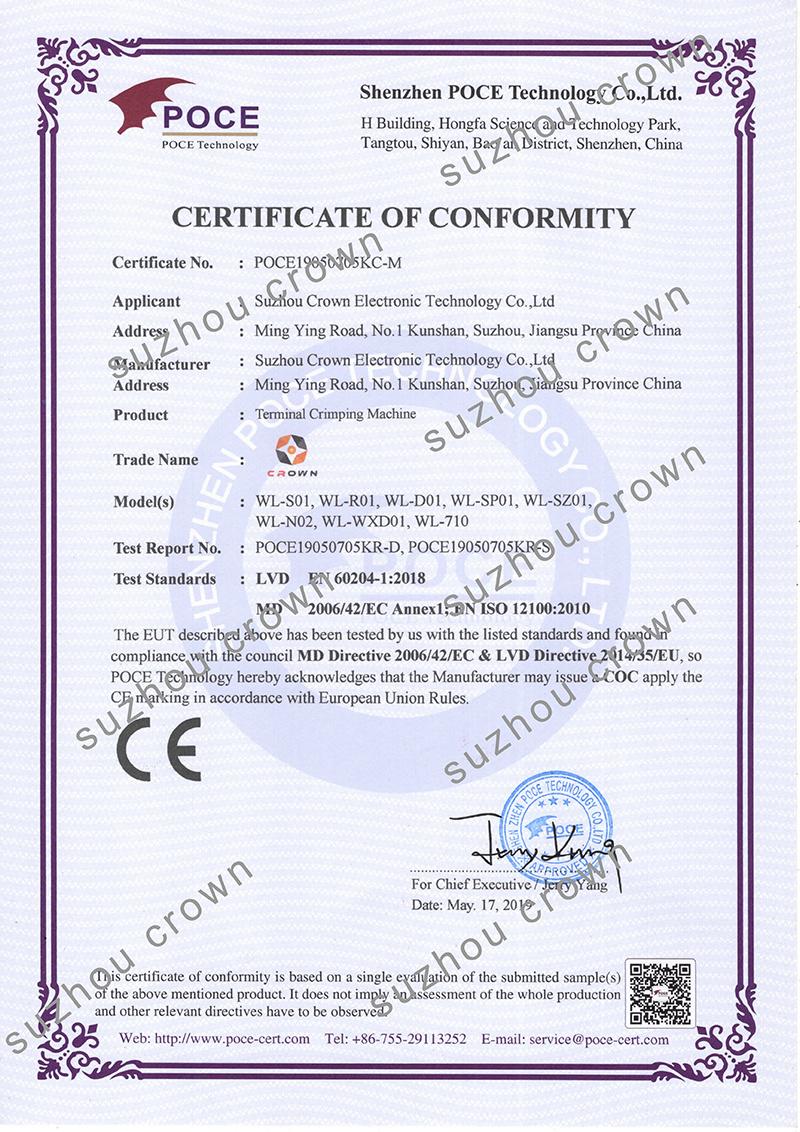

Certification below



Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .

ALso there are many models for your reference.

You may also like





Company Information



packing & shipping





 Our service

1. On-time delivery and the shortest delivery time.

2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.

3.OEM and customized service.


---Purchase guidance


If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.


---Technical Support

User manuals will go with relative machines.

If you have any problem with operation, please feel free to contact us.


---QC Check before shipment

All products will be checked before delivery.
