• Model NO.：GEM-50MM,70MM,80,90,120MM
• Specification：CE ISO SGS
• Trademark：GEM
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：5 Sets,Month

GEM YOUNG POWERFUL SERVICE TEAMNamePositionworking experienceMain research successful projectzanyang XieGeneral engineer10 yearsDrawing and designerpower cable machinexiaohua HuVice general engineer8 yearsDesignercate5 cable machinejingxin Liucable technology engineer15 yearscable making designerteflon cable machineweihua Lielectrical engineer7 yearselectrical researchover seas machine installkangyou Wuproduce manager6 yearsproduct producecar cable machineJacksells manager5 yearsexport service 3 times overseas after service


2.GEM Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

3.Technique Specifications:
Line data:
- Process material: PVC/XLPE
- Process solution: single layer/ color stripping
- Conductor section: 0.75mm2to 10mm2 (single core)
                   Or up to 4 X 6 mm2multi core cable
- Insulation thickness: 0.5mm---1.5mm
- Size after insulation: 1.5mm---15mm
- Linear speed: Max. 450m/min (based on the cable diameter)
- Line axis height: 1000mm
- Machine color: Based on customer's requirement
- Machine direction: Based on customer's requirement
- Power: 3P/ 380V / 50Hz
- Total line length: about 30 m

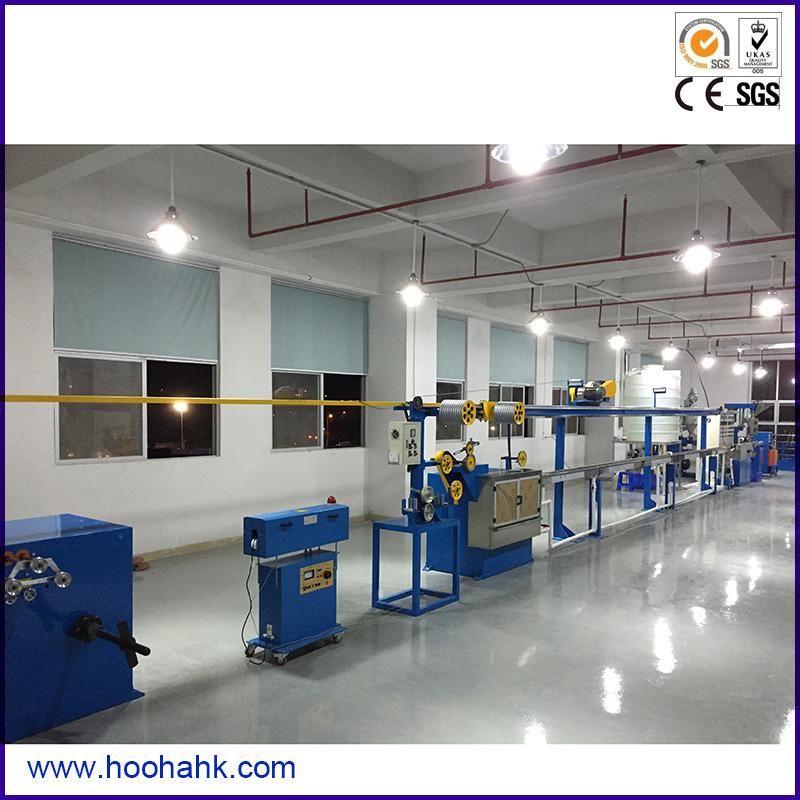

Consisting Components:
1,double-shaft pay-off rack
2,straightener platform
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine
  GEM  Performance tableItemConductor sectionInsalution thicknessCable diameterProduction speedUnitemm2mmmmm/minkm/hr10.750.62.345027210.62.54502731.50.62.84502742.50.73.245027540.83.937022660.84.43201971015.72501582 X 1.51.27.61307.893 X 2.51.29.21106.6104 X 41.211.5905.4114 X 61.212.5804.8
Optional:
1.Different take-up machine etc.
2.Flyer pay-off or other pay off machine.
3.Taiwan or Swiss brand crosshead.
4.Copper pre-heater.
5.Talc applicator.
6.Different brand Laser diameter gauge.
7.Coiler on line

4.Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

5.Contact information:
Phone: +8613763134250
Http//:hoohaco.en.made-in-china.com
http://hoohaco.en.made-in-china.com/
Add:No. Beice District, Humen Town,
Dongguan  City, Guangdong Province,China

6.Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
