• Model NO.：TB680
• Catapity：37kg
• Flux Spray：Froth
• Max Power：3kw
• Pot Capacity：37kg Tin
• Max PCB Size：200X270mm (Max)
• Power Supply：220V+,-1%V AC Single Phase 50Hz
• Transport Package：Wooden Case
• Specification：CE ISO SGS
• Trademark：Torch
• Origin：Beijing, China
• HS Code：1105962268
• Production Capacity：50PCS,Month

Basic Info.

Model NO. TB680 Catapity 37kg Flux Spray Froth Max Power 3kw Pot Capacity 37kg Tin Max PCB Size 200X270mm (Max) Power Supply 220V+/-1%V AC Single Phase 50Hz Transport Package Wooden Case Specification CE ISO SGS Trademark Torch Origin Beijing, China HS Code 1105962268 Production Capacity 50PCS/Month

Product Description

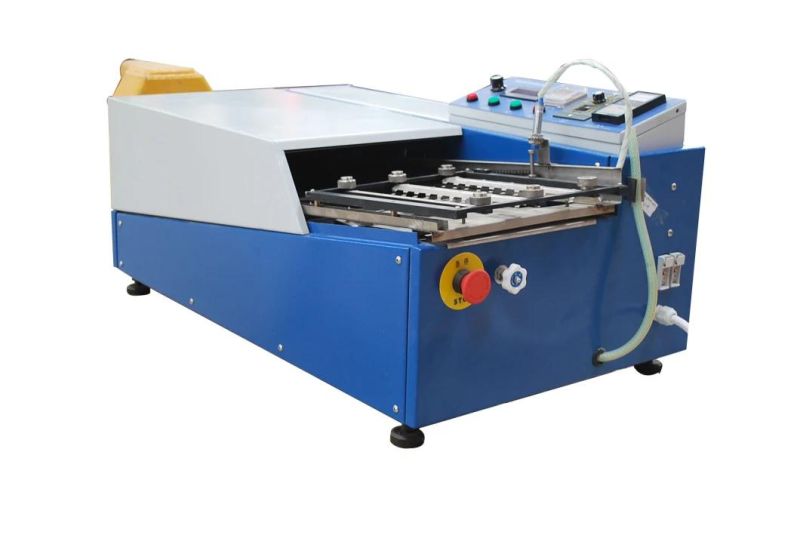

Torch Classic Strong Stability Desk Wave Soldering Machine TB680


ISummary
Desk wave soldering machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.

II Main technology parameters
Max power: 3KW
Pot capacity: 37Kg tin
Max PCB size: 200X270mm (max)
Temperature range: 200-300 degree LED display
Preheating temperature: 70-90 degree
Height range of wave crest: 5-12mm
Melting time: 80min
Flux spray: Froth
Power supply: 220V± 1%V AC single phase 50Hz
(please connect power to the ground)
Transmission speed: 0.5-3m/min
Dimension: 850X600X330mm
Net weight: 48Kg

Model	TB680
The max power consumption	3Kw
Solder pot capacity	37Kg
PCB width (L×W)(mm)	200 X 270mm (Max)
Temperature range	200~300
Preheating temperature	90~130
Wave height adjust range	3~ 8mm
Melt time	60min
Spray work mode	froth
Power supply	220v 50Hz
Conveyor speed	0.5~ 2m /min CTV
Dimension	840 X 540 X 380mm
Weight	70Kg
