BV, BVV, Bvr, RV Wire Cable Extrusion Machines with Siemen Motor

HOOHA Co., LIMITED
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, RoHS, ISO, CE, IEC60898, CCS, Semko, CB
  • Warranty：12 Months
  • Screw：Single-Screw
  • Motor：Germany-Siemens

Base Info

  • Model NO.：HH-70MM,80,90
  • Inverter：Yaskawa
  • Bearing：Japan-NSK
  • Available Material：BV,BVV,Bvr,RV
  • Usage：Cable Extrusion
  • Color：Customized
  • Model Number：Hh-90
  • Take-up Power：7.5HP
  • Host′s Power(Kw)：50HP
  • Output(Kg/H)：250
  • Pay-off Bobbin Size(mm)：Pn630-800
  • Screw Diameter(mm)：90
  • Wire Diameter(mm：3-25
  • Linear Speed(M/Min)：Max400
  • Take-up Type：Double Axis Way
  • Transport Package：Plastic Package
  • Specification：CE ISO SGS
  • Trademark：HOOHA
  • Origin：Dongguan
  • HS Code：8477209000
  • Production Capacity：10 Sets,Month

Description

Double axes/dynamic drum take-upDouble axis wayPay-off bobbin size(mm)400-630630-800Screw diameter(mm)φ70φ80φ90L/D of screw25:1 BM typeExtrusion capacity(kg/hr)140200250Main unit power(HP)304050Cooling deviceSingle layer/doubleAccumulator capacity200mCapstan power(HP)57.57.5Wire speed(meter/minute)0-5000-4500-400Take-up line typeDouble axes bundle packing /axis packing/swaying tray coiler packingDouble axis way/axisReceving reel500mm-630mmTake-up line power(HP)557.5

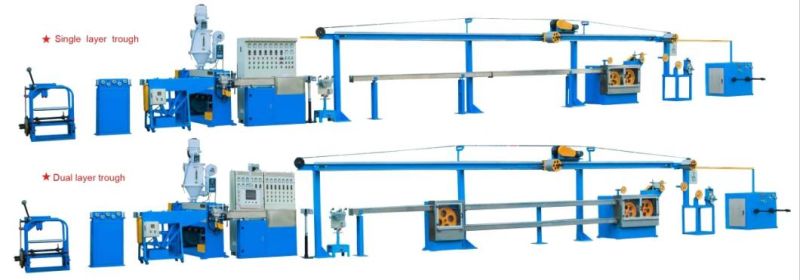

Extruder Machine for Making Domestic Wire and Cable


4. Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF


5. Consisting Components:

1,Japanese type pay-off machine
2,straightening workbench
3,extrusion host
4,automatic dryer and hopper
5,main control box
6,injection machine
7,active water tank
8, OD tester
9, printer
10, Fixed water tank
11,accumulate
12, Meter counter
13, double shaft capstan
14, take-up machine

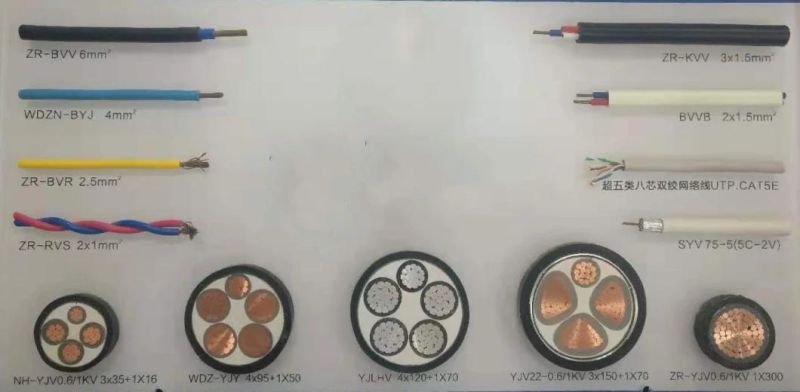

6. Finished Products:

BV, BVV, Bvr, RV Wire Cable Extrusion Machines with Siemen Motor


7, Delivery:

BV, BVV, Bvr, RV Wire Cable Extrusion Machines with Siemen Motor


8.After-sales service

1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: plastic packing ensure the goods' safety during the transportation.
4).Installation and training service: 2 professional engineers who has over 5 years overseas installation and cable manufacturing training experience.


9.Contact information:

Phone: +8615015409397
Web: http//:hoohaco.en.made-in-china.com
         http://hoohaco.en.made-in-china.com/
Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


10.Where are we:

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes


11. Advantages:

BV, BVV, Bvr, RV Wire Cable Extrusion Machines with Siemen Motor
