• Model NO.：D3
• Certification：ISO, CE
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Desktop
• Driven Type：Electric
• Power Supply：AC220V
• Dimention：680mm(L)*650mm(W)*740mm(H)
• Weight：About 55 Kg
• Transport Package：Wooden Packaging and Can Pack According to Yours
• Specification：680mm(L)*650mm(W)*740mm(H)
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8486309000
• Production Capacity：50set,Month
• Package size per unit product：75.00cm * 68.00cm * 85.00cm
• Gross weight per unit product：65.000kg

Basic Info.

Model NO. D3 Certification ISO, CE Warranty 12 Months Automatic Grade Automatic Installation Desktop Driven Type Electric Power Supply AC220V Dimention 680mm(L)*650mm(W)*740mm(H) Weight About 55 Kg Transport Package Wooden Packaging and Can Pack According to Yours Specification 680mm(L)*650mm(W)*740mm(H) Trademark TORCH Origin Beijing, China HS Code 8486309000 Production Capacity 50set/Month

Packaging & Delivery

Package size per unit product 75.00cm * 68.00cm * 85.00cm Gross weight per unit product 65.000kg

Product Description

Automatic dispenser from aeroguante polyethyleneDouble worktable automatic dispensers, which are universal electro-equipment, have been widely used in the fields of electro-element making, PCB assembly, wiring making, IC encapsulation, exact apparatus, biomedicine, light industry, packing, food and so on. Our products take advantage of control movement and dispenser technology and have the advantage of easy operation, stable fuction, and economical.

[Structure]:

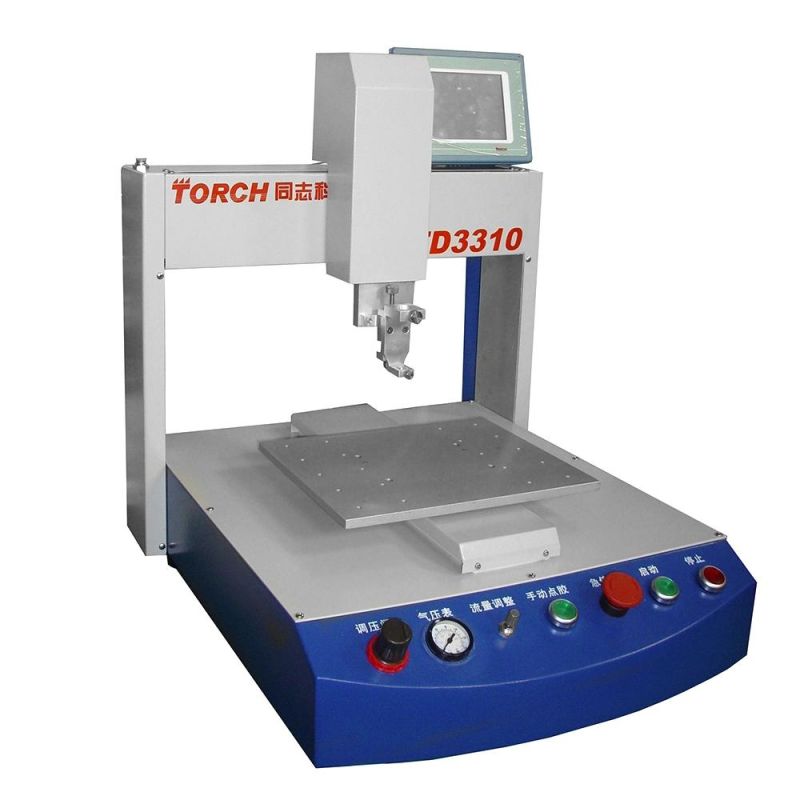

The structure and figure dimension are shown as Picture One. They assist of Y1 and Y2 axis control panel, X and Z axis. The base is configured with touch screen controller and it is convenient to control the process.

[Remark]:
1. Four axes control, high speed and precision, excellent dispenser and motility function
2. External Chinese touching screen controller easily to revise exactly, high quality, improve efficiency, convenient and reliable.
3. Best price with high quality
4. The dispenser system is configured unique calefaction system and temperature control system to make the liquidity of the gluewater
perfect.

9. Control method: Port to port, beeline and arc
10. Programme method: Touch screen control, PC program input
11. Program capacity: 100 programs/6000 ports
12. Power supply: AC220V
13. Air pressure: 0~6Kgf/CM2
14. Dimention: 680mm(L)*650mm(W)*740mm(H)
15. Weigh: About 65 Kg
16. Control panel; Start, reposite, sease
17. Programme interface: Chinese/English 5.7 inch touch screen instructing machine

Effective scope:	X axis- 400mm (move to right or left)   Y1 axis, Y2 axis- 300mm (move forward or backward)   Z axis- 100mm (move up or down)
Max moving speed	X axis- 800mm/s Y1 axis, axis- 800mm/s   Z axis- 300mm/s
Repeating accuracy	± 0.02mm
Drive method	step motor laser & synchronous belt
Most bearing	worktable- 8kg, Z axis- 3kg
Control method	port to port, beeline and arc
Programme method	touch screen control, PC program input
Program capacity	100 programs/6000 points
Power supply	AC220V
Air pressure	0 ---6kg/Cm2
Dimension (L*W*H)	680mm*650mm*740mm
Weight	about 55 Kg
Panel Control	button for start, reposition and stop
Programme interface	Chinese/English 5.7 inch touch screen show
