Surperfine ETFE/FEP/PFA Coaxial Cable Extruder Line
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Name Machine：ETFE,FEP,PFA Coaxial Cable Extruder Line
Base Info
- Model NO.：XJ-20mm,25mm,30mm,40mm
- Extrusion Material：ETFE,F40, FEP,F46, PFA
- Screw Type：Single Screw
- Screw L/D：28:1
- Line Speed：Max.180m,Min
- Customized：Customized
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
U-type single-layer water troughAccumulate length 0-100m 0-100m 0-100m 0-100m Capstan power 1kw Servo motor 2kw Servo motor 2kw Servo motor 2kw Servo motor Max speed 150m/min 150m/min 180m/min 180m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up bobbin Φ100-200mm Φ200-300mm Φ200-300mm Φ300-400mm Size( mm) 8000*1200*2100 8000*1400*2100 9000*1400*2100 12000*1800*2100 Total Weight 3.0 T 3.5T 4T 5.5T
3. Main components: ITEM DESCRIPTION QTY
(pcs/set) REMARKS 01 Active type pay-off machine 1 02 High-frequency preheater 1 03 Straightening device 1 04 Main extruder 1 05 Vacuum pumps and control device 1 06 Teflon special crosshead 1 Made-in-China or Imported brands 07 Automatric drying hopper and suction machine 1 Optional: Manual type 08 Numerical control electric cabinet 1 09 Movable water tank 1 10 Single layer cooling water tank 1 11 Horizontal wire accumulator 1 12 Sigle wheel belt capstan 1 13 Double shaft take-up machine 1 14 Meter counter 1 15 Laser diameter tester 1 Optional: Different brands 16 High-frequency spark tester 1 Optional: Different brands 17 Lump gauge 1 Optional: Different brands 18 Concentricity detector 1 Optional 19 Other special requests
1) Used widely:Suitable for FEP(F46)/PFA /ETFE(F40) fluorine plastic Teflon insulation extrusion for high-frequency data cable and coaxial cable etc.
2) High precision: The whole precision design from pay-off to take-up, online tension keeping steady, ensure continuous and smooth extrusion of the wires;
3) High quality: Extrusion concentricity:over 95%, OD tolerance: +/- 0.003;
4) Temperature control stability: Adopted SCR power controller with imported high quality temperature control table and copper casting heater, temperature tolerance: +/- 1ºC;
5) Easy operation: Exclusive adopted NEWTOPP Teflon specialized touch screen, both provide Chinese/English operation interface, automatic control, easy to operate.
6) Save place: Adopted integrated design, beautiful appearance, combined the traditional pay-off, tension, preheater and stranghtening into one, also combined capstan and take-up into one with box structure, overall length will be reduced more than 5 meters.

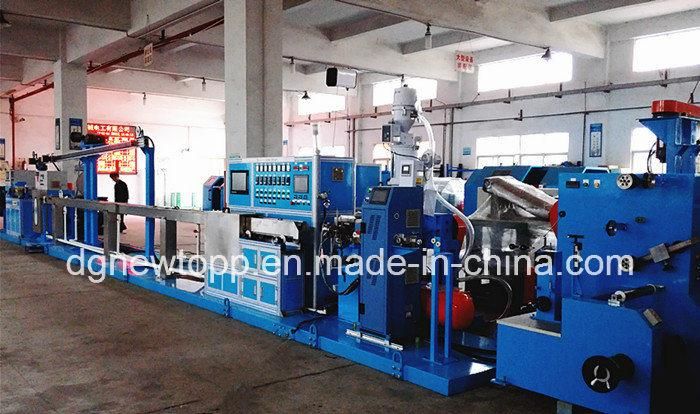

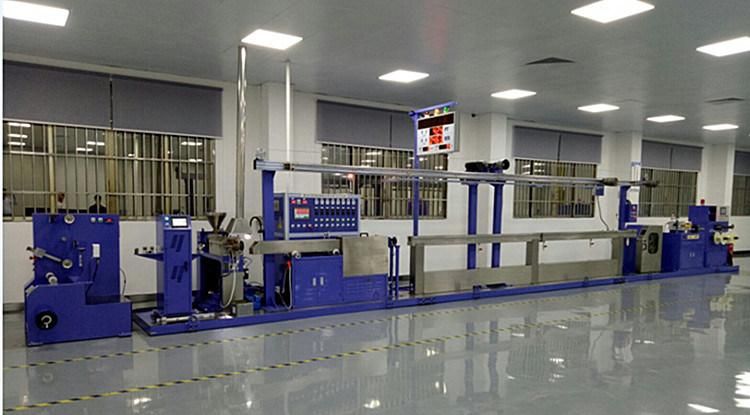

5. Machine pictures:

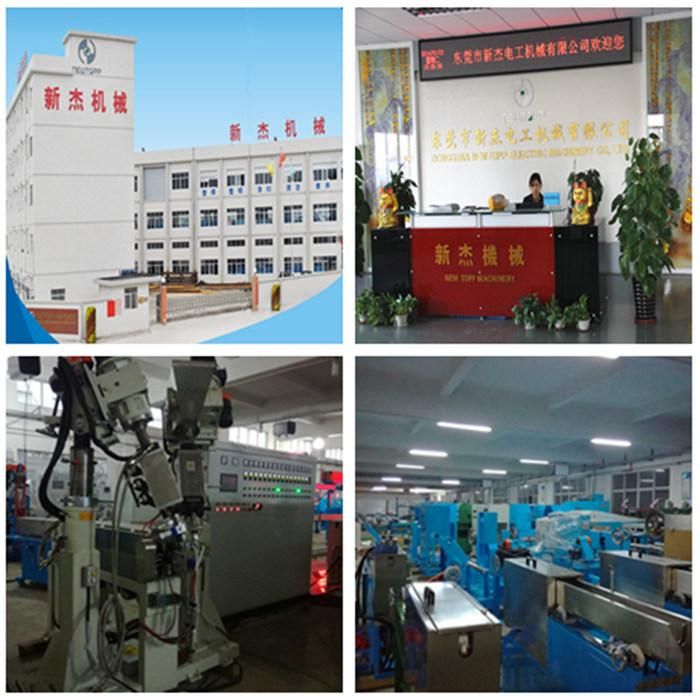

6. Abuot us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding/twisting machine, planetary cage type twisting machine, triple-core stranding machine with back-twist, single/double layer wrapping/taping machine and so on; Our products have passed CE certification and SGS audited , and our factory have passed ISO9001 quality management system certification and ISO14001 environmental sytem certification.
7. Certificates of Patent and Honor:

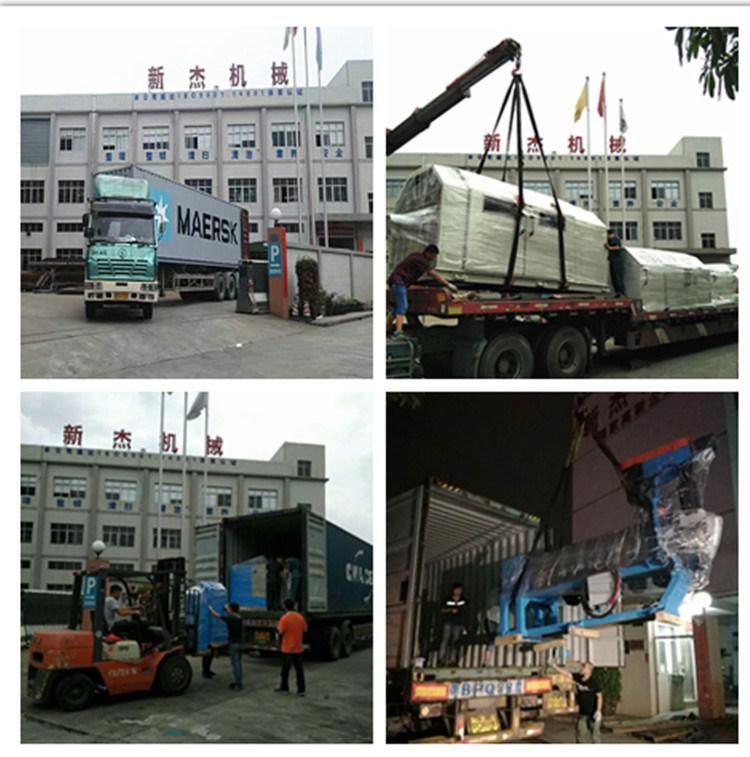

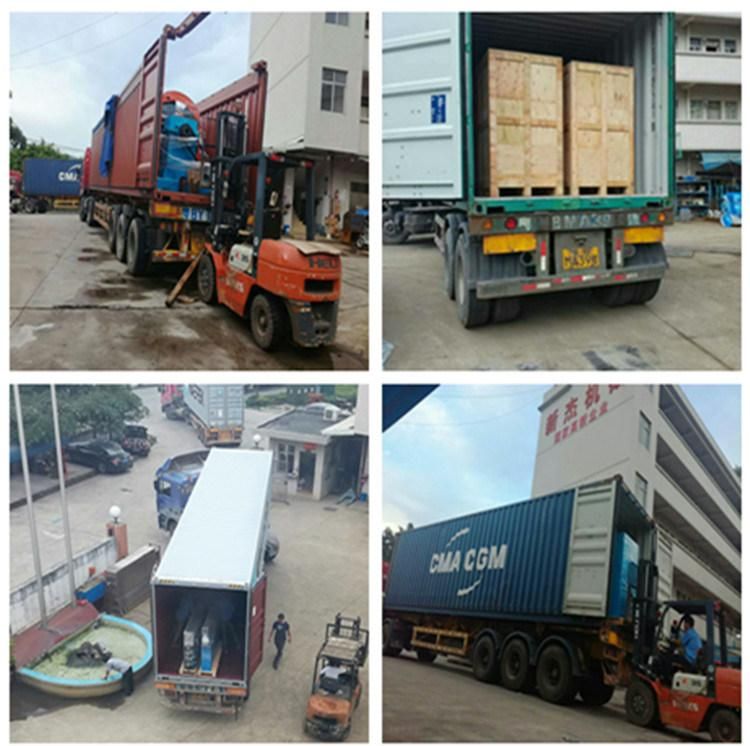

8. Shipment scenes:
9. FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machinery ; our machines are exported to different countries, such as Italy, Russia, Iran, Japan, India, Korea,Thailand, Malaysia, Vietnam etc, and have received recognition and praise from customers.
2) How can we get to your factory to see the machines?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
