• Model NO.：XJ-300
• Specification：XJ-300
• Trademark：Newtopp
• Origin：China
• HS Code：8479400000
• Production Capacity：300set,Year

Basic Info.

Model NO. XJ-300 Specification XJ-300 Trademark Newtopp Origin China HS Code 8479400000 Production Capacity 300set/Year

Product Description

Application feature:

It's used in USB3.1(Coaxial structure) se ries coaxial winding wrapping process,used to coaxial wire back twist,high speed winding,double layer wrapping etc. finished at a time.

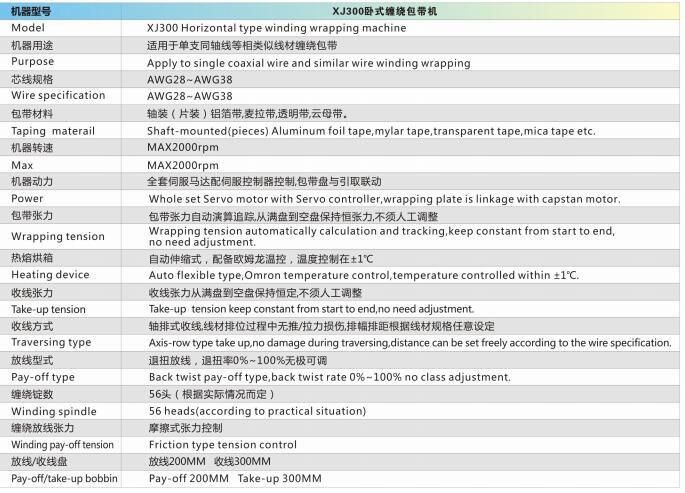

Machine  technical parameter:




Machine parts:


No.	Parts name&Specs.	Qty
1	ø200-300mm singal head active pay-off	1set
2	8 heads active winding machine	1set
3	ø100*30*100mm shaft-mounted center aluminum foil tape wrapping machine	1set
4	ø100*30*100mm shaft-mounted center mylar foil tape wrapping machine	1set
5	Ø300mm Axis row-type take up	1set
6	High frequency spark machine	1set
7	Air blast type heat fusion heater	1set
8	ø160mm capstan	1set
9	Electrical control cabinet	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.
