• Model NO.：FC-630
• Mould Life：300,000-1,000,000 Shots
• Type：High-speed Stranding Machine
• Usage：Bare Copper Wire,Tinned Wire,Silver Jacketd Wire,
• Conductor Single Wire Diameter：0.15mm-1.04mm
• Conductor Stranding Section Area：0.5-6mm2
• Core Wire Single Wire Dia：1.0mm-3.0mm
• Core Wire Stranding Outer Dia：2.0mm-6.0mm
• Pitch：11.48mm-100mm(36zones)
• Direction of Lay：Optional for Right or Left
• Take up Bobbin Size：630*56*475,630*127*475
• Max Rotating Speed：1600rpm(3200twist)
• Tension Control Method：Mechanism Friction
• Transport Package：Simply Packed
• Specification：ISO
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：60PCS,Month

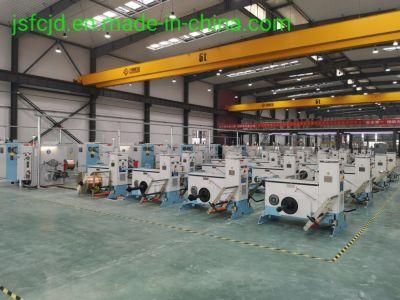

                                                                                                                                                                                                                                                                                                                                     The technology of this machine is brought from Japan and put in production in Jiangsu. Series for Model-A big wire high speed bunching machineMerits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits.     ModelFC-300AFC-500AFC-630AFC-800AUsage   It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.Single Wire Dia(mm)Φ0.08~0.28Φ0.10~0.64Φ0.15~1.04Φ0.2~1.7Stranding Section Area(mm²) 0.035-0.450.05-2.50.5-61.0-16Core Wire Single Wire Dia(mm)Φ0.25~Φ0.8Φ0.75~Φ1.5Φ1.0~Φ3.0Φ1.0~Φ4.0 Core Wire Stranding Outer Dia(mm)Φ0.5~Φ1.6Φ1.5~Φ3.0Φ2.0~Φ6.0Φ2.0~Φ8.0Pitch(mm)4.5-17.5(10section)5.82-53.73(34section)11.48-100(36section)19.8-200(30section)Direction of Layoptional for right or left                                                                                                                                                                                                   Take-up Bobbin(mm)  Φ300*Φ30*160Φ400*Φ56*300/Φ500*Φ70*320Φ630*Φ56*475/Φ630*Φ125*475Φ800*Φ80*600Max Rotating Speed(rpm)3000(6000twist)2200(4400twist)1600(3200twist)1200(2400twist)Main Motor Power 3.7KW5.5KW7.5KW11KWInverter Power3.7KW5.5KW7.5KW11KWTension Control MethodMechanism FrictionProtection   Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake ModeElectromagnetic BrakeTraversing MethodRolling ring drive units, winding pitch and breadth are adjustable.Operation Modepush-button controlDimension(mm)2300L*1000W*1150H2800L*1280W*1300H3280L*1600W*1600H3600L*1850W*1800H
