• Model NO.：FC-300
• Pay off Type：Active Pay off
• Linkage with Winding Machine：Active Pay off
• Motive：Motor Control
• Pay off Bobbin Size：630*56*475,630*127*475
• Transport Package：Simply Packed
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：50sets,Month

Basic Info.

Model NO. FC-300 Pay off Type Active Pay off Linkage with Winding Machine Active Pay off Motive Motor Control Pay off Bobbin Size 630*56*475/630*127*475 Transport Package Simply Packed Trademark FC Origin China HS Code 8479811000 Production Capacity 50sets/Month

Product Description

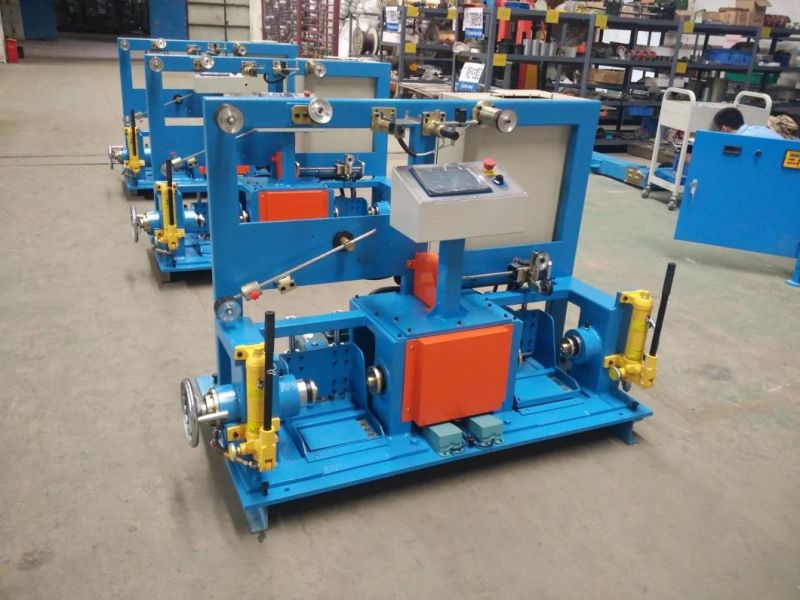

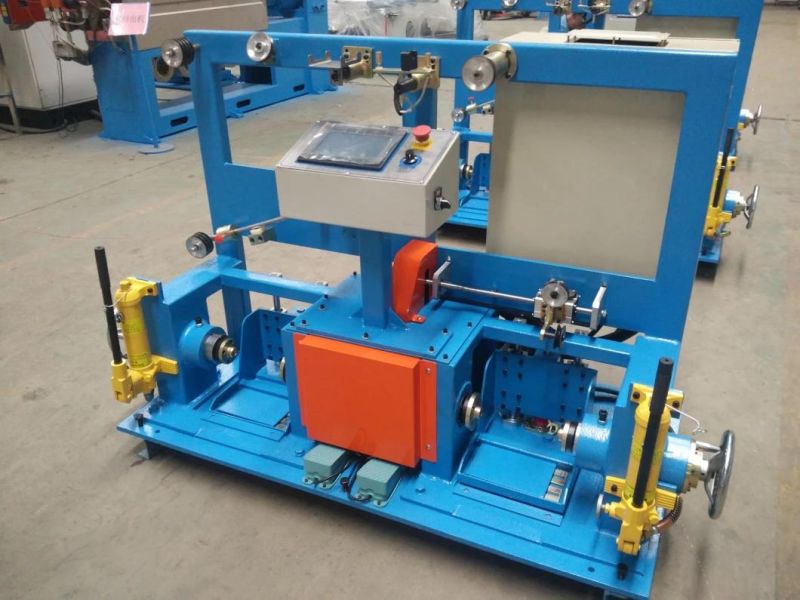

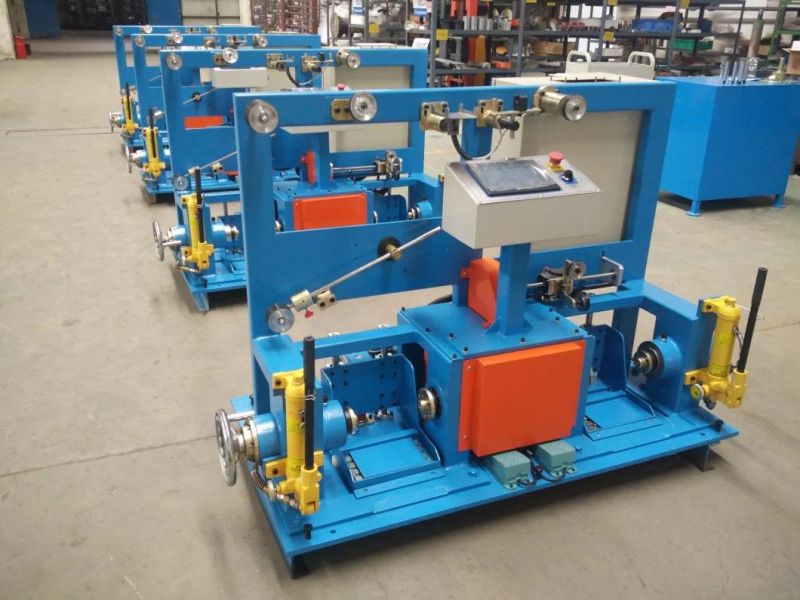

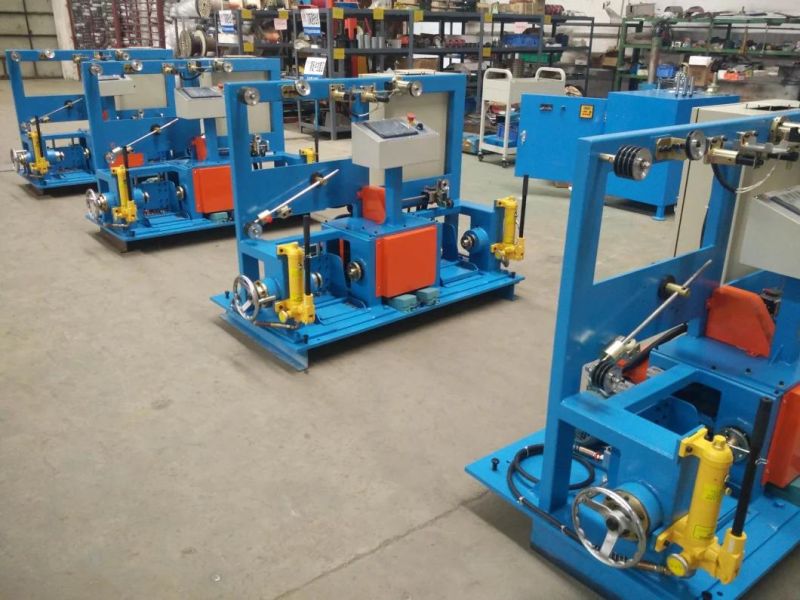

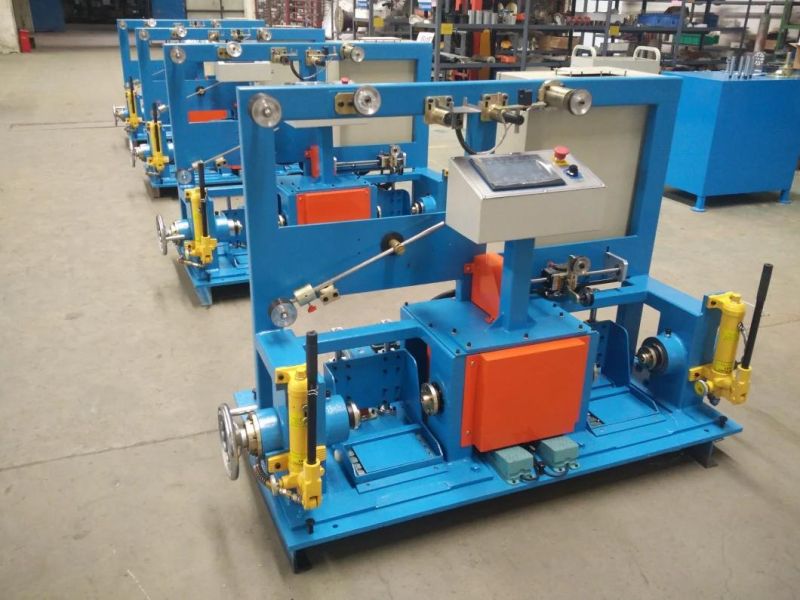

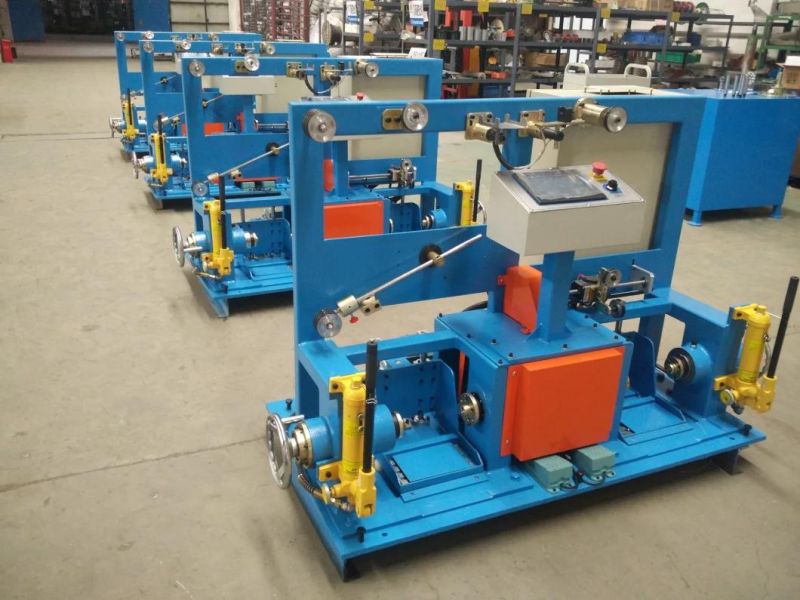

FC-300 Double Shaft Multiple Drawing Bobbins Active Pay-off
Machine performance parameters:
The pay-off stand is constant tension, no reverse the pay-off double disk, can be used for single pay-off equipment pay-off, also can be used for drawing wire harness, and two dish line not interfere with each other, independent, pay-off, easy to operate, can efficiently save covers an area of space.
1. Put/size range: φ 0.08-0.20 mm;
2. The biggest MAX100m/min, the linear;
3. The pay-off plate size: Outside diameter φ 300 * hole φ 56 * 245 * in the wide width of 200 mm;
4. Tension adjustment: In the swinging rod are installed on cylinder, but through the governing valve adjusting cylinder pressure to change the pay-off tension, also can use a heavy hammer adjust tension;
5. The driver: The wire disc by belt brake 0.5 KW three-phase frequency conversion motor driven by special synchronous belt; The inverter control the motor.
6. Brake: Motor internal disc springs pads action, brakes motor;
7. Adjustable speed: By the sensor signal transmission swinging rod to control the speed of frequency converter, pay-off and host (such as stranding machine) to keep the same;
8. The wire disc loading and unloading: Use the hydraulic forklifts (by advertisers) manual handling the wire disc;
9. Painting: Apple green(or paint according to the customers' require)
10. Weight: 200 kg
