• Model NO.：SS-CST1000
• Type：Single Stranding Machine
• Motor Brand：Siemens
• Inverter Brand：Siemens
• PLC：Siemens
• Touch Screen：Siemens
• Low-Voltage Electrical Parts：Scheinder
• Bearing：SKF or NSK
• Painting：Customzied
• Transport Package：Wooden Cases
• Specification：L5200*W2300*H2500
• Trademark：SINO STAR
• Origin：Dongguan, China.
• HS Code：8479400000
• Production Capacity：260 Sets,Year

Basic Info.

Model NO. SS-CST1000 Type Single Stranding Machine Motor Brand Siemens Inverter Brand Siemens PLC Siemens Touch Screen Siemens Low-Voltage Electrical Parts Scheinder Bearing SKF or NSK Painting Customzied Transport Package Wooden Cases Specification L5200*W2300*H2500 Trademark SINO STAR Origin Dongguan, China. HS Code 8479400000 Production Capacity 260 Sets/Year

Product Description

High Speed Single Wire Cable Twisting Twister Bunching Winding Stranding Making Machine for Twisting Cable
High speed Stranding machine for twisting cable and multi-core wire assemby suitable for bobbins from DM630mm to DM1250mm equipped with wire inlet with 19 holes.

We have been producing high speed single twisting machine with built-in capstan since 2000 and have exported many sets of this kind of machines to our overseas customers from Italy, Spain, Morroco, Romania, Slovakia, Chile, Ecuador, Bolivia, Brazil, Japan, Vietnam, Thailand, Russia, Uzbekistan and Iraq etc. We have been dedicated into making cable machine for over 3 decades; I am pretty sure that we can offer you the best solution for the cable production line with the most competitive price and excellent service.


Application: it is used for the assembly of multi-cored wire of more than two strands.

Main technical aparameters are as follows:

a. stranding limit: applicable to multi-cored wire assembly of more than two strands.
b. rotating speed: maximum 600RPM,below 550RPM when stable operation
c. wire feeding diameter: Φ1~4mm(cored wire)
d. assembly wire diameter :Φ12MM(cored wire, maximum)
e. diameter of towing wheel:  Φ300MM 4 grooves the surface of aluminum alloy anode treatment .
f. pitch:30mm-150mm(gear type replace pitch, one pitch about at intervals of 20mm)
g. stranding direction:Both left and right stranding direction
h. coiling bobbin: Φ630*420*100mm and Φ800*600*100mm
i. loading or unloading of bobbin: electric hydraulic lifting
j. tension regulation: motor 5.5KW
k. discharging wire: track thread screw type discharging wire
l. driven motor: 40HP motor
m. brake:disc-type pneumatic brake, DBG  105
n. disconnection system: automatic slowdown till shutdown when disconnection'
o. attachment area: L4800*W2100*H2300(mainframe)
p. weight: 5500KG
q. painting:  internal part will be paint orange, external part will be paint grass green, hazardous part will be paint yellow.
r. outer shell of the machine can be dismountable and is very convenient to carry and is designed separately from the mainframe
s. the machine spindle lubrication methods adopt high-temperature butter regular lubrication
t. all bearings of the machine are produced by SKF company( or the equivalent class) serial bearings .
u. both sides and back of the machine will install repair window 80mm*180mm open door type plus close door handles and two fixed screws
v. all machine belts adopt synchronous gear belt

Main technical aparameters of our current models are as follows:


Machine model	SS-CST 630	SS-CST800	SS-CST1000	SS-CST1250
Cored wire diameter	Φ0.7-3mm	Φ1-4mm	Φ1.5-5mm	Φ1.5-8.5mm
Max.stranded OD	Φ10mm	Φ12mm	Φ15mm	Φ20mm
Pitch	20mm-150mm	30mm-150mm geary type replace pitch;	40mm-180mm, stepless transmission replace pitch;	50mm-200mm (motor stepless adjustmente)
Rotary speed	Max. rotary speed 800RPM; below 700RPM under stable operation	Max. rotary speed 600RPM; below 550RPM under stable operation	Max. rotary speed 450RPM; below 400RPM under stable operation	Max. rotary speed 400RPM; below 350RPM under stable operation
Power	15HP motor and inverter	30HP motor and inverter	40HP motor and inverter	60HP motor and inverter

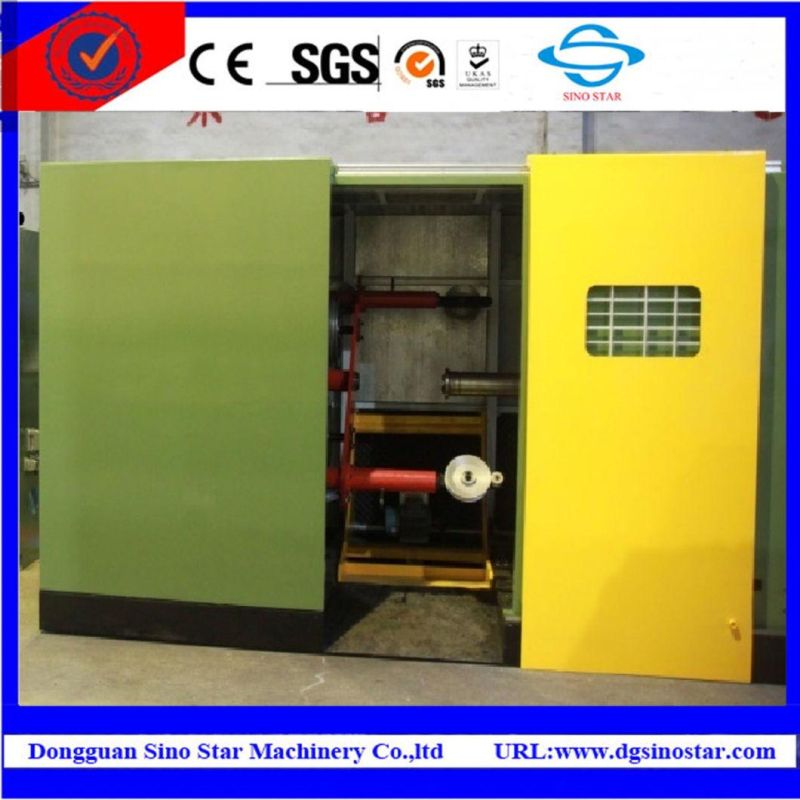

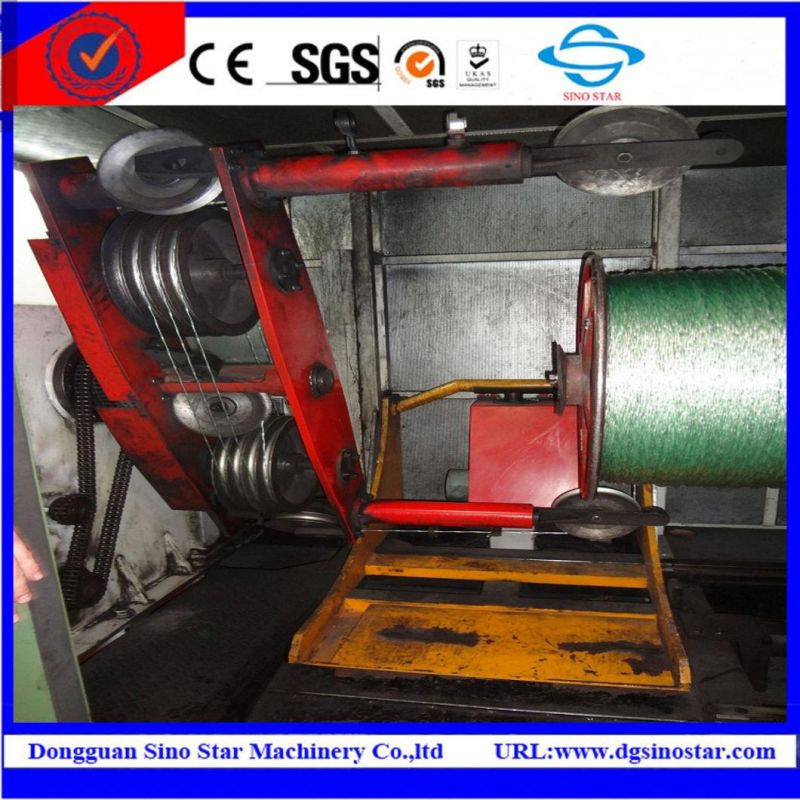

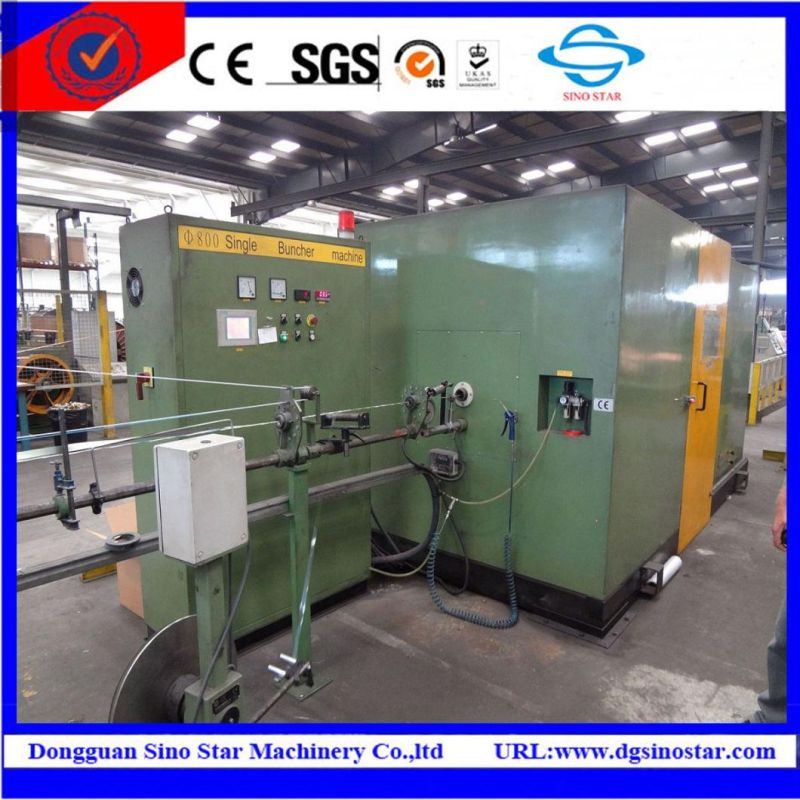

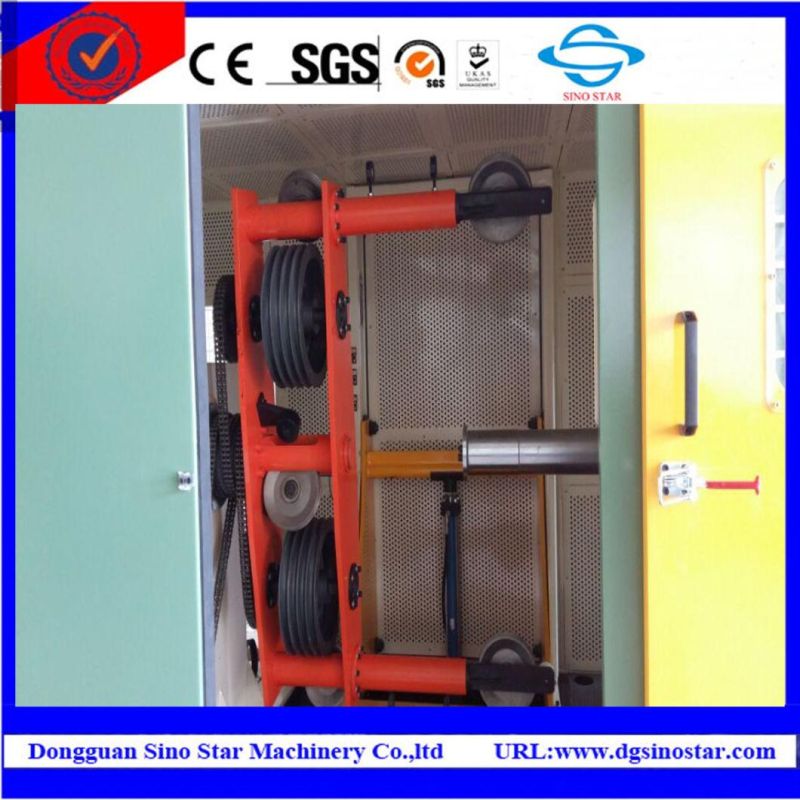

The photos of single twisting machine with built-in capsta are listed out below for your reference.

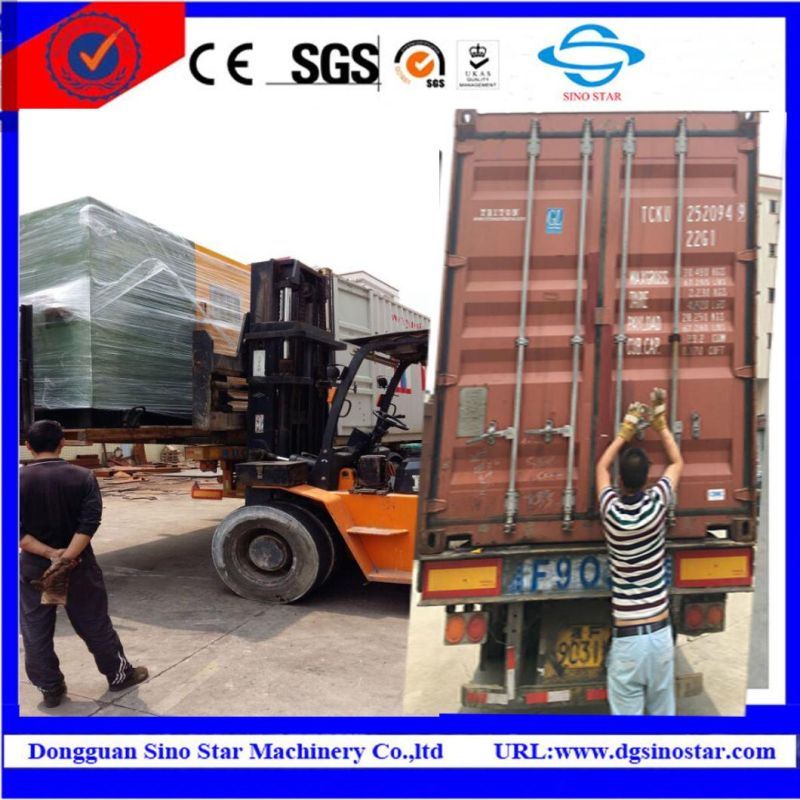

PACKAGE AND SHIPPING:

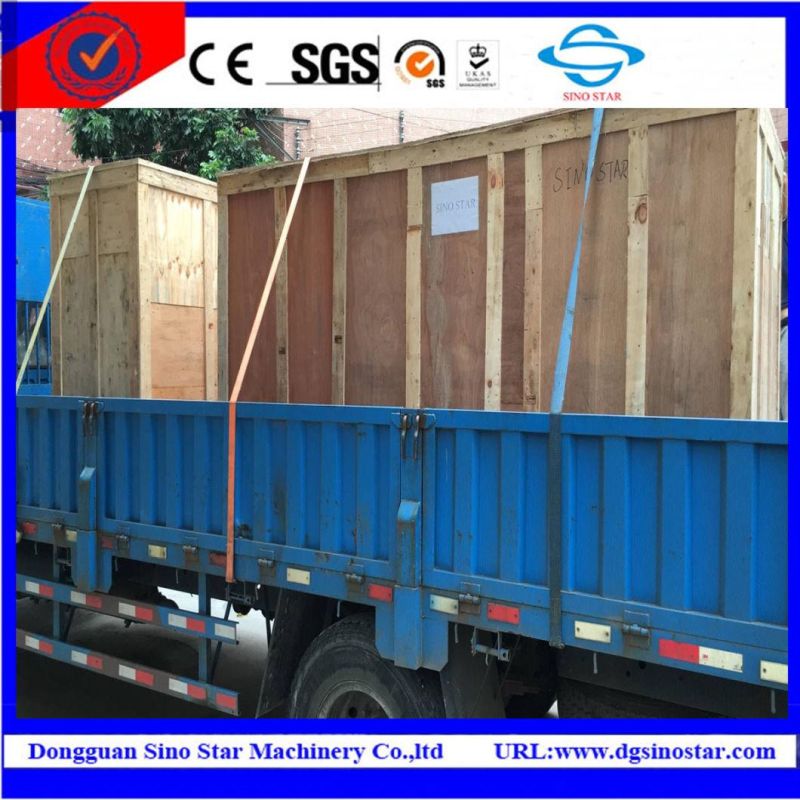

 Nomally we use wooden cases or PFfilm to pack our machines as required to guarantee that our machines won't been damaged in the course of long-disance sea transportation.





Our Service

Pre-sales service including:
- Analyse customer's inquiry and reply to customer within 12 hours after receiving the inquiry from customer.
- Communicate with customer and help customer to choose the well-suitable machines for customer.
- Sending drawings to customer for confirmation to make all is clear before placing order with us.
- Prepare the final proposal for customers
- Invite customer to visit our factory or we can visit our customer's factory to held a face-to-face meeting if possible

After-Sales Service

- Training customer's workers how to install, operate and maintain our machines
- Engineers available to provide overseas maintenance service for all our machines working abroad.

Customers Q&A:

A1: Are you the manufacturer or trading company ?

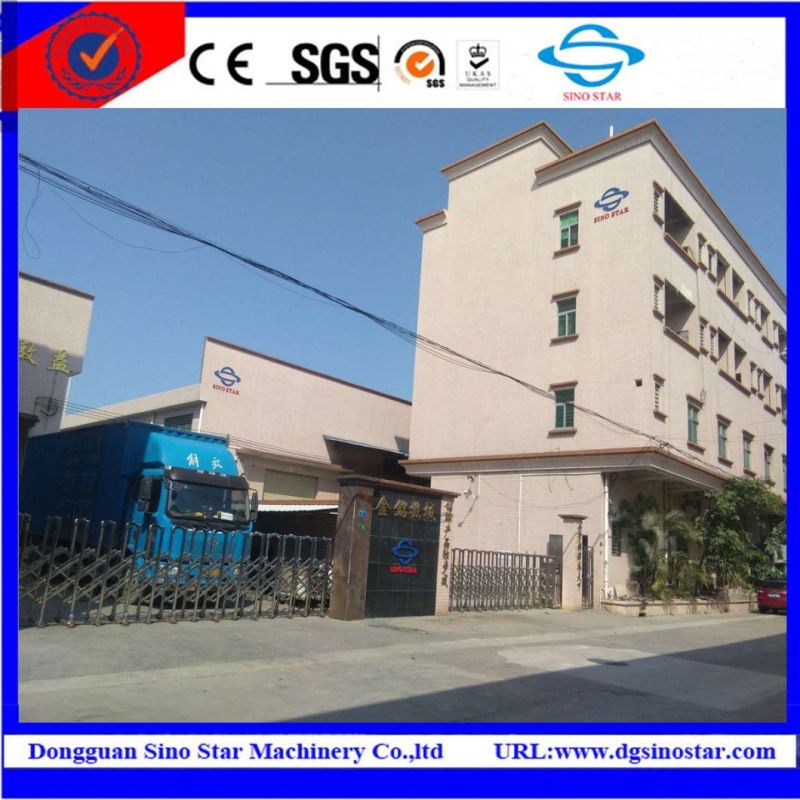

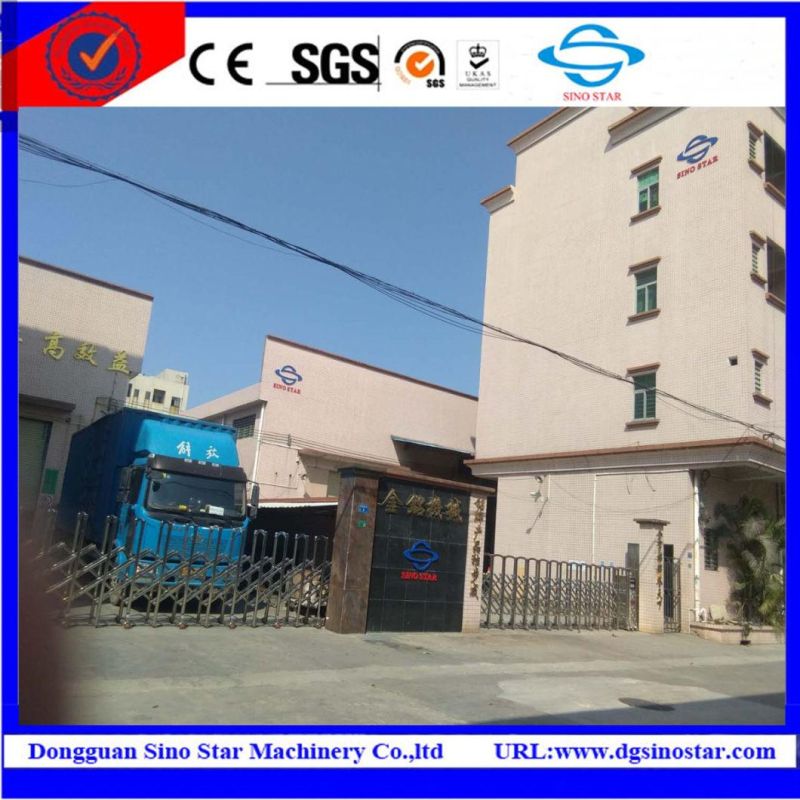

Q1: We are the factory with 3 big workshops covering 6000 s.q.m; Warmly welcome you to visit our factory and conduct our work.

A2: What's your factory's advantage over other manufacturers in the same industry ?
Q2 - High output capacity will guarantee your high-efficient production
     - We are very good at engineering; In order to make our machine have a very excellent performance; we are rigorously attaching importance to each detail in the course of manufacturing in a bid to improve our machines continuously.
     - We only mount electrical components under famous brands like Siemens,Yaskawa, Scheinder
and Omron on our machines to guarantee the quality of our machines.
     - Our engineers and workers can work abroad; if you need us to assist you installing and testing
the machines or training your staff how to operate and maintain our machines; we can send our team to your factory when our machines arrive at your factory.
     - Guarantee period: We can guarantee two years for all our machines
     - After-sales service: We promise to provide permanent technical support and after-sales service with our customers.
A3: Why do we trust your company ?
Q3: We have been engaging into cable machinery industry for over 30 years and have agent in Europe since 2007. Up to now we have exported our machines to many countries.

A4: Where is your factory ? How can we visit you ?
Q4: Our factory is located in Dongguan, Guangdong Province, China, very close to Shenzhen and Guangzhou. You can pick you up at Humen railway station (you can take high-speed train from Guangzhou South Railway sation or Shenzhen North station, it takes you only 10 minutes by high speed train to reach Humen Railway station)
