• Model NO.：LED660V
• Type：High-speed Chip Mounter
• Mount Head：6 PCS
• Typical Mounting Speed：14000 Cph
• Component Available：0603and Above SMD Component and LED
• Max Circuit Board Size：1200*300mm
• Max Moving Range：X Axis 1500mm, Y Axis 410mm
• Max Moving Range of Z Axis：15mm
• Mount Accuracy：+,-0.1mm
• Position Method：Visual Position
• Programme Method：Automatic Data Import, Video Study, Keyboard Input
• Belt Feeder：8mm, 12mm, 16mm and 24mm
• Transport Package：Wooden Case
• Specification：CE SGS
• Trademark：TERMWAY
• Origin：Beijing, China
• HS Code：1105962268
• Production Capacity：30 Sets,Month

Model
LED660V
Mount head
6 pcs
Max circuit board size
1200*300mm
Max moving range
X axis 1500mm, Y axis410mm
Max moving range of Z axis
15mm
Typical Mounting speed
13000-14000 CPH
Max mount speed
18000 CPH
Mount accuracy
+/-0.1mm
Position method
Machinery position
Component available
0603 and above SMD component and LED,SOT,SOP
Programme method
Automatic data import/ video study/ keyboard input
Belt feeder
8mm, 12mm, 16mm and 24mm
Feeder num
6 pcs of GF series feeder can be set (12 pcs feeders are optional)
Operation system
WINDOWS XP
Compressed air
internal vacuum, (large production  should use industrial air pump)
Power supply
220V,50Hz, 4.5 Kw
Weight
500Kg
Dimension
2600×680×1500mm

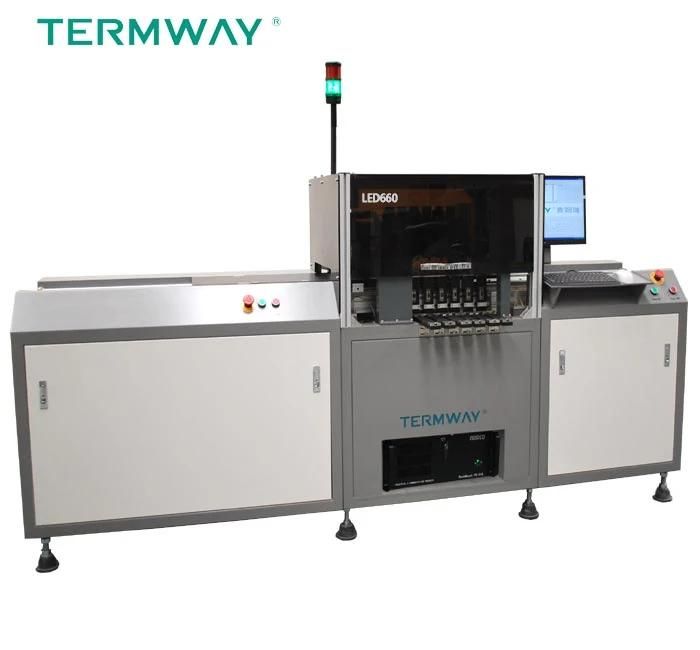

LED  Visual Pick and Place Machine LED660V,  features high speed, high accuracy. It achieves LED circuit board high-volume assembly.


Features:
1. Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

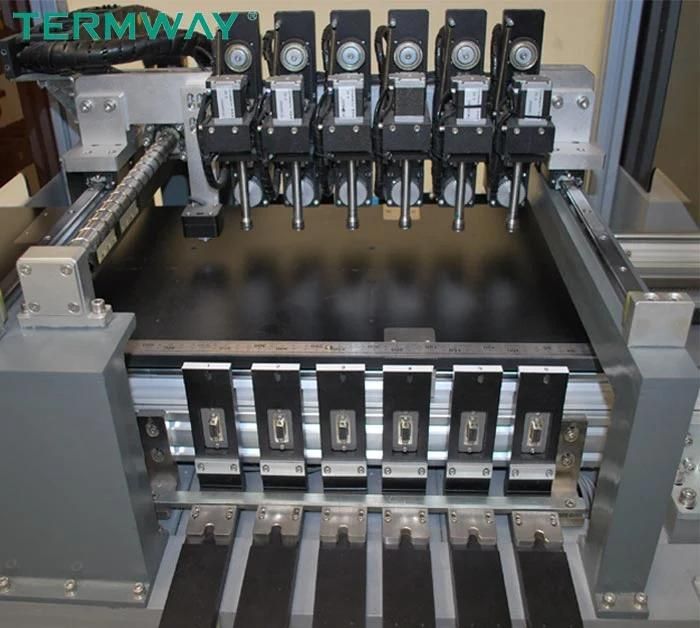

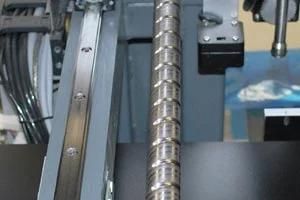

2. Mounting head driving system uses servo motor , together with high precision ball screw to achieve the completion of the LED component picking and placing.

3. 6 groups of mount head improves production efficiency of 400% than 1 group.

4.Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.

5. Different sizes of feeder can meet different requirements of LED mount.

6. Cost-effective LED chip machine is most suitable for high-volume LED production.

7. The whole machine is controlled by industrial computer with professional software, easy to operate and use.

8. Easy to import CAD data of the circuit board.

9. Stable and easy to complete the programming and placement of LED panel board 10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

10. The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

11. If the board have manufacturing quality problems, LED660 can shift the component place for accurate mounting.

12. Software can realize to achieve automatically six mounting heads function.

13. Software increases the XYZ axis detection limit when moves

14. software increases several grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability forlong time usage.

15. PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC)position and mount.

16. There is vacuum pump in the machine that no need to configure it separately and save the power,lower the noisy.






Standard Configuration:

 1. Industrial Computer 1 suit

 2. Mounting head 6 groups

 3. Nozzle 6 pcs

 4. Feeder platform  GFTA-T06  1 set


 Optional part:

 1. Automatic feeder 8mm, 12mm, 16mm and 24mm

 2. Nozzle

 3. Industrial air pump

 4. UPS

 5. Feeder platform  GFTA-T06

 6. Vacuum absorb platform 1 set
