Horizontal Stator Coil Inserting and Expanding Machine
NINGBO HI-TECH WEDE MOTOR MACHINES CO., LTD.- Voltage：380V
- Warranty：12 Months
- Processing Part：Motor Coils Winding
- Condition：New
- Automatic Grade：Automatic
- Mould Life：300,000-1,000,000 Shots
Base Info
- Model NO.：WD-01-QKX
- Type：High-Speed Stranding Machine
- Driven Type：Motor
- Transport Package：Ply-Wooden Case
- Trademark：WEDE
- Origin：China
- HS Code：8479811000
- Production Capacity：100PCS,Year
Description
WD-01-LRX:single winding head 2 rotary stations
WD-02-LRX:double heads 4 rotary stations
WD-03-LRX:three heads 6 rotary stations (for water pump etc)*2 pcs (single phase motor, each phase per piece)
WD-04-LRX:four heads 8 rotary stations (for table fan, pedstran fan etc) *3 pcs (one speed per piece)
WD-06-LRX:six heads 12 rotary stations
They have standard size machine (refer to the following table size, and following stator winding line picture 1 )and also the extend size machine (refer the following stator winding line picture 2), for size OD 330, 191 height
Item WD-01-LRX WD-02-LRX WD-03-LRX WD-04-LRX WD-06-LRX wire OD 0.15-1.2mm 0.15-1.2mm 0.15-1.2mm 0.15-1.2mm 0.15-1.2mm max number of parellel wire 10 2 2 2 2 max core length 200mm 150mm 120mm 80mm 60mm max no-load speed 1000rpm 2000rpm 1500rpm 2300rpm 2300rpm appropriate wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire power supply 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz power 5KW 10KW 7KW 10KW 14KW air supply 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa weight about 1500kgs about 2000kgs about 1600kgs about 2500kgs about 2500kgs size 2000x930x2300mm 1700x900x2400mm 1500x1300x1900mm 1575x1580x2400mm 1600x1500x1900mm

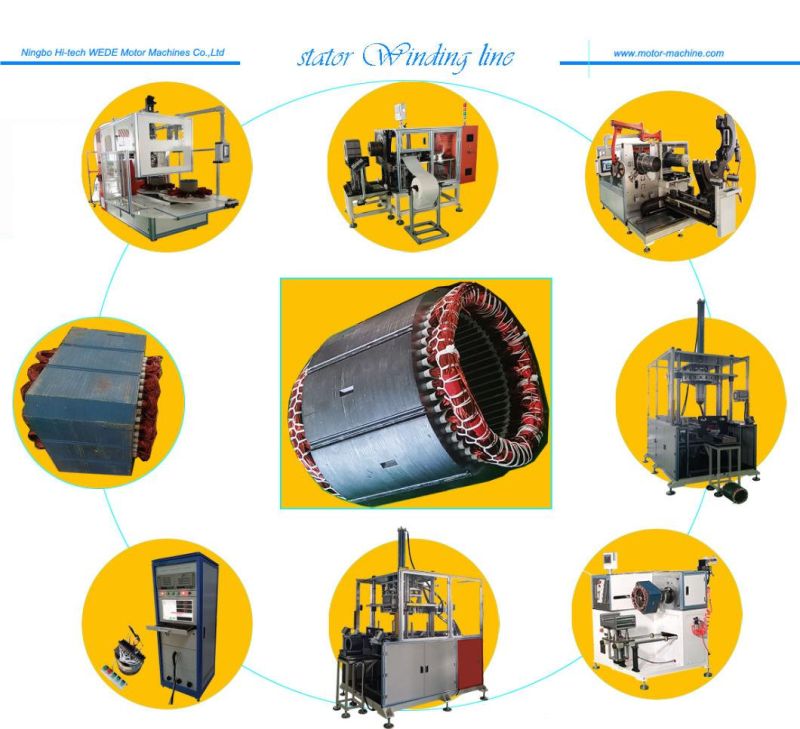

Picture 1

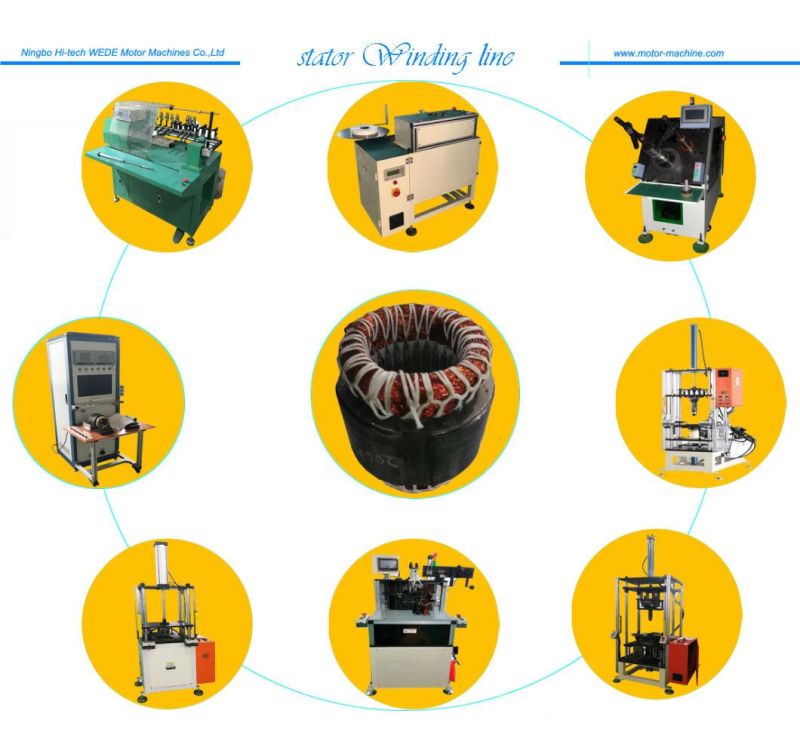

Picture 2
WD-02-LRX:double heads 4 rotary stations
WD-03-LRX:three heads 6 rotary stations (for water pump etc)*2 pcs (single phase motor, each phase per piece)
WD-04-LRX:four heads 8 rotary stations (for table fan, pedstran fan etc) *3 pcs (one speed per piece)
WD-06-LRX:six heads 12 rotary stations
They have standard size machine (refer to the following table size, and following stator winding line picture 1 )and also the extend size machine (refer the following stator winding line picture 2), for size OD 330, 191 height
Picture 1
Picture 2
