• Model NO.：DJJ001
• Installation：Desktop
• Driven Type：Pneumatic
• Material：Aluminum Alloy
• Work Range：500*430*120mm
• Axial Dynamic Speed X/Y/Z：800mm,S
• Repeatability Positioning：+-0.02mm
• Can Move The Graph Track：Point, Line, Arc, Curve, Polyline, Spiral, Ellipse
• Drive Mode：4 Axis Precision Stepping Servo Drive
• Memory：100groups, Each Group Have 100 Pot
• Core Components：PLC, Motor
• Control System：PLC+4 Axis High Performance Control System
• Body Weight：60kg
• Transport Package：Wooden Case
• Specification：670*720*650mm
• Trademark：XHC
• Origin：Dongguan, Guangdong, China
• Production Capacity：100sets,Month

Basic Info.

Model NO. DJJ001 Installation Desktop Driven Type Pneumatic Material Aluminum Alloy Work Range 500*430*120mm Axial Dynamic Speed X/Y/Z 800mm/S Repeatability Positioning +-0.02mm Can Move The Graph Track Point, Line, Arc, Curve, Polyline, Spiral, Ellipse Drive Mode 4 Axis Precision Stepping Servo Drive Memory 100groups, Each Group Have 100 Pot Core Components PLC, Motor Control System PLC+4 Axis High Performance Control System Body Weight 60kg Transport Package Wooden Case Specification 670*720*650mm Trademark XHC Origin Dongguan, Guangdong, China Production Capacity 100sets/Month

Product Description

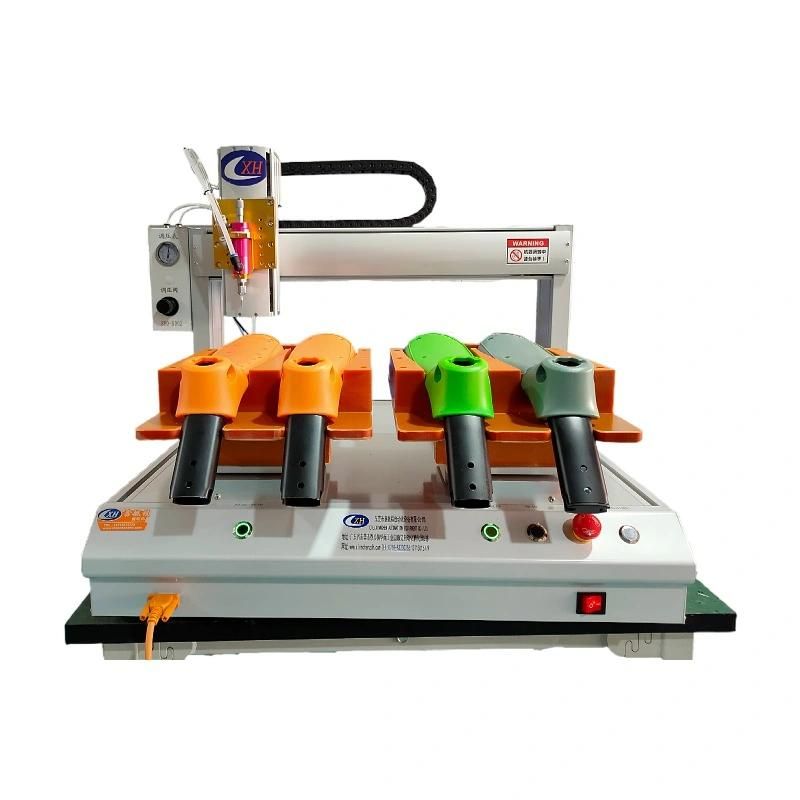

(1) Machine Description
Dispensing machine can replace manual operation to achieve mechanized production; single machine can be operated, simple and convenient, high speed and accurate; SD card storage mode, convenient for data management and file transfer between machines; can be equipped with a two-component pumping system to form a double Liquid automatic dispensing machine; can be equipped with accessories such as dispensing controller and dispensing valve to form floor-mounted dispensing equipment.

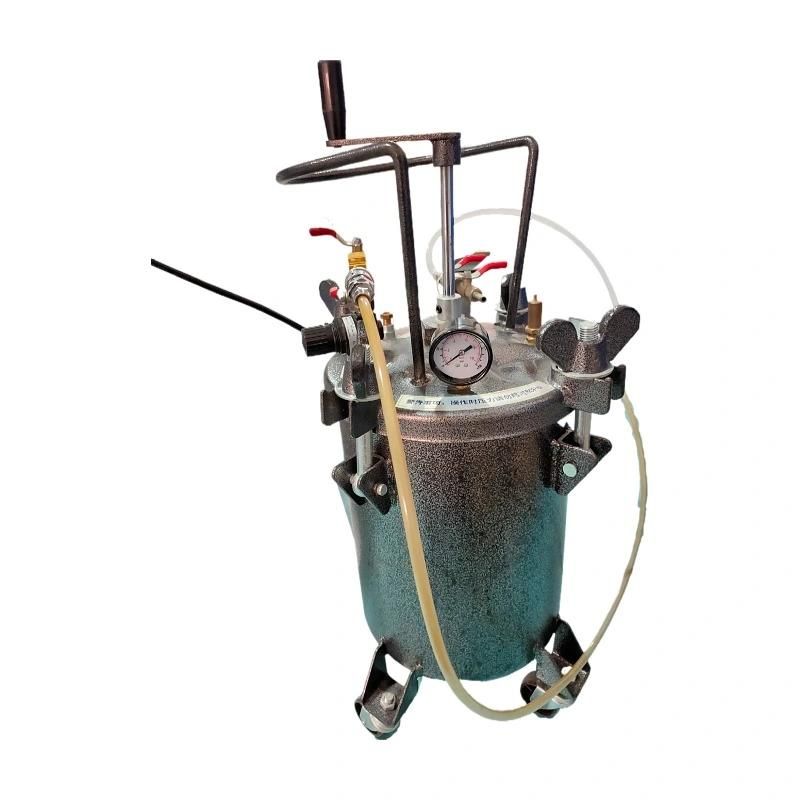

adhesive dissolving tank

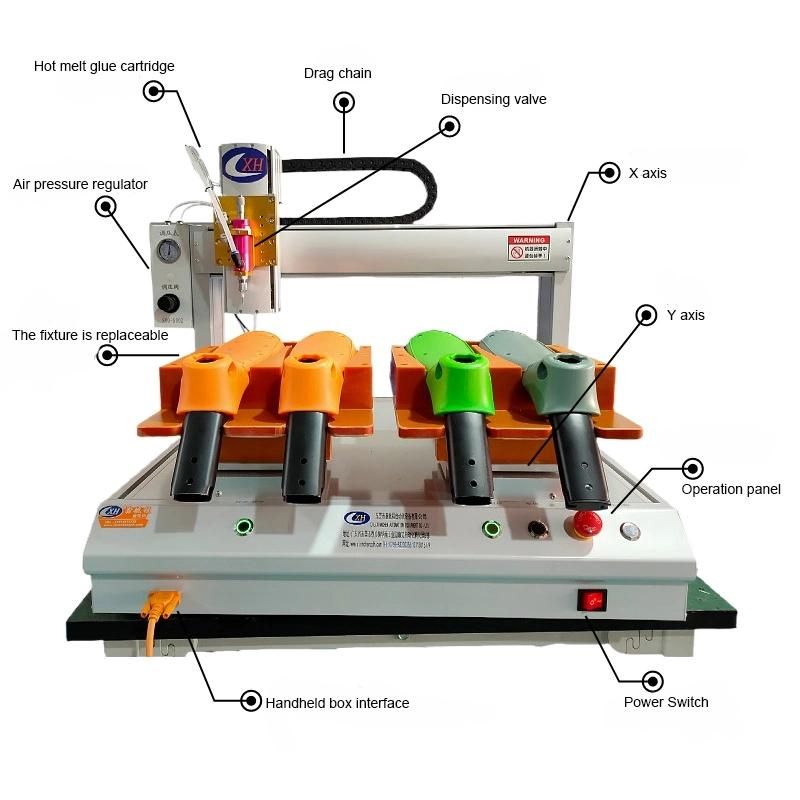

Handheld box interface
(2) Machine Specification:

(3)Machine Features:

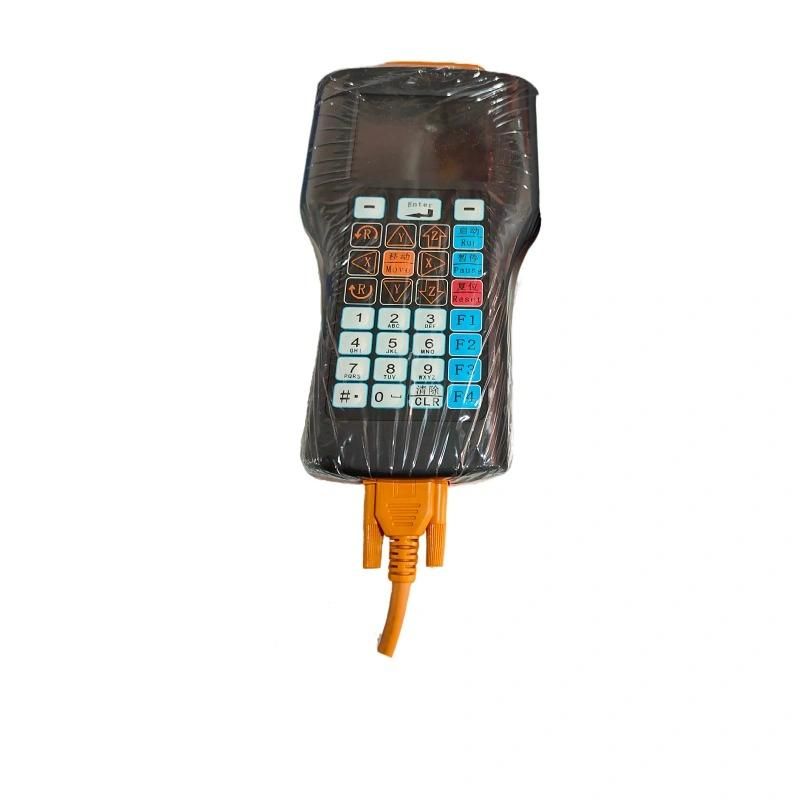

1. English handheld LCD screen operation, convenient programming, easy to learn and understand;
2. It has the functions of drawing points, lines, surfaces, arcs, circles. Irregular curve continuous interpolation, etc., realizing any 3D non-planar trajectory path
3. The glue volume, glue speed, glue dispensing time and glue stop time can all be parameterized
4. With a special dispensing controller, the amount of glue is stable, the glue is clean, and there is no leakage of glue
5. It can do quick dot, line and circle operations on the inside, outer wall, vertical surface, gap, and spherical surface of the product.
6. According to customer needs, fixtures, various glue guns, various dispensing controllers, heating and temperature control devices, etc. can be added.
7. Optional 1-4 head glue dispensing device, multiple glue guns can dispense glue at the same time to double the work efficiency.
8. The software has functions such as area array, translation and rotation calculations.


(4)Machine Application:

Automotive electronics, solar energy, PCB boards, consumer electronics, mobile phone buttons, printing, switches, connectors, computers, digital products, digital cameras, MP4, electronic toys, speakers, buzzers, electronic components, integrated circuits, circuit boards , LCD screens, relays, speakers, crystal components, LED lights, chassis bonding, optical lenses, mechanical parts sealing, semiconductor packaging, PCB electronic parts fixing and protection, battery box dispensing and sealing, liquid filling coating, hardware Coating and bonding of parts, optical disc drives, PC boards, LEDs, DVDs, medical equipment, printers, ink clips, etc.

(5) Suitable glue:

Silicone, EMI conductive glue, UV glue, AB glue, quick-drying glue, epoxy glue, sealant, red glue, EPOXY (black glue), white glue, silver glue, thermal paste, solder paste, transparent paint, screw fixation Agent, SILICON and so on.

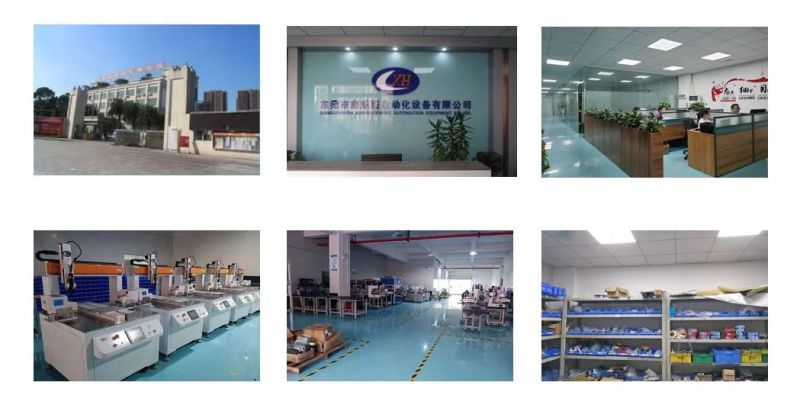

(6)About XHC:

Dongguan XinHangCheng Automation equipment Co., Ltd. is located in the Laobu town, Dongguan city, China. Specialized in producing and R&D of automatic screw locking machine, automatic tin soldering machine,automatic paint sparying machine, face mask machine and customized non-standard automation equipment for customer requirement. Our machines widely used in mobile phone, toy, hardware, computer, electronics, small household appliances and other industries.
