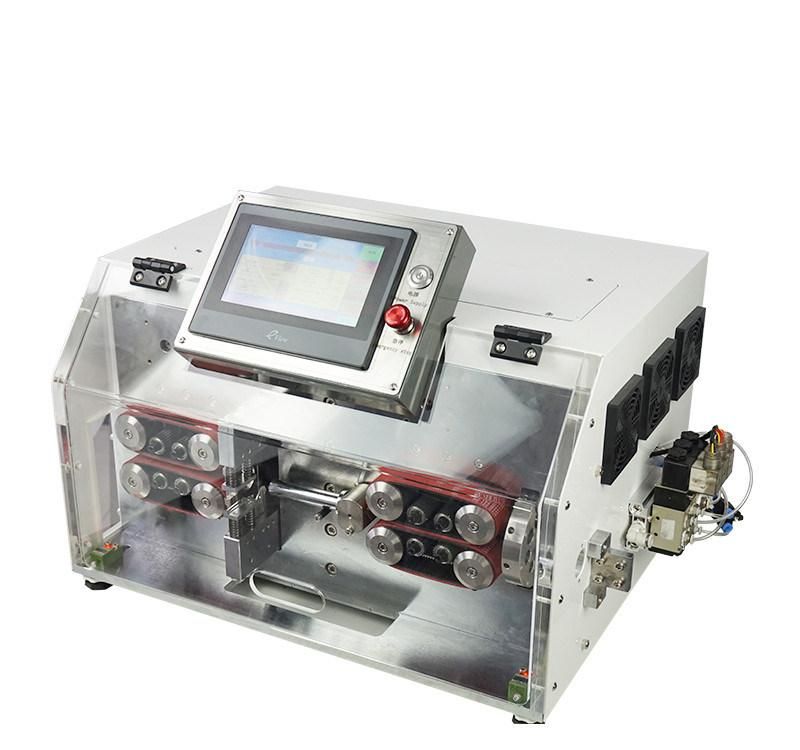

Multi-Core Cable Cutting and Stripping Machine

Suzhou Crown Electronic Technology Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Model：Wl-30ht

Base Info

  • Model NO.：WL-30HT
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Head Peeling：Max 120mm
  • Tail Peeling：Max 240mm
  • Wire Type：Sheathed Cables, PVC Cables, etc.
  • Stripping Range：6-30mm2
  • Cutting Length：1mm-99999.9mm
  • Cutting Tolerance：Within 0.002*L (L=Cutting Length)
  • Max Catheter Diameter：Φ16
  • Tool Material：High Quality Imported High Speed Steel
  • Capacity：2300PCS,H
  • Transport Package：Carton
  • Specification：cm
  • Trademark：Crown
  • Origin：China, Kunshan
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm2Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max catheter diameterΦ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.

Features:

This wire stripping and cutting machine is able to process of multi-core sheathed cables. It can strip outer skin and inner core skin simultaneously. The applicable wire sizes range from 6-30 sq mm.

  • Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)

  • Belt feeding wires, no embossing and scratches

  • Fully automatic cutting and peeling wires and cables

  • Being able to stripping outer skin and inner core skin of multi-core jacket cables simultaneously

  • Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm

  • Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240mm

Multi-Core Cable Cutting and Stripping MachineMulti-Core Cable Cutting and Stripping Machine
Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Multi-Core Cable Cutting and Stripping Machine
Related products:

Multi-Core Cable Cutting and Stripping Machine


FAQ:
 1.How to order?Please contact my Email for much more details, you can place order with us directly
or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.5.What can you provide for us?

Our service

We provide:

· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
