• Model NO.：N350
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Name：Wave Soldering
• Function：Tht Soldering
• Production Line：DIP Line
• Preheater：3
• Total Length of Preheater：1600mm
• Finger：Titanium Alloyed
• Finger Cleaner：Automatic
• Solder Pot Volume：320kgs
• Machine Control：PC+PLC
• Machine Dimension：3900*1250*1650mm
• Transport Package：Standard Export Vacuum and Plywood Package
• Specification：3900*1420*1750mm
• Trademark：JAGUAR
• Origin：Shenzhen, Guangdong, China
• Production Capacity：100pieces,Month
• Package size per unit product：390.00cm * 125.00cm * 165.00cm
• Gross weight per unit product：1300.000kg

Basic Info.

Model NO. N350 Warranty 12 Months Automatic Grade Automatic Installation Vertical Name Wave Soldering Function Tht Soldering Production Line DIP Line Preheater 3 Total Length of Preheater 1600mm Finger Titanium Alloyed Finger Cleaner Automatic Solder Pot Volume 320kgs Machine Control PC+PLC Machine Dimension 3900*1250*1650mm Transport Package Standard Export Vacuum and Plywood Package Specification 3900*1420*1750mm Trademark JAGUAR Origin Shenzhen, Guangdong, China Production Capacity 100pieces/Month

Packaging & Delivery

Package size per unit product 390.00cm * 125.00cm * 165.00cm Gross weight per unit product 1300.000kg

Product Description

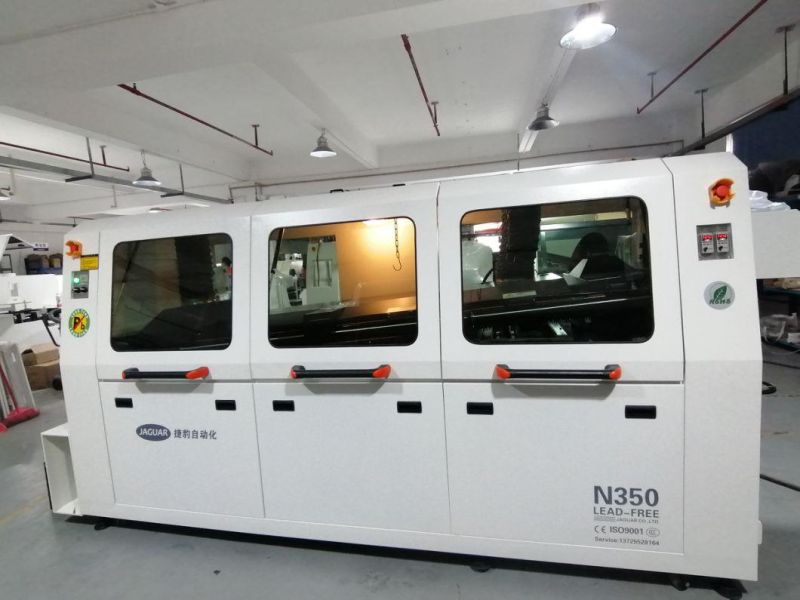

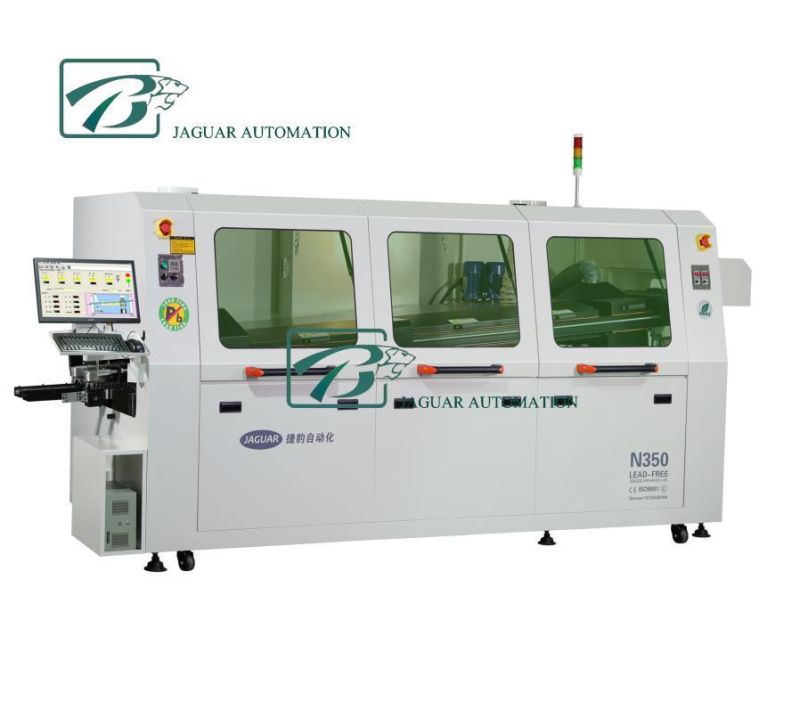

JAGUAR 3 Preheating Zone Lead-free Hot Air Wave Solder N350

• Stepper motor driven flux sprayer, spray range is selective, save more flux.
• Flux recovery container drawer design, easy to clean.
• Conveyor passage add 1 more width ajustable screw, total 3 screws, the conveyor transmission is more stable, no PCB falling risk.
• Solder pot's inpeller material is cast iron, never corrode
• Solder pot with oxidation jacket, low solder drossSpecification:

  Model No.	JAGUAR N350
  Number of pre-heaters	3
  Pre-heater passage	1600mm
  Body size	3300(L)*1420(W)*1750(H)
  Outside dimension	3900(L)*1420(W)*1750(H)
  Weight	1300KG
  Total/Steady Consumption	24KW/6-8KW
  Air Supply	0.5MPa
  Preheating Style	Hot air
  Preheater Consumption	220V 8KW
  Control  Method	PC +PLC
  Range of Temp. Set-point	Room Temperature---300ºC
  Preheating Time	About 10-15mins for Setting 150ºC
  Solder Application	Lead-free/
  Solder Pot Capacity	320KG
  Solder Pot Temperature	300ºC
  Solder Pot Consumption	380V 12KW
  Solder Temp. Control Method	PID&SSR
  Wave Motor Consumption	250Wx2pcs 220V
  Solder Melting	About 120mins for Setting 250ºC
  PCB  Width	50-350mm
  Conveyor Speed	300-2000mm/min
  Conveyor Direction	L→R (R→L optional)
  Solder Angel	4-7 º
  Flux Pressure	3-5 Bar
  Flux Capacity	6.5L

Introduction:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
