Manufacturing Equipment for Electrical & Electronic Product

Home > Product > Stripping Machine

Sheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24th
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-8030H
  • Display：7 Inch True Color Touch Screen
  • Function：Cutting and Stripping
  • Feeding Method：12-Wheel Belt Feeder
  • Cutting Length：0.01-999999.99mm
  • Wire Diameter：6-30mm2
  • Core Wires：2-8 Cores
  • Head Peeling：Head Peeling Max 120mm
  • Tail Peeling：Tail Peeling Max 240mm
  • Stripping Accuracy：0.01mm
  • Blade Material：Japanese Tungsten Steel,Swedish High Speed Steel
  • Capacity：2300PCS,H
  • Detect Function：Wire Presence Detection
  • Air Pressure：0.5-0.8MPa
  • Input Power：AC220V,50Hz
  • Power：1.6kw
  • Transport Package：Double-Layer Export Carton
  • Specification：530*530*400mm
  • Trademark：yuanhan
  • Origin：China
  • HS Code：8479819000
  • Production Capacity：L=100mm, 3000-7000PCS,H

Description

Sheathed cables, PVC cables, etc.Stripping range6-30mm²Cutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max guiding pipe dia.Φ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.

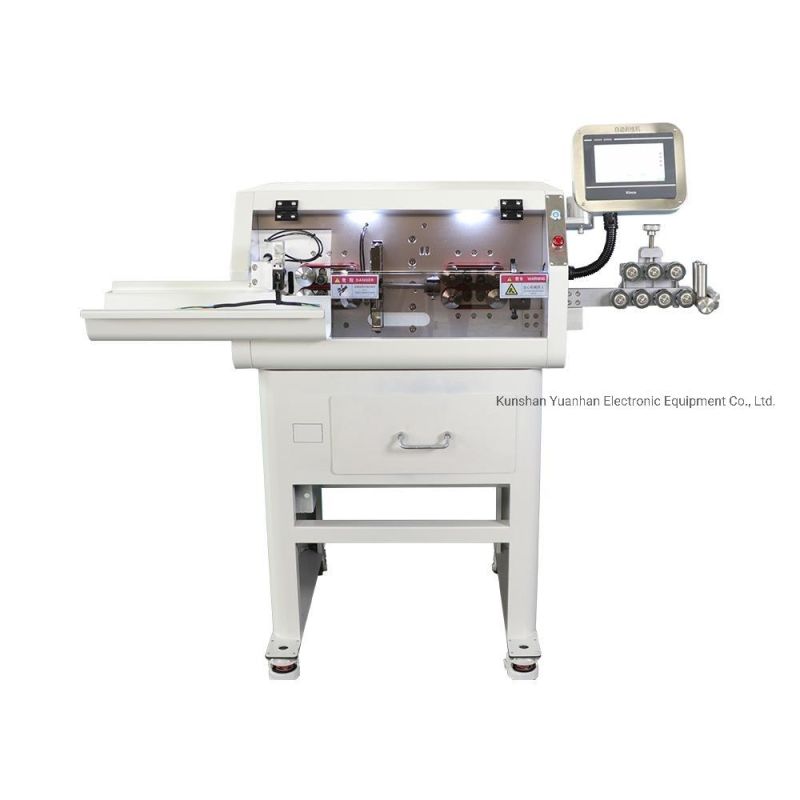

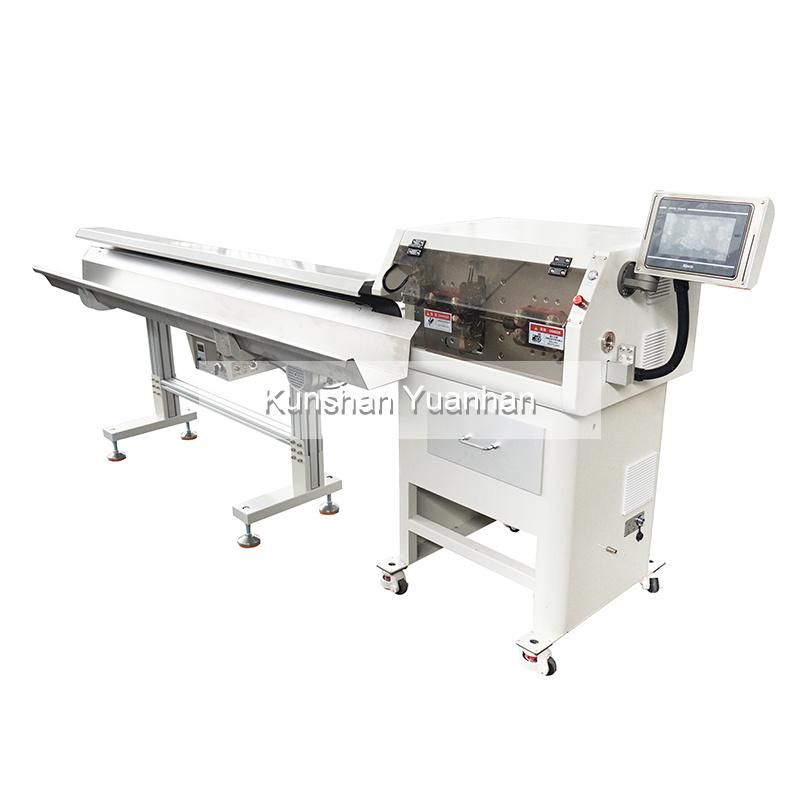

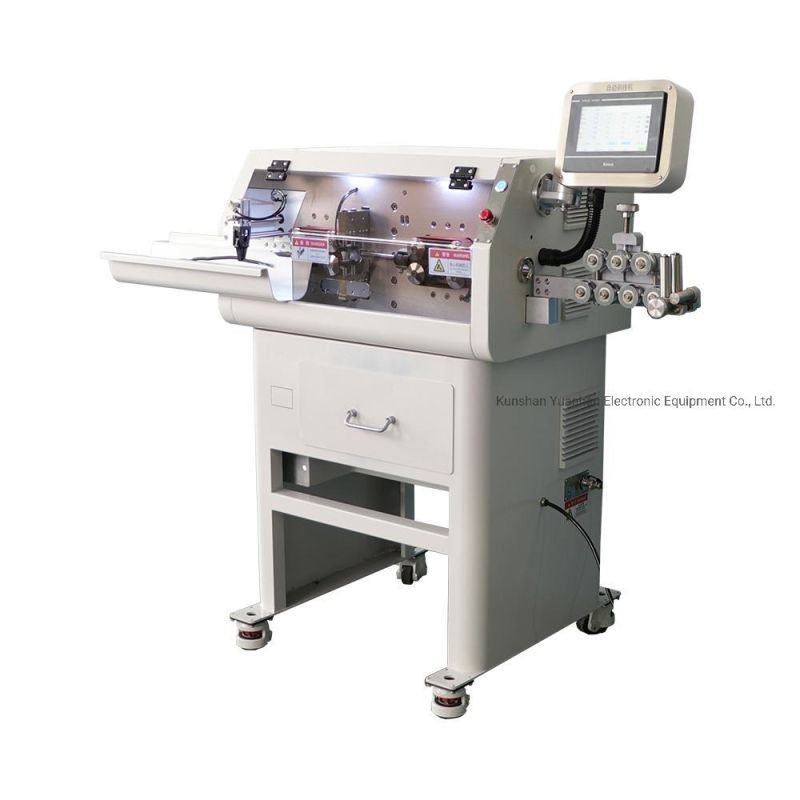

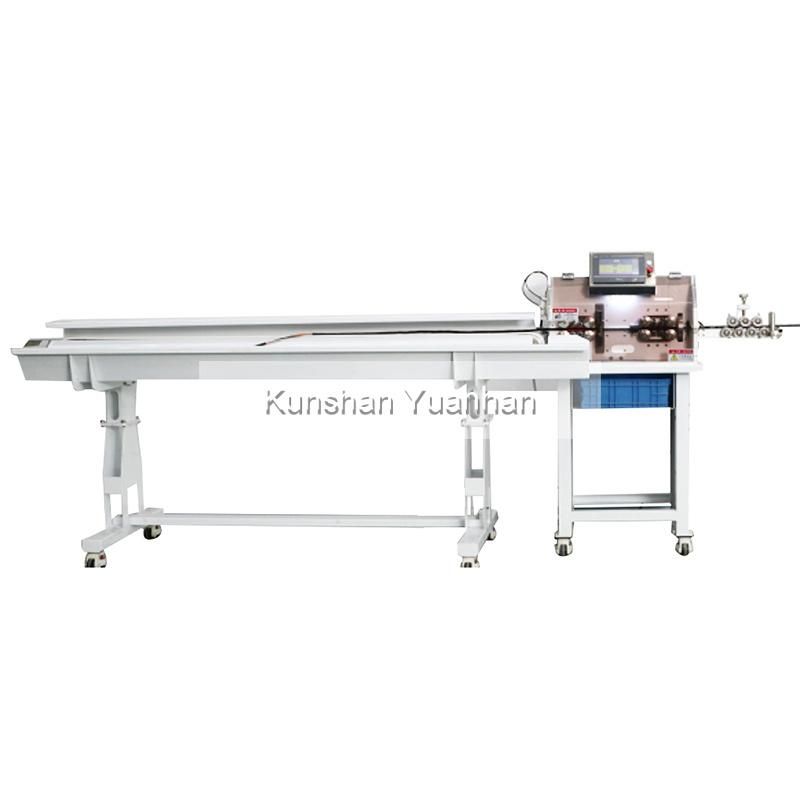

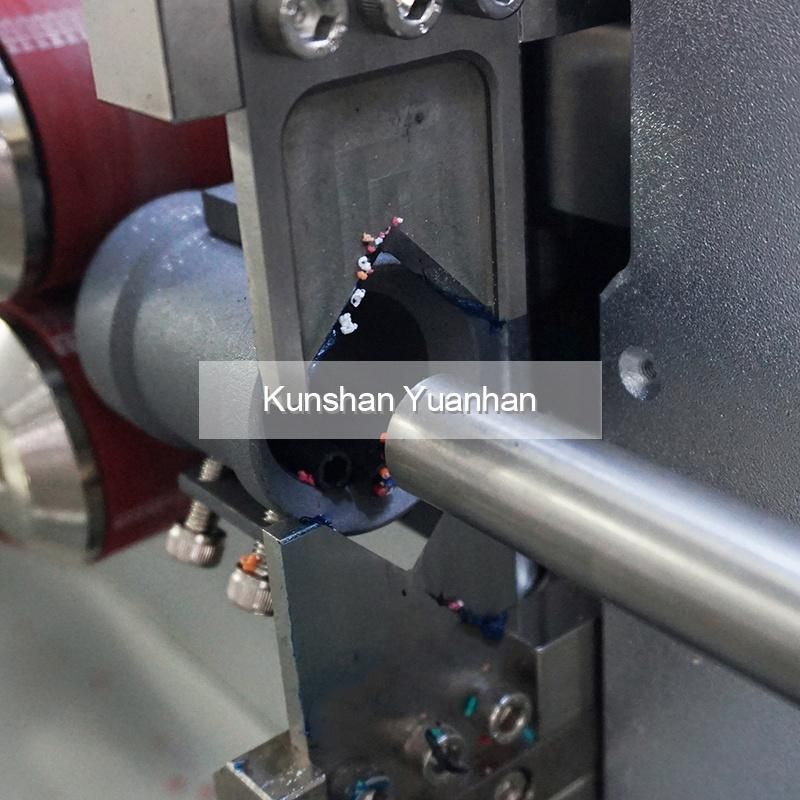

Product Pictures

Sheathed Cable Stripping Cutting Machine Inner Wire Stripper MachineSheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine
Sheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine

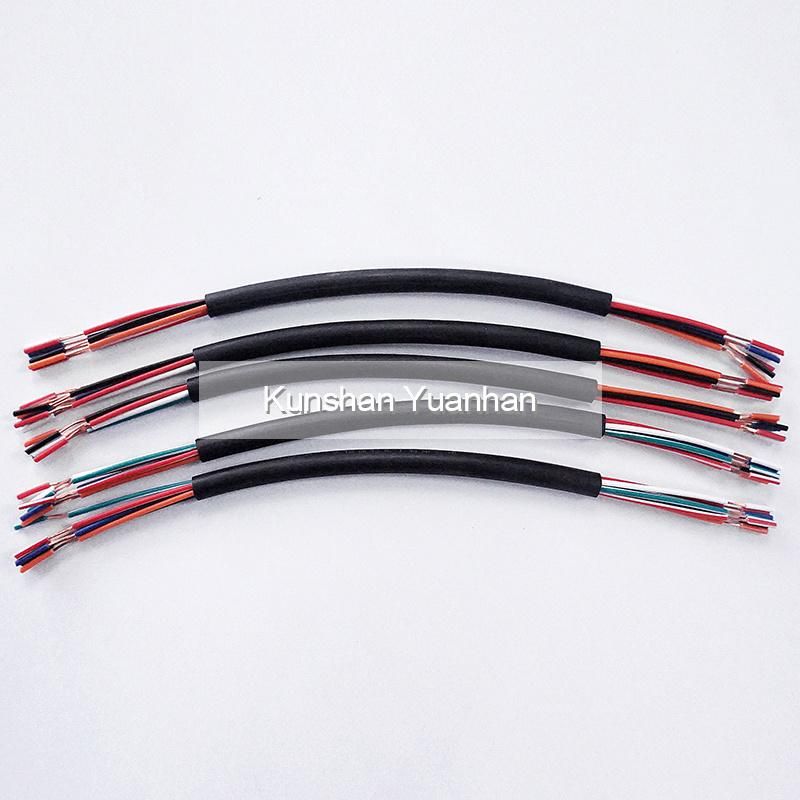

Sheathed Cable Stripping Cutting Machine Inner Wire Stripper MachineSheathed Cable Stripping Cutting Machine Inner Wire Stripper MachineSheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine 30 square sheathed wire cutting and stripping both inside and outside.  All-in-one machine, with manipulator + 2 meters of wire take-up frame Sheathed Cable Stripping Cutting Machine Inner Wire Stripper MachineSheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine

Company
Sheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine




Other Models

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Sheathed Cable Stripping Cutting Machine Inner Wire Stripper Machine




Packing & Shipping

For small and light products packed by cartons,for large and heavy products packed by wooden

for Sale Small Size Automatic Computer Electrical Electric Cable Stripper Machine Wire Cutting Stripping Machine



Any questions, please feel free to contact Bell Zang ! Thank you !
