Swing Arm Type Pau-off and Take-up Machine for Cable Winding Wire Cable Rewinding Machine

Alpha Technical Industrial Co., Ltd.
  • Automatic Grade：Automatic
  • Driven Type：Pneumatic
  • Warranty：12 Months
  • Demoulding：Automatic
  • Installation：Vertical
  • Mould Life：>1, 000, 000 Shots

Base Info

  • Product Name：Cable Take up Machine
  • Application：Mainly Act as P,O & T,U on Ccct,Vcv & Rubber Ccv
  • Machine Model：2500~5000mm
  • Control：PLC
  • Motor：DC
  • Cable Dia.：<180mm
  • Precision：1~2%
  • Take-up Speed：<80mm,Min
  • Applicable Wire-Coil Dia.：1250~5000mm
  • Applicable Outer Diameter：<180mm
  • Applicable Wire-Coil Width：950~2800mm
  • Machine Color：Customized
  • Transport Package：Seaworthy Package
  • Specification：Diameter 2500 ~ 5000
  • Trademark：Alpha
  • Origin：Wuxi, Jiangsu, China(Mainland)
  • HS Code：8477209000
  • Production Capacity：500 Sets Per Year

Description

ModelALSP, ALF1250/2500ALSP,ALP1600/3150ALSP, ALF2000/4200ALSP,ALF3150/5000Applicable wire-coil specificationPN1250-PN2500PN1600-PN3150PN2000-PN4200PN3150-PN5000Applicable cable outer diameter (mm)≤120≤160≤160≤180Applicable wire-coil diameter (mm)1250-25001600-31502000-42003150-5000Applicable wire-coil width (mm)950-19001180-23001500-25002300-2800Take-up speed (mm/min)≤80≤50≤35≤30Winding precision (%)1-21-21-21-2Loading capacity (T)15203055

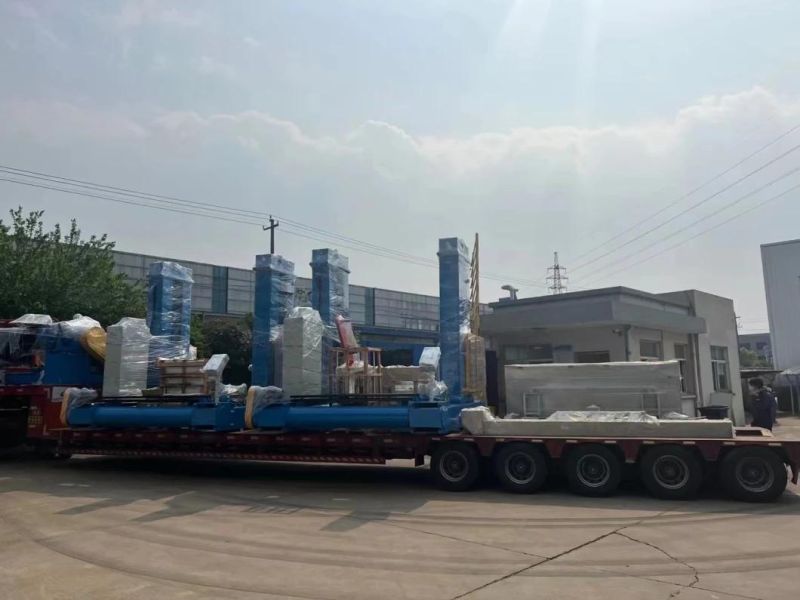

Machine package

Swing Arm Type Pau-off and Take-up Machine for Cable Winding Wire Cable Rewinding Machine

Main part brand
 Welcome to Inquiry!
